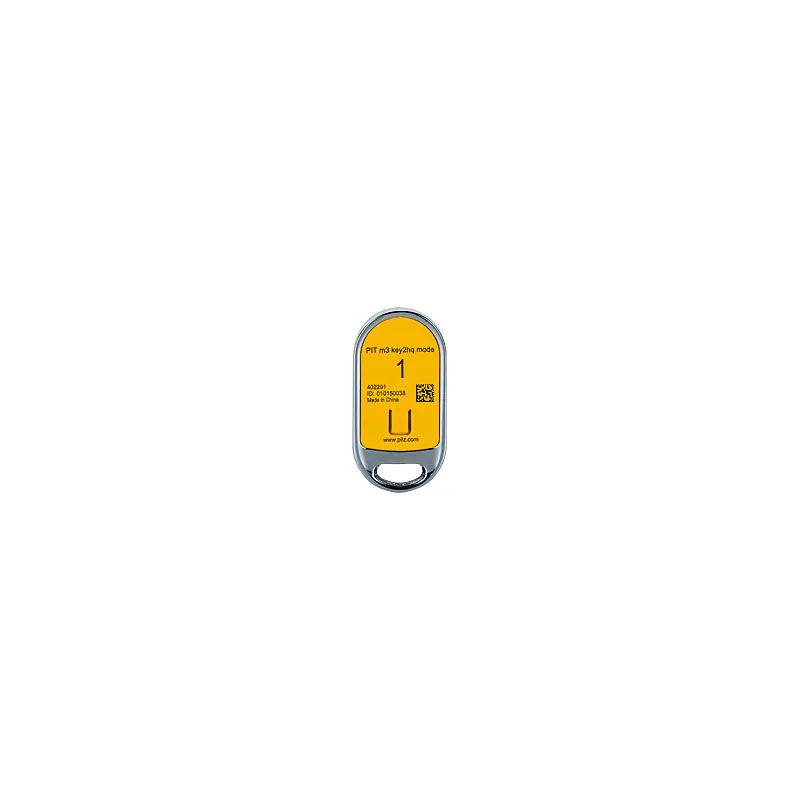

What is the Pilz 402291?
PITmode transponder key for electronic operating mode selector switch PIT m3.xp, material: Plastic actuatorwith metal frame, chrome plated, permission for OM1.
Specifications
General data
| Product ID (Pilz order number) | 402291 |
| Approval | CE, UKCA, TÜV |
| Sensor principle | Transponder |
| Transponder coding | 0x1111 (PILZ) |
| Lifecycle | Active (current Pilz product) |
Environmental data
| Ambient temperature | -20 … 60 °C |
Mechanical data
| Height dimension | 5 mm |
| Width dimension | 29.8 mm |
| Depth dimension | 57.3 mm |
| Net weight | 20 g |
| Gross weight | 24 g |
Transponder
| Transponder energy supply | Passive (battery-free) |
| Operating frequency | 125 kHz |
Environment
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27371292 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000017 |
| ETIM Reference Feature | EC002024 |
| UNSPSC 25 | 39111609 |
| GTIN | 4046548084504 |
| Volume | 0 dm3 |
| Harmonized System Code | 85389099 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
CAD & dimension drawings
402291: frequently asked questions
When can 402291 be shipped?
402291 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 402291 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 402291 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 402291, subject to availability and destination.
