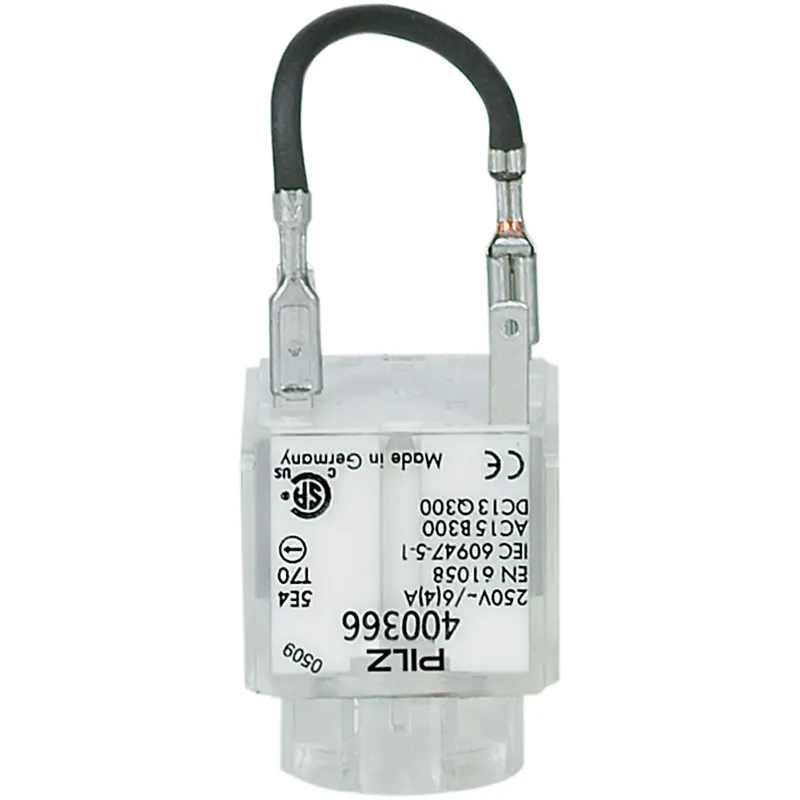

Pilz 400366
PIT esb6.16 safe contact block 1n/c 1n/o
- MPN
- 400366
- EAN
- 4046548061550
- Category
- PITestop - contact blocks
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pilz 400366?
PITestop, contact block, 1 N/C with monitoring, 1 N/O, flat connector.
Specifications
General data
| Product ID (Pilz order number) | 400366 |
| Approval | CE, UKCA, cCSAus, TÜV, EAC (Eurasian) |
| Self-monitored | yes |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Min. contact current | 1 |
Emergency stop
| Switch cap. E-STOP to standard | EN 60947-5-1 |
| Contact material E-STOP | AgNi |
Environmental data
| Ambient temperature | -30 … 70 °C |
| Pollution degree clear.&creep. | 3 |
Mechanical data
| Connection terminal | Flat connector |
| Height dimension | 52.6 mm |
| Width dimension | 22.2 mm |
| Depth dimension | 22.2 mm |
| Net weight | 9 g |
| Gross weight | 11 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | no |
| REACh compliance | Contains no SVHC substances |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27371302 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000017 |
| ETIM Reference Feature | EC000041 |
| UNSPSC 25 | 39122216 |
| GTIN | 4046548061550 |
| Volume | 0 dm3 |
| Harmonized System Code | 85365080 |
| Quantity per packaging unit | 1 |
