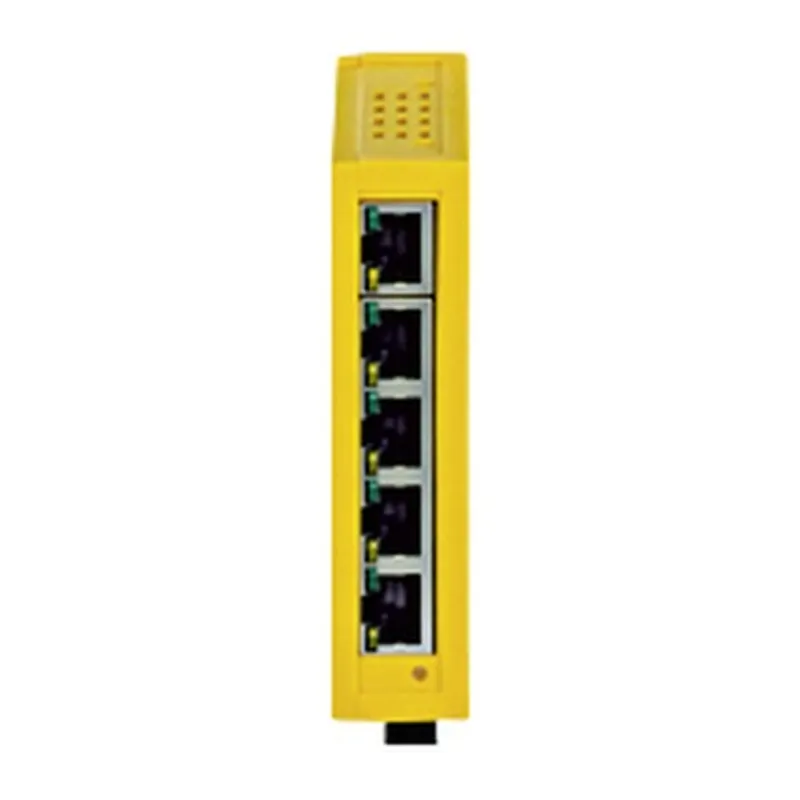

Pilz 380600 – PSSnet SLL 5T
Discontinued by Pilz — we can still source the original 380600 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Gateways |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.113 kg |
Shipping & availability
Can I still buy the 380600 now that it is discontinued?
Yes. Pilz has discontinued the 380600, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can 380600 be shipped?
380600 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 380600 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 380600 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 380600, subject to availability and destination.
Industrial Ethernet Switch, unmanaged 5 x standard 10/100 BASE TX, RJ45 ports.
Lifecycle: Pilz has discontinued this product and no longer manufactures it. PartnerPLC sources discontinued Pilz parts — request a quote for availability, or ask us about the current Pilz successor.
Specifications
General data
| Product ID (Pilz order number) | 380600 |
| Approval | CE, UKCA, cULus Listed |
| Lifecycle | Discontinued (no longer manufactured by Pilz) |
Electrical data
| Supply voltage (V) | 10, 32 |
| Type of supply voltage U1 | DC |
Environmental data
| Ambient temperature | 0 … 60 °C |
| Humidity rating | 95 % r. h. at 40 °C |
| EMC to standard ... | EN 55022 Class A, EN 61000-4-4, FCC CFR47 Part 15 Class A, EN 61000-4-5, EN 61000-4-6, EN 61000-4-2, EN 61000-4-3 |
| Vibration to standard ... | EN 60068-2-6 |
| Acc. shock to standard1 | 15g |
| Pollution degree clear.&creep. | 2 |
| Protection type, housing | IP30 |
Mechanical data
| Height dimension | 114 mm |
| Width dimension | 25 mm |
| Depth dimension | 79 mm |
| Net weight | 113 g |
| Gross weight | 218 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | no |
| REACh compliance | Contains no SVHC substances |
| WEEE classification (08/2018) | 6 small IT-/communic. device |
Commercial data
| ECLASS version | ECLASS-9.1 |
| ECLASS Reference Feature | 19170106 |
| ETIM Version | ETIM-7.0 |
| ETIM Reference Group | EG000037 |
| ETIM Reference Feature | EC000734 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
| Installation Manual: PSSnet SLL Installation | PDF · 0.9 MB |
CAD & dimension drawings
| Electrical CAD Data: EPLAN P8 Macro | EDZ |
Certificates (4)
| Certificate (UL) NRAQ7.E183931 | PDF · 0.1 MB |
| Certificate (UL) NRAQ.E183931 | PDF · 0.1 MB |
| EU/EC-Declaration of Conformity | |
| UK Declaration of Conformity (UKCA) | PDF · 0.3 MB |
