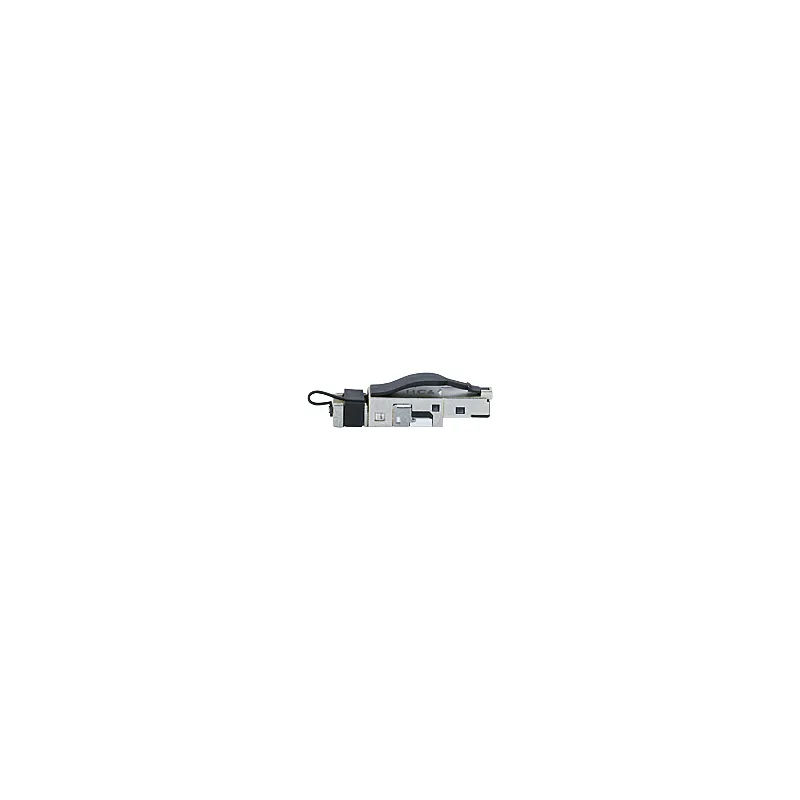

Pilz 380401
RJ45 Connector
- MPN
- 380401
- EAN
- 4046548055733
- Category
- Plug-in connectors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pilz 380401?
RJ45 plug-in connector, straight, IP20, 8-pin, Cat6a, IDC connection,AWG 22, cable diameter: 5.5-8.5mm
Specifications
General data
| Product ID (Pilz order number) | 380401 |
| Approval | - |
| Lifecycle | Active (current Pilz product) |
Environmental data
| Ambient temperature | -30 … 90 °C |
Mechanical data
| Connector type 1 | 8-pin RJ45 male connector |
| Shape of connector type 1 | straight |
| Category of connector X1 | Cat 6a |
| Contact surfaces material 1 | Ni, Au gal. |
| Material of pins | Cu alloy |
| Material shield surface K1 | Ni |
| Housing colour | Silver |
| Max. outside diameter cable K1 | 5.5, 8.5 |
| Max. cable cross section K1 | 0.355mm² |
| Max. cable cross sect. AWG K1 | 22 |
| Shielding K1 | yes |
| Approvals for connector 1 | UL1863 |
| Housing material | GD-Zn |
| Net weight | 12 g |
| Gross weight | 16 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | no |
| REACh compliance | Contains no SVHC substances |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27440304 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000047 |
| ETIM Reference Feature | EC000516 |
| UNSPSC 25 | 26121603 |
| GTIN | 4046548055733 |
| Volume | 0 dm3 |
| Harmonized System Code | 85366990 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
Certificates (1)
380401: frequently asked questions
When can 380401 be shipped?
380401 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 380401 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 380401 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 380401, subject to availability and destination.
