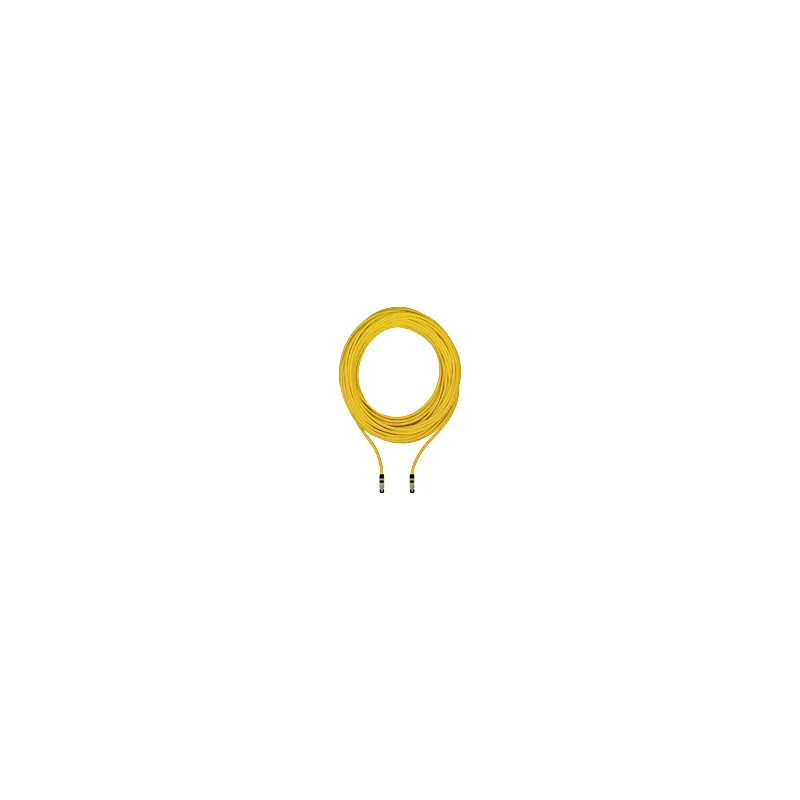

Pilz 380009
SN CAB RJ45s RJ45s, 10m
- MPN
- 380009
- EAN
- 4046548053739
- Category
- Pre-assembled cable
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pilz 380009?
Network cable, SafetyNET p, Cat5e, PUR, yellow RAL1003, shielded, 4- pin, connector straight RJ45 (IP20), on connector straight RJ45 (IP20), cable length: 10m
Specifications
General data
| Product ID (Pilz order number) | 380009 |
| Approval | CE, UKCA |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Type of rated voltage U1 | DC |
| Rated current | 0.5 |
| Typ. characteristic imped. K1 | 100 Ohm |
Environmental data
| Ambient temperature | -40 … 70 °C |
Mechanical data
| Connector type 1 | 4-pin RJ45 male connector |
| Shape of connector type 1 | straight |
| Connector type 2 | 4-pin RJ45 male connector |
| Shape of connector type 2 | straight |
| Contact surfaces material 1 | Au |
| Contact surfaces material 2 | Au |
| Material of pins | CuZn |
| Cable material K1 | Cu |
| Insulation material cable K1 | PE |
| Length cable | 10 |
| Tolerance of cable length K1 | + 0.110m |
| Material shield surface K1 | Sn |
| Category of cable K1 | Cat5e |
| Colour cable insulation 1 | Signal yellow RAL1003 |
| Housing colour | Signal yellow RAL1003 |
| Material of cable insulation 1 | PUR |
| Trailing capability of cable 1 | no |
| Bend radius (when laying) K1 | 5 x Ø |
| Max. outside diameter cable K1 | 6.9 |
| Conductor cross section | 0.35 |
| Cable cross section AWG K1 | 22 |
| Stranding K1 | Star quad |
| Shielding K1 | yes |
| Type of shielding K1 | Wire mesh |
| Number of conductors | 4 |
| Approvals for cable K1 | CSA AWM I/II A/B, UL AWM-Style 20236 |
| Halogen-free | yes |
| Oil resistance | resistant |
| Flame resistance | IEC 60332-1-2, CSA FT-1, UL 1581 |
| Housing material | PC |
| Height dimension | 18.2 mm |
| Width dimension | 14 mm |
| Depth dimension | 50.5 mm |
| Net weight | 633 g |
| Gross weight | 643 g |
Environment
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27060307 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000001 |
| ETIM Reference Feature | EC003249 |
| UNSPSC 25 | 26121603 |
| GTIN | 4046548053739 |
| Volume | 0 dm3 |
| Harmonized System Code | 85444210 |
| Quantity per packaging unit | 1 |
