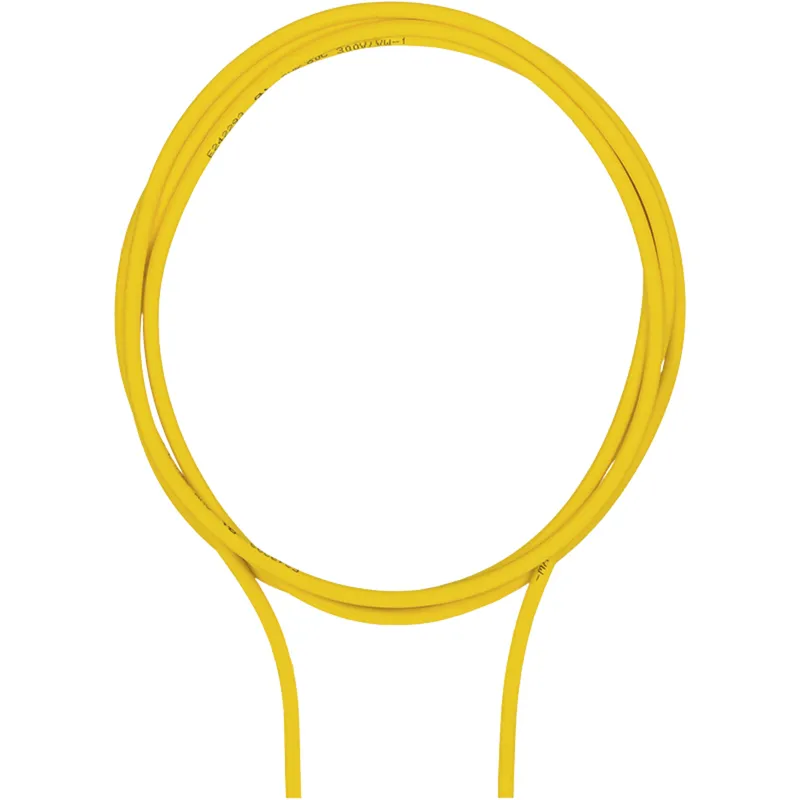

Pilz 380000
SafetyNET p Cable per mtr
- MPN
- 380000
- EAN
- 4046548054071
- Category
- Cable by the metre
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pilz 380000?
By the metre, Cat5e (100mBit/s), PUR, yellow RAL1003, 2x2x0.35, colour single wires: White, yellow, blue, orange
Specifications
General data
| Product ID (Pilz order number) | 380000 |
| Approval | CE, UKCA, cURus |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Type of rated voltage U1 | DC |
| Rated current | 0.5 |
| Insulation resistance cable K1 | 500 MOhm x km |
| Typ. characteristic imped. K1 | 100 Ohm |
Environmental data
| Ambient temperature | -40 … 70 °C |
Mechanical data
| Cable material K1 | Cu |
| Insulation material cable K1 | PE |
| Material shield surface K1 | Sn |
| Category of cable K1 | Cat5e |
| Colour cable insulation 1 | Signal yellow RAL1003 |
| Material of cable insulation 1 | PUR |
| Trailing capability of cable 1 | no |
| Bend radius (when laying) K1 | 5 x Ø |
| Max. outside diameter cable K1 | 6.9 |
| Conductor cross section | 0.35 |
| Cable cross section AWG K1 | 22 |
| Stranding K1 | Star quad |
| Shielding K1 | yes |
| Type of shielding K1 | Wire mesh |
| Number of conductors | 4 |
| Approvals for cable K1 | CSA AWM I/II A/B, UL AWM-Style 20236 |
| Halogen-free | yes |
| Oil resistance | resistant |
| Flame resistance | IEC 60332-1-2, CSA FT-1, UL 1581 |
| Net weight | 70 g |
| Gross weight | 70 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | no |
| REACh compliance | Contains no SVHC substances |
| WEEE classification (08/2018) | 0 not relevant |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27060307 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000001 |
| ETIM Reference Feature | EC003249 |
| UNSPSC 25 | 26121603 |
| GTIN | 4046548054071 |
| Volume | 0 dm3 |
| Harmonized System Code | 85444995 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
380000: frequently asked questions
When can 380000 be shipped?
380000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 380000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 380000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 380000, subject to availability and destination.
