Pilz 328831
PSS u2 T 9 SD (1 pc.)
- MPN
- 328831
- EAN
- 4046548086928
- Category
- PSSuniversal 2 - Accessories
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

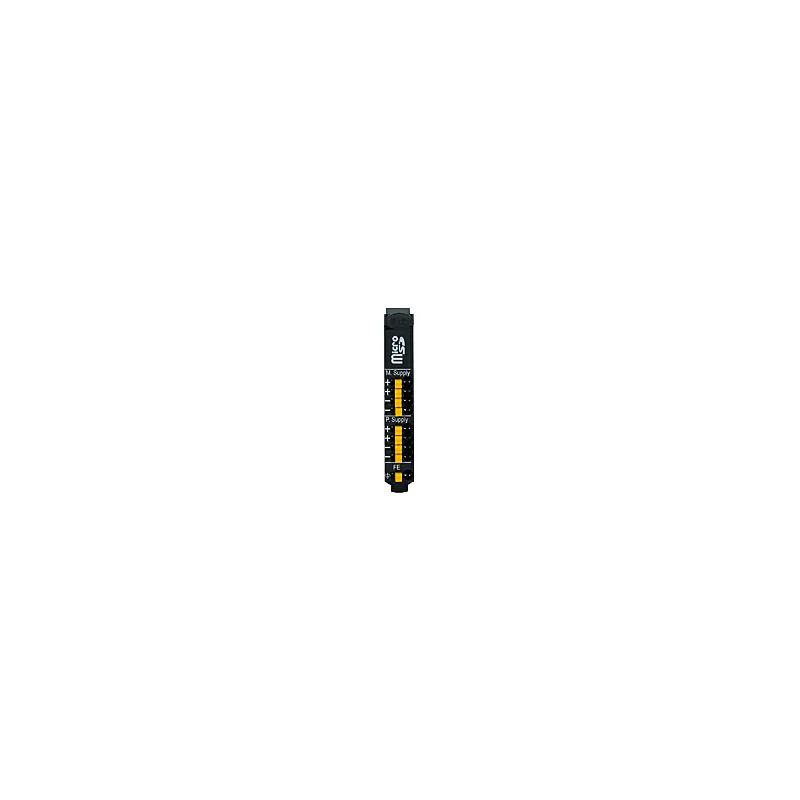

What is the Pilz 328831?
PSS u2, accessories, terminal block, for head modules, 9-pin, spring-loaded connection, with slot for microSD memory card, PU 1 piece.
Specifications
General data
| Product ID (Pilz order number) | 328831 |
| Approval | cURus, SEV |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Rated current | 12 |
Environmental data
| Ambient temperature | -40 … 105 °C |
Mechanical data
| Connector type 1 | 9-pin spring-loaded terminal |
| Contact surfaces material 1 | Au |
| Housing colour | Black grey RAL 7021 |
| Conductor cross section | 0.15, 1.5 |
| Cable cross section AWG K1 | 26-14 |
| Net weight | 16 g |
| Gross weight | 19 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | no |
| RoHS except.s acc. to direct. | 7a |
| REACh compliance | contains min. 1 SVHC-substance |
| REACh included substances | Lead |
| %-part of the pollutant | > 0,1 |
| CAS No. | 7439-92-1 |
| WEEE classification (08/2018) | 0 not relevant |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27242691 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000024 |
| ETIM Reference Feature | EC002584 |
| UNSPSC 25 | 39122331 |
| GTIN | 4046548086928 |
| Volume | 0.051 dm3 |
| Harmonized System Code | 85369095 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
328831: frequently asked questions
When can 328831 be shipped?
328831 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 328831 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 328831 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 328831, subject to availability and destination.
