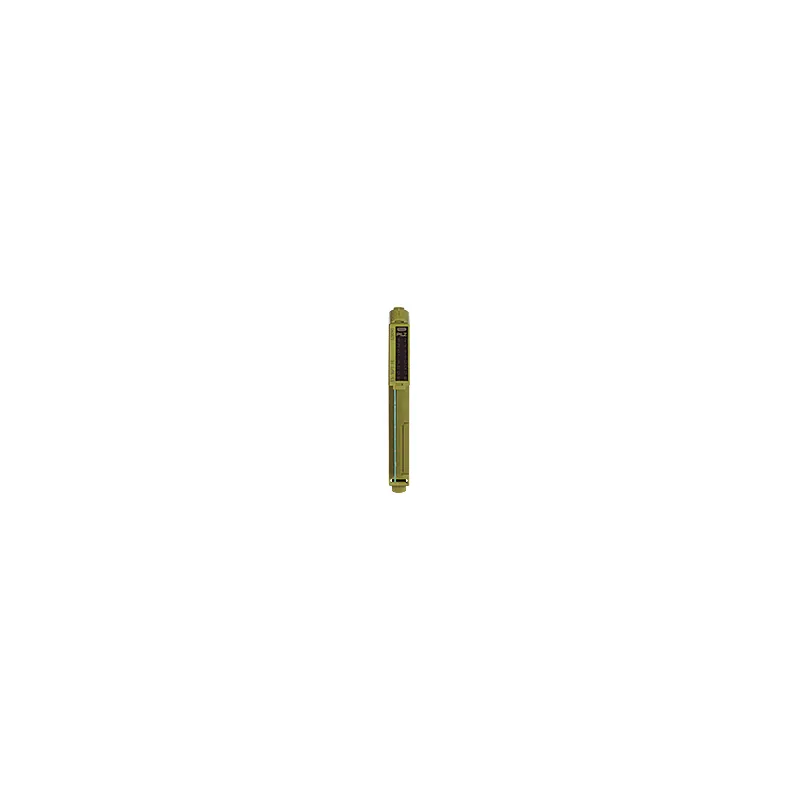

Pilz 328091
PSS u2 ES 16PT FE
- MPN
- 328091
- EAN
- 4046548072006
- Category
- PSSuniversal 2 - Patch terminals
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pilz 328091?
PSS u2, electronic module, standard, voltage distribution, 16 outputs, connection functional earth, 1-row, terminal block PSS u2 T 16 required (not supplied with the system).
Specifications
General data
| Product ID (Pilz order number) | 328091 |
| Approval | CE, UKCA, cULus Listed |
| Application range | Standard |
| Lifecycle | Active (current Pilz product) |
Environmental data
| Climatic suitability to ... | EN 60068-2-30, EN 60068-2-2, EN 60068-2-1, EN IEC 60068-2-14, EN 60068-2-78 |
| Ambient temperature standard | EN 60068-2-14 |
| Ambient temperature | -25 °C |
| Storage temperature standard | EN 60068-2-1/-2 |
| Climatic suitability standard | EN 60068-2-78 |
| Humidity rating | 95 % r. F. bei 40 °C |
| Condensation permitted? | unzulässig |
| Perm. operating height ASL | 5000 m |
| EMC to standard ... | EN 12015, EN 12016, EN IEC 61000-6-2, EN 298, EN 61000-6-7, EN IEC 61000-6-4, EN 61131-2 (Zone B), EN 50156-1 |
| Vibration to standard ... | EN 60068-2-6 |
| Acc. shock to standard1 | 150 m/s² |
| Acc. shock to standard2 | 100 m/s² |
| Clearance & creepage dist. to | EN 61131-2 |
| Overvoltage category | II |
| Pollution degree clear.&creep. | 2 |
| Protection type standard | EN 60529 |
| Protection type, housing | IP20 |
| Terminal protection type | IP20 |
Mechanical data
| Housing material | PC |
| Terminal style | steckbar |
| Height dimension | 110.8 mm |
| Width dimension | 12.5 mm |
| Depth dimension | 72.5 mm |
| Net weight | 29 g |
| Gross weight | 38 g |
Environment
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27242610 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000024 |
| ETIM Reference Feature | EC001600 |
| UNSPSC 25 | 39122331 |
| GTIN | 4046548072006 |
| Volume | 0.122 dm3 |
| Harmonized System Code | 85369095 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
328091: frequently asked questions
When can 328091 be shipped?
328091 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 328091 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 328091 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 328091, subject to availability and destination.
