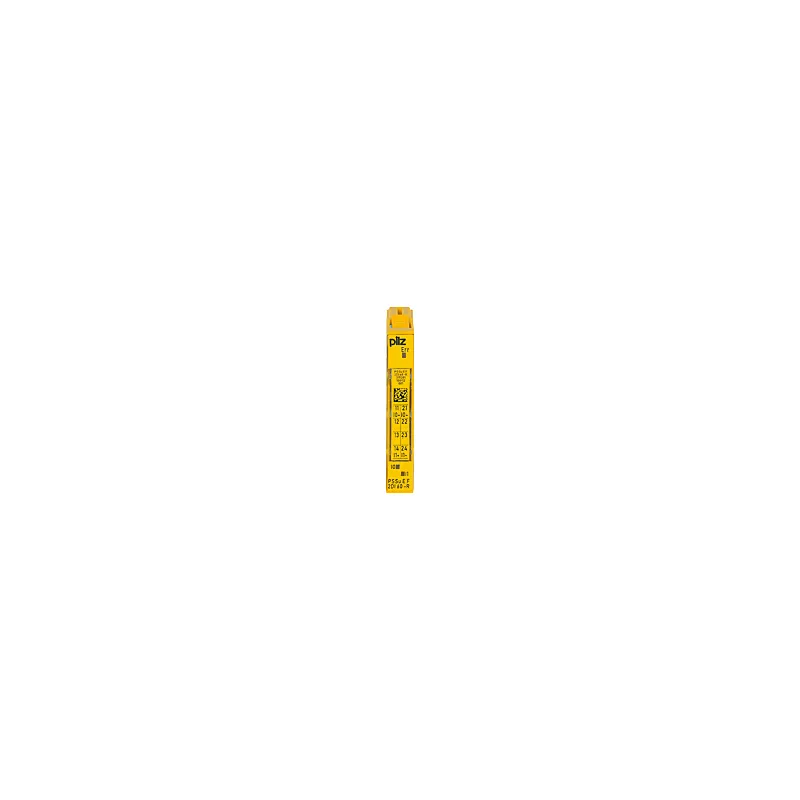

Pilz 315201
PSSu E F 2DI 60-R
- MPN
- 315201
- EAN
- 4046548067781
- Category
- PSSuniversal - safe I/O modules
Price and lead time confirmed within 1 business day
Discontinued by Pilz — we can still source the original 315201 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pilz 315201?
PSSu, electronic module, failsafe, digital inputs and outputs, 2 inputs 60 V, for railway applications.
Specifications
General data
| Product ID (Pilz order number) | 315201 |
| Approval | CE, UKCA, cULus Listed, EAC (Eurasian), TÜV |
| Application range | Failsafe |
| Lifecycle | End of life (Pilz is phasing this product out) |
Inputs
| Number of digital inputs | 2 |
| DC voltage at input | 24 - 72 V |
| Type of input voltage U1 | DC |
| Potential isolation inputs | yes |
Environmental data
| App. site standard1 railway | EN 50125-3 |
| App. site to standard1 railway | Track area (1m - 3m) |
| App. site standard2 railway | EN 61373 |
| App. site to standard2 railway | Category 1, Class A + B |
| Climatic suitability to ... | EN 50125-1, EN 60068-2-2, EN 60068-2-1, EN 50155, EN 60068-2-14, EN 50125-3 |
| Ambient temperature standard | EN 50155 |
| Ambient temperature | -40 °C |
| Standard 2 for ambient temp. | EN 50125-1 |
| Ambient temp. to standard 2 | -40 ... +70 °C |
| Standard 3 for ambient temp. | EN 50125-3 |
| Ambient temp. to standard 3 | -40 ... +70 °C |
| Storage temperature standard | EN 60068-2-1/-2 |
| Climatic suitability standard | EN 60068-2-78 |
| Humidity rating | 93 % r. F. bei 40 °C |
| Condensation permitted? | kurzzeitig |
| Perm. operating height ASL | 2000 m |
| EMC to standard ... | EN 61000-4-4, EN 61000-6-2, EN 61000-4-5, EN 61000-4-6, EN 61000-6-4, EN 61000-4-2, EN 61000-4-3 |
| Vibration to standard ... | EN 50125-3 |
| Broad band noise to | EN 61373 |
| Standard1 b/band noise, rail | EN 61373 |
| Freq. broadband noise, rail | 5 ... 150 Hz |
| Accel. broadband noise, rail | 0.79 g RMS |
| Acc. shock to standard1 | 2g |
| Acc. shock to standard2 | 5g |
| Clearance & creepage dist. to | EN 50124-1 |
| Overvoltage category | OV2 |
| Pollution degree clear.&creep. | PD2 |
| Protection type standard | EN 60529 |
| Protection type, housing | IP20 |
Mechanical data
| Housing material lower section | PC |
| Housing material front plate | PC |
| Housing material code | PA |
| Terminal style | plug-in |
| Height dimension | 76 mm |
| Width dimension | 12.6 mm |
| Depth dimension | 60.2 mm |
| Net weight | 45 g |
| Gross weight | 45 g |
| Name of coding element | N |
| Colour of coding element | Yellow |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | no |
| REACh compliance | Contains no SVHC substances |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27242604 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000024 |
| ETIM Reference Feature | EC001599 |
| UNSPSC 25 | 39122331 |
| GTIN | 4046548067781 |
| Volume | 0.049 dm3 |
| Harmonized System Code | 85389091 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
315201: frequently asked questions
Can I still buy the 315201 now that it is discontinued?
Yes. Pilz has discontinued the 315201, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can 315201 be shipped?
315201 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 315201 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 315201 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 315201, subject to availability and destination.
