Pilz 315070
PSSu H PLC1 FS SN SD-R
- MPN
- 315070
- EAN
- 4046548067743
- Category
- PSSuniversal - PLC Controller
Price and lead time confirmed within 1 business day
Discontinued by Pilz — we can still source the original 315070 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pilz 315070?

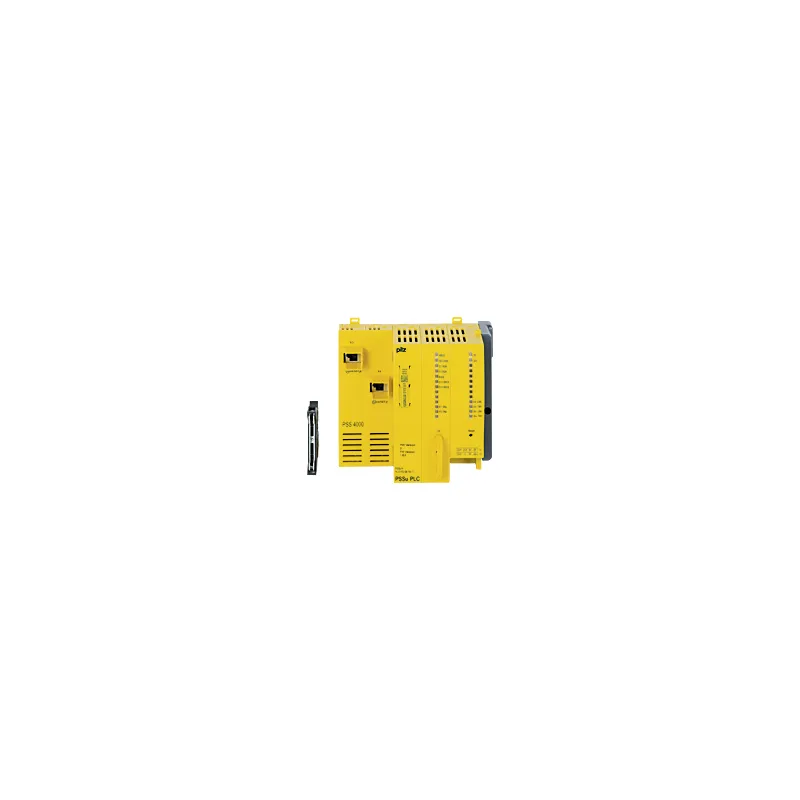

PSSu, head module, control system PSSu PLC, failsafe and standard, PL e, SIL CL 3, 2 RJ45 ports, SafetyNET p RTFN, Modbus/TCP, Raw UDP, Raw TCP, EtherNet/IP adapter, PROFINET IO DEVICE, SD card, for railway applications.
Specifications
General data
| Product ID (Pilz order number) | 315070 |
| Approval | CE, UKCA, TÜV, EAC (Eurasian) |
| Application range | Standard/failsafe |
| Lifecycle | End of life (Pilz is phasing this product out) |
Electrical data
| Purpose of U1 | Module supply |
| Supply voltage (V) | 24 |
| Type of supply voltage U1 | DC |
| Power consumption DC | 16 |
| Purpose of U2 | Periphery supply |
| Supply voltage U2 | 24 |
| Type of supply voltage U2 | DC |
| Tolerance of U2 | -30 %/+25 % |
| Purpose of UINT1 | int. system voltage |
| Type of UINT1 | DC |
| Tolerance of UINT1 | -2 %/+3 % |
| Max. curr. contin. oper. UINT1 | 2 |
| UINT1 short circuit proof | Yes |
Programming
| IEC 61131 programming | Yes |
| Multi programming | Yes |
| Non-volatile variables | Yes |
CPU
| User memory total | 4 MB |
| Time deviation | +/- 10s/day |
| RAM | 128 MB |
| NV user memory FS section | 382 kB |
Removable storage media
| Plug-in memory | SD card |
SafetyNET p interface
| Connector type Safetynet i/f | RJ45 |
| Safetynet transmission rate | 100 MBit/s |
| Setting SafetyNet trans.rate | Automatic |
| SafetyNET p cycle time | 2 ... 60 000 ms |
PROFINET interface
| Settable trans.rate PROFINET | 100 MBit/s |
| Trans. rate setting PROFINET | Automatic |
| PROFINET certification | PNO |
| PROFINET manufacturer ID | 092Fh |
| Connector type PROFINET i/f | RJ45 |
| PROFINET type | Slave |
| Cycle time PROFINET IO DEVICE | 4 ... 512 ms |
Modbus/TCP
| MODBUS cycle time | 2 ... 2 000 000 ms |
EtherNet/IP Adapter
| Cycle time EtherNet/IP | 4...655 000 ms |
| EDS file EtherNet/IP | 00B5000C00010100.eds |
| Device type EtherNet/IP | Adapter |
| Supported EtherNet/IP RPI | 4...655 000 ms |
Raw UDP
| RAW UDP cycle time | 2 ... 2 000 000 ms |
Environmental data
| App. site standard1 railway | EN 50125-3 |
| App. site to standard1 railway | Track area (1m - 3m) |
| App. site standard2 railway | EN 61373 |
| App. site to standard2 railway | Category 1, Class A + B |
| Climatic suitability to ... | EN 50125-1, EN 60068-2-2, EN 60068-2-1, EN 50155, EN 60068-2-14, EN 50125-3 |
| Ambient temperature standard | EN 50155 |
| Ambient temperature | -40 … 70 °C |
| Standard 2 for ambient temp. | EN 50125-1 |
| Ambient temp. to standard 2 | -40 ... +70 °C |
| Standard 3 for ambient temp. | EN 50125-3 |
| Ambient temp. to standard 3 | -40 ... +70 °C |
| Climatic suitability standard | EN 60068-2-78 |
| Condensation permitted? | Briefly, EN 50155 |
| Perm. operating height ASL | 2000 m |
| EMC to standard ... | EN 50121-4, EN 50121-3-2, EN 61000-6-2, EN 61000-6-4 |
| Broad band noise to | EN 50125-3 |
| Standard1 b/band noise, rail | EN 61373 |
| Freq. broadband noise, rail | 5 ... 150 Hz |
| Clearance & creepage dist. to | EN 50124-1 |
| Overvoltage category | OV2 |
| Pollution degree clear.&creep. | PD2 |
| Protection type standard | EN 60529 |
| Protection type, housing | IP20 |
Potential separation
| Potential isolation 1 between | Periphery and module supply |
| Type of potential isolation 1 | Functional insulation |
| Potential isolation 2 between | Periphery supply & system V. |
| Type of potential isolation 2 | Functional insulation |
Mechanical data
| Housing material lower section | PC |
| Connection terminal | Screw terminal, Spring-loaded terminal |
| Terminal style | plug-in |
| Flex. cond. c/s AWG info | 24 - 12 AWG |
| Height dimension | 125.6 mm |
| Width dimension | 130 mm |
| Depth dimension | 83.7 mm |
| Net weight | 350 g |
| Gross weight | 415 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | yes |
| RoHS except.s acc. to direct. | 7a |
| REACh compliance | contains min. 1 SVHC-substance |
| REACh included substances | Lead |
| %-part of the pollutant | > 0,1 |
| CAS No. | 7439-92-1 |
| SCIP entry available | yes |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27242207 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000024 |
| ETIM Reference Feature | EC000236 |
| UNSPSC 25 | 39122331 |
| GTIN | 4046548067743 |
| Volume | 1.456 dm3 |
| Harmonized System Code | 85371091 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
- 3rd-party license inf. PSS 4000 1st gen.
- Application Note PSS4000 ETH IP with AB
- Application Note PSS4000 OPC Server PMI4
- Application Note PSSu Electrical Wiring
- Application Note PSS4000 ETH UDP with S7
- Application Note SecBridge SL1 PSS4000
- Device description files Ethernet (EDS) PSSu Controller
- Device description files PROFINET (XML) PSSu Controller
- Installation Manual PSSuniversal
- Operat.Man. PSSu H PLC1 FS SN SD(-T)(-R)
- System Description PSS 4000
- Technical Catalogue PSSuniversal
