Pilz 314611

PSSu BP-C 1/8 C-T

MPN
314611
EAN
4046548054330
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Pilz parts? We buy surplus →

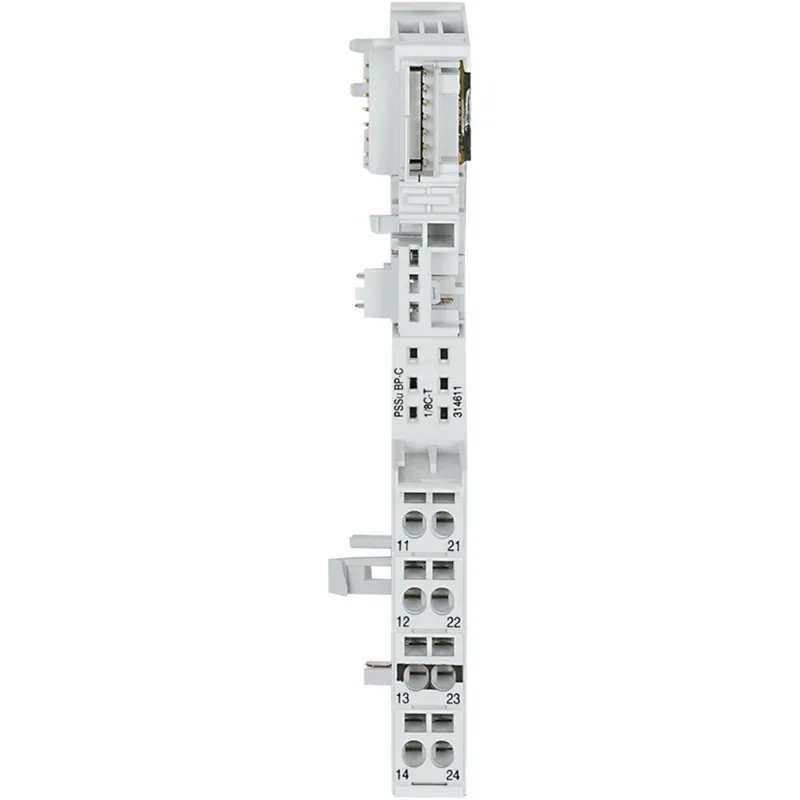

What is the Pilz 314611?

PSSu, base module for electronic modules, periphery, C-rail, 1-row, 4 connection levels, 8 terminals, spring-loaded connection, forincreased environmental requirements.

Specifications

General data

Product ID (Pilz order number)314611
ApprovalCE, UKCA, UL Recognized Component
Application rangeStandard/failsafe
LifecycleActive (current Pilz product)

Environmental data

Humidity rating93 % r. h. at 40 °C
Condensation permitted?Briefly
Perm. operating height ASL5000 m

Mechanical data

Housing material lower sectionPA
Housing material upper partPC
Connection terminalCage clamp terminal
Terminal stylefixed
Height dimension129 mm
Width dimension12.6 mm
Net weight36 g
Gross weight47 g

Environment

RoHS directive2011/65/EU, 2015/863/EU
RoHS conformityyes
RoHS exceptionsyes
RoHS except.s acc. to direct.6c
REACh compliancecontains min. 1 SVHC-substance
REACh included substancesLead
%-part of the pollutant> 0,1%
CAS No.7439-92-1
SCIP entry availableyes
WEEE classification (08/2018)5 devices (feed size < 50cm)

Commercial data

ECLASS versionECLASS-13
ECLASS Reference Feature27242603
ETIM VersionETIM-9.0
ETIM Reference GroupEG000024
ETIM Reference FeatureEC001598
UNSPSC 2539122331
GTIN4046548054330
Volume0 dm3
Harmonized System Code85369095
Quantity per packaging unit1

314611: frequently asked questions

When can 314611 be shipped?

314611 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 314611 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 314611 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 314611, subject to availability and destination.
