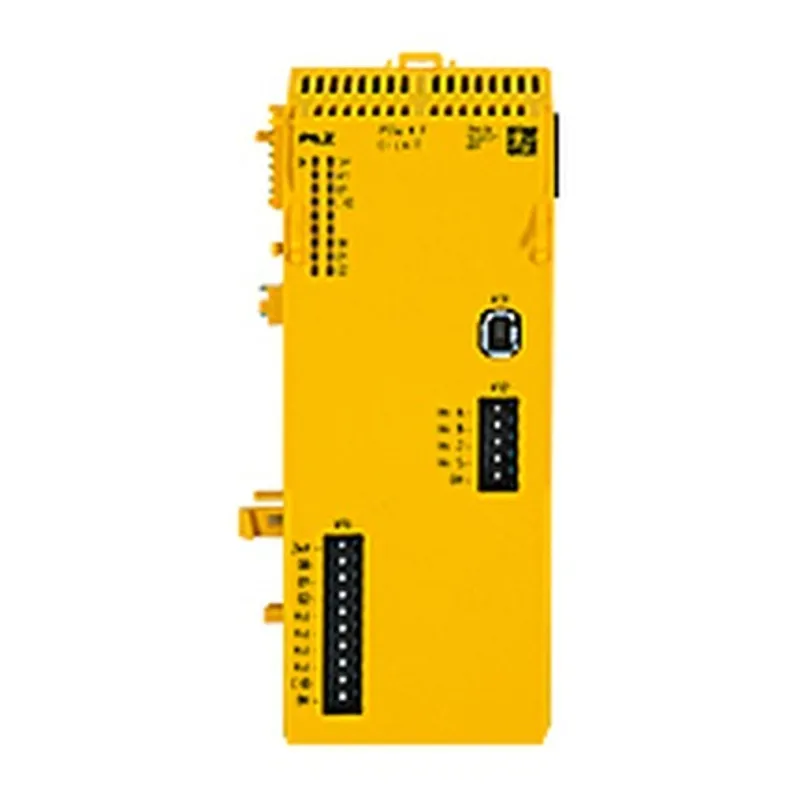

Pilz 314434 – PSSu K F EI CV-T
Discontinued by Pilz — we can still source the original 314434 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PSSuniversal - safe I/O modules |
| Lifecycle | End of life |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.15 kg |
| UPC / EAN | 4046548087116 |
Shipping & availability
Can I still buy the 314434 now that it is discontinued?
Yes. Pilz has discontinued the 314434, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can 314434 be shipped?
314434 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 314434 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 314434 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 314434, subject to availability and destination.
PSSu, compact module, failsafe, counter, safe motion monitoring, recording position counter value, 2 outputs, failsafe, 0.5 A,single- pole, positive-switching, short circuit-proof overload-proof, free fromfeedback, 1 output, standard, 0.5 A, single-pole, positive- switching, shortcircuit-proof, 1 combined input and output CIO for cascading, standard, 1 input for encoder, Mini-IO female connector, 8- pin, 2 inputs for proximity switch, for increased environmental requirements.
Specifications
General data
| Product ID (Pilz order number) | 314434 |
| Approval | CE, UKCA, cULus Listed, TÜV, EAC (Eurasian) |
| Application range | Failsafe |
| Lifecycle | End of life (Pilz is phasing this product out) |
Electrical data
| Purpose of U1 | Module supply |
| Supply voltage (V) | 5 |
| Type of supply voltage U1 | DC |
| Power consumption DC | 1.1 |
| Purpose of U2 | Periphery supply |
| Supply voltage U2 | 24 |
| Type of supply voltage U2 | DC |
| Tolerance of U2 | -30 %/+25 % |
| Type of supply voltage U3 | DC |
| Tolerance of U3 | -30 %/+25 % |
Input proximity switch
| Prog. mon.fun. wo hyst prox sw | 0.1 Hz - 5 kHz |
Input incremental encoder
| Number of incremental encoder | 1 |
| Connection (increment encoder) | 8-pin Mini-IO female connector |
| Evaluation counter puls incr. | 1x, 4x |
| Phase pos. diff.sign. inc.enc. | 90° ±30° |
| Prog. mon. fun. wo hyst. incr. | 0.1 Hz - 500 kHz |
Semiconductor outputs
| Potential isolation S/C O | Yes |
| Potent. isol. S/C O to I | Yes |
| S/C output short circuit proof | Yes |
| Perm. load 1pole Output | Resistive, Inductive, Capacitive |
Environmental data
| Climatic suitability to ... | EN 60068-2-30, EN 60068-2-2, EN 60068-2-1, EN 60068-2-78, EN 60068-2-14 |
| Ambient temperature standard | EN 60068-2-14 |
| Ambient temperature | -40 … 70 °C |
| Storage temperature standard | EN 60068-2-1/-2 |
| Climatic suitability standard | EN 60068-2-78 |
| Humidity rating | 93 % r. h. at 40 °C |
| Condensation permitted? | Briefly |
| Perm. operating height ASL | 5000 m |
| EMC to standard ... | EN 12015, EN 61131-2, EN 12016, EN 61000-6-2, EN 61000-6-4 |
| Vibration to standard ... | EN 60068-2-6 |
| Acc. shock to standard1 | 150 m/s² |
| Clearance & creepage dist. to | EN 61131-2 |
| Overvoltage category | II |
| Pollution degree clear.&creep. | 2 |
| Protection type standard | EN 60529 |
| Protection type, housing | IP20 |
Times
| Reaction time over limit value | 1/f_actual + 10ms |
Mechanical data
| Housing material lower section | PC |
| Housing material front plate | PC |
| Connection terminal | Connector strip |
| Terminal style | plug-in |
| Height dimension | 128.9 mm |
| Width dimension | 56 mm |
| Depth dimension | 56 mm |
| Net weight | 150 g |
| Gross weight | 165 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | yes |
| RoHS except.s acc. to direct. | 7a, 7c I |
| REACh compliance | contains min. 1 SVHC-substance |
| REACh included substances | Lead, Lead oxide |
| %-part of the pollutant | > 0,1 |
| CAS No. | 7439-92-1, 1317-36-8 |
| SCIP entry available | yes |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27242604 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000024 |
| ETIM Reference Feature | EC001599 |
| UNSPSC 25 | 39122331 |
| GTIN | 4046548087116 |
| Volume | 0.537 dm3 |
| Harmonized System Code | 85389091 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
| Application Note PSSu Electrical Wiring | PDF · 9.2 MB |
| Installation Manual PSSuniversal | PDF · 3.1 MB |
| Operat.Manual PSSu K F EI CV(-T) | PDF · 2.6 MB |
| System Description PSS 4000 | PDF · 12.2 MB |
CAD & dimension drawings
Certificates (6)
| Certificate (UL) E183931-20061031 | PDF · 0.4 MB |
| Type examination certificate (TÜV) M6A-020132-0248-R02 | PDF · 2.0 MB |
| Type examination certificate (TÜV) EU-ESD-039-1 | PDF · 0.6 MB |
| Manufacturer declaration (Failure rates) | PDF · 0.3 MB |
| UK Declaration of Conformity (UKCA) | PDF · 0.3 MB |
| EU/EC-Declaration of Conformity (Konformitätserklärung) | PDF · 0.3 MB |
