Pilz 314225
PSSu E F 2DOR 8-T
- MPN
- 314225
- EAN
- 4046548049183
- Category
- PSSuniversal - safe I/O modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pilz 314225?

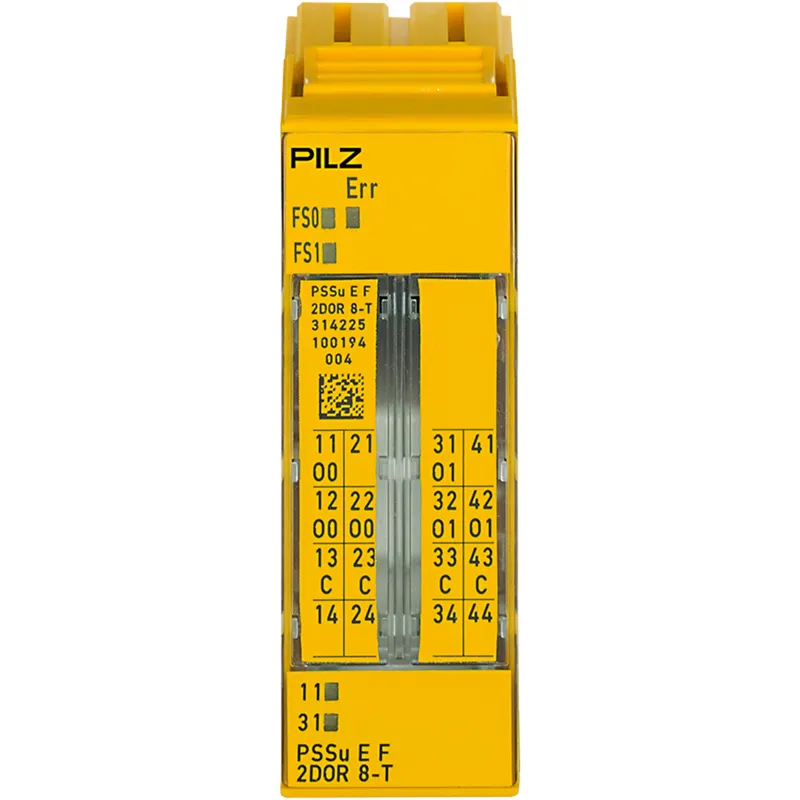

PSSu, electronic module, failsafe, digital inputs and outputs, 2outputs, relay contacts, 8 A, N/O, potential-free, for increased environmental requirements.
Specifications
General data
| Product ID (Pilz order number) | 314225 |
| Approval | CE, UKCA, cULus Listed, KOSHA, EAC (Eurasian), TÜV |
| Application range | Failsafe |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Permitted loads | Resistive, Inductive |
Relay outputs
| Number of relay outputs | 2 |
| Utilisation cat. AC/DC1 stand. | EN 60947-4-1 |
| Voltage AC1 safety cont. | 250 |
| Max. current AC1 safety cont. | 8 |
| Voltage DC1 safety cont. | 24 |
| Max. current DC1 safety cont. | 8 |
| Utilisation cat. AC15/DC13sta. | EN 60947-5-1 |
| Voltage AC15 safety cont. | 230 |
| Max. current AC15 safety cont. | 3 |
| Voltage DC13 safety cont. | 24 |
| Safety contacts: AC at UL | 250 VAC G.U. (same polarity) |
| Safety contacts: pilot duty | B300, R300 |
| Typ. process time relay o/p ON | 20 - 60 ms |
| Relay contact material | AgCuNi |
| Addit. contact details relay | + 0.2 µm Au |
| Pot.isol. RlCont - Uint1 | 4900 V (safe separation) |
| Pot.isol. RlCont to U2 | 4900 V (safe separation) |
| Pot.isol. RlCont1 to CRail | 3050 V (basic insulation) |
| Pot.isol. RlCont1 to RlCont2 | 4900 V (safe separation) |
Environmental data
| Climatic suitability to ... | EN 60068-2-30, EN 60068-2-2, EN 60068-2-1, EN 60068-2-78, EN 60068-2-14 |
| Ambient temperature standard | EN 60068-2-14 |
| Ambient temperature | -40 °C |
| Ambient temp. with UL | 60 °C |
| Storage temperature standard | EN 60068-2-1/-2 |
| Climatic suitability standard | EN 60068-2-78 |
| Humidity rating | P_FEUCHTE_WERT_93 % r. F. bei 40 °C |
| Condensation permitted? | EN 60068-2-30, kurzzeitig, ausschl. bei Schutzkleinspann. |
| Perm. operating height ASL | 5000 m |
| EMC to standard ... | P_EMV_NORM_EN 12015, P_EMV_NORM_EN 12016, P_EMV_NORM_EN 61000-6-2, P_EMV_NORM_EN 61000-6-4, P_EMV_NORM_EN 61131-2 (Zone B) |
| Vibration to standard ... | EN 60068-2-6 |
| Broad band noise to | EN 60068-2-64 |
| Acc. shock to standard1 | 150 m/s² |
| Clearance & creepage dist. to | EN 61131-2 |
| Overvoltage category | II |
| Pollution degree clear.&creep. | 2 |
| Protection type standard | EN 60529 |
| Protection type, mounting | IP54 |
| Protection type, housing | IP20 |
Potential separation
| Type of potential isolation 1 | Safe separation |
| Type of potential isolation 2 | Safe separation |
| Type of potential isolation 3 | Safe separation |
| Type of potential isolation 4 | Safe separation |
Mechanical data
| Housing material lower section | PC |
| Housing material front plate | PC |
| Housing material code | PA |
| Terminal style | plug-in |
| Height dimension | 76 mm |
| Width dimension | 25.2 mm |
| Depth dimension | 60.2 mm |
| Net weight | 91 g |
| Gross weight | 100 g |
| Name of coding element | H |
| Colour of coding element | Yellow |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | no |
| REACh compliance | Contains no SVHC substances |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27242604 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000024 |
| ETIM Reference Feature | EC001599 |
| UNSPSC 25 | 39122331 |
| GTIN | 4046548049183 |
| Volume | 0.146 dm3 |
| Harmonized System Code | 85389091 |
| Quantity per packaging unit | 1 |
