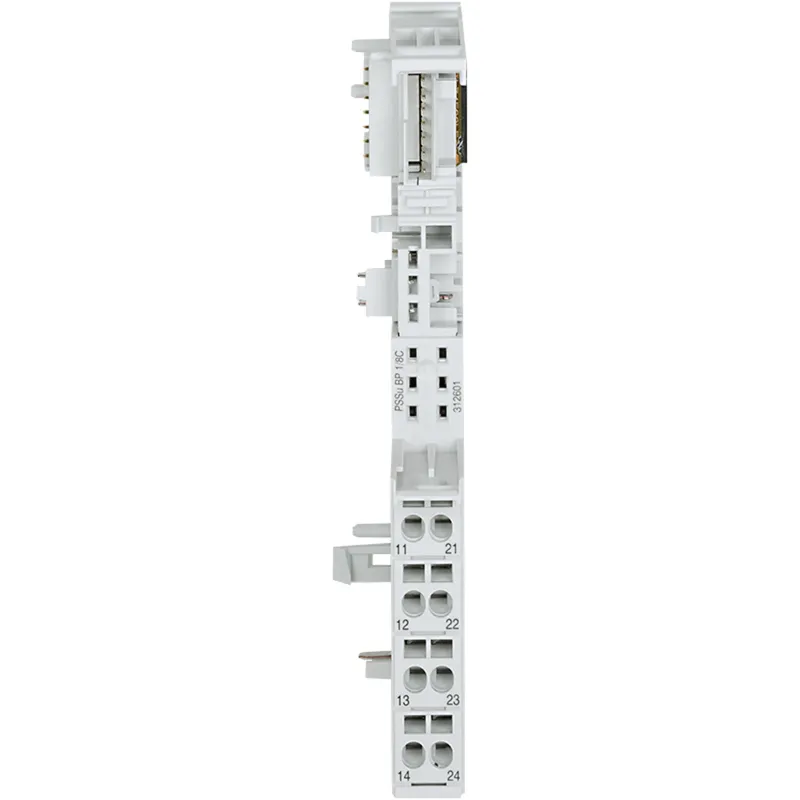

Pilz 312601
PSSu BP 1/8 C
- MPN
- 312601
- EAN
- 4046548018462
- Category
- PSSuniversal - base modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pilz 312601?
PSSu, base module for electronic modules, periphery, 1-row, 4 connection levels, 8 terminals, spring-loaded connection.
Specifications
General data
| Product ID (Pilz order number) | 312601 |
| Approval | CE, UKCA, UL Recognized Component, TÜV |
| Application range | Standard/failsafe |
| Lifecycle | Active (current Pilz product) |
Environmental data
| Humidity rating | 93 % r. h. at 40 °C |
Mechanical data
| Housing material lower section | PA |
| Housing material upper part | PC |
| Connection terminal | Cage clamp terminal |
| Terminal style | fixed |
| Height dimension | 129 mm |
| Width dimension | 12.6 mm |
| Net weight | 37 g |
| Gross weight | 49 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | yes |
| RoHS except.s acc. to direct. | 6c |
| REACh compliance | contains min. 1 SVHC-substance |
| REACh included substances | Lead |
| %-part of the pollutant | > 0,1% |
| CAS No. | 7439-92-1 |
| SCIP entry available | yes |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27242603 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000024 |
| ETIM Reference Feature | EC001598 |
| UNSPSC 25 | 39122331 |
| GTIN | 4046548018462 |
| Volume | 0 dm3 |
| Harmonized System Code | 85369010 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
- Application Note PSS4000 Emergency-Stop
- Application Note PSSu Electrical Wiring
- Application Note PSS4000 Emergency Stop
- Application Note PSS4000 Safety Gate
- Application Note PSS4000 Emergency Stop
- Application Note PSSu K F EI sf Encoder
- Application Note PSSu_KeyInPocket_Basic
- Application Notes: Application Note Content
- Application Note PSS4000 Light Curtain
- Application Note PSS4000 Safety Gate
- Application Note PSSu_KeyInPocket_Ext
- Application Note PSS4000 Light Curtain
- Application Note PSS4000 Emergency-Stop
- Application Note PSSu serial Comm
- Application Note PSS4000 Safety Gate
- Application Note PSS4000 Safety Gate
- Application Note PSS4000 Light Curtain
- Application Note PSSu PITmode flex visu
- Application Note PSS4000 Light Curtain
- Application Notes: PSSu PITmode flex
- Application Note PSS4000 Safety Gate
- Application Note PSS4000 Modbus TCP
- Application Note PSS4000 Safety Gate
CAD & dimension drawings
312601: frequently asked questions
When can 312601 be shipped?
312601 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 312601 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 312601 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 312601, subject to availability and destination.
