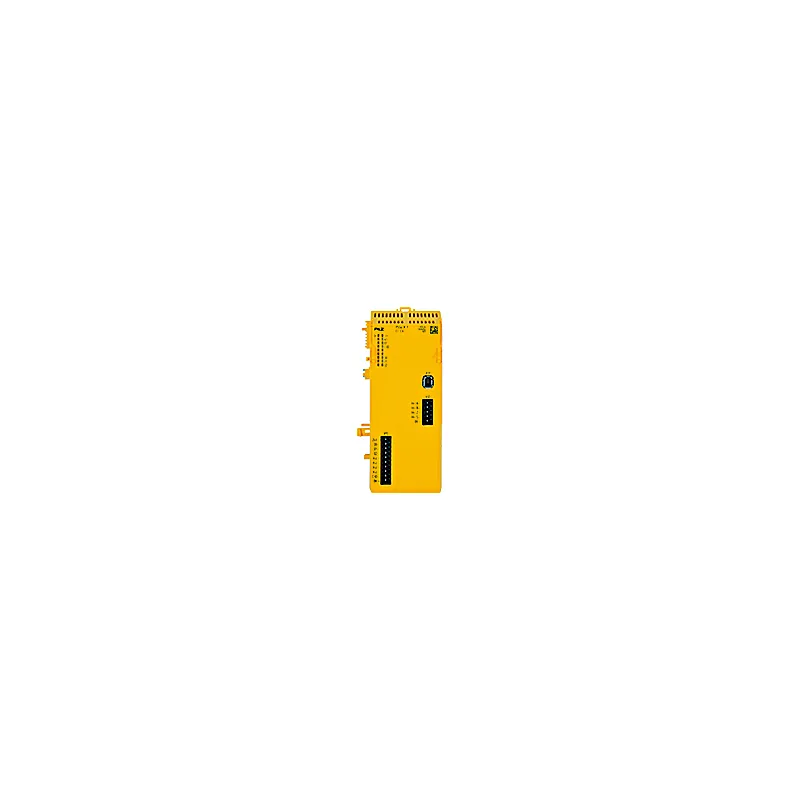

Pilz 312434
PSSu K F EI CV
- MPN
- 312434
- EAN
- 4046548084801
- Category
- PSSuniversal - safe I/O modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pilz 312434?
PSSu, compact module, failsafe, counter, safe motion monitoring, recording position counter value, 2 outputs, failsafe, 0.5 A,single-pole, positive-switching, short-circuit proof overload-proof, free fromfeedback, 1 output, standard, 0.5 A, single-pole, positive-switching, short-circuitproof, 1 combined input and output CIO for cascading, standard, 1 input for encoder, Mini-IO female connector, 8-pin, 2 inputs for proximity switch.
Specifications
General data
| Product ID (Pilz order number) | 312434 |
| Approval | CE, UKCA, cULus Listed, TÜV, EAC (Eurasian) |
| Application range | Fail-safe |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Purpose of U1 | Module Supply |
| Supply voltage (V) | 5 |
| Type of supply voltage U1 | DC |
| Power consumption DC | 1.1 |
| Purpose of U2 | Periphery Supply |
| Supply voltage U2 | 24 |
| Type of supply voltage U2 | DC |
| Tolerance of U2 | -30 %/+25 % |
| Purpose of U3 | Ausgänge |
| Type of supply voltage U3 | DC |
| Tolerance of U3 | -30 %/+25 % |
Input proximity switch
| Prog. mon.fun. wo hyst prox sw | 0,1 Hz - 5 kHz |
Input incremental encoder
| Number of incremental encoder | 1 |
| Connection (increment encoder) | Mini-IO-Buchsenstecker, 8polig |
| Evaluation counter puls incr. | 1x, 4x |
| Phase pos. diff.sign. inc.enc. | 90° ±30° |
| Prog. mon. fun. wo hyst. incr. | 0,1 Hz - 500 kHz |
Semiconductor outputs
| Potential isolation S/C O | ja |
| Potent. isol. S/C O to I | Yes |
| S/C output short circuit proof | ja |
| Perm. load 1pole Output | Resistive, Inductive, Capacitive |
Environmental data
| Climatic suitability to ... | EN 60068-2-30, EN 60068-2-2, EN 60068-2-1, EN 60068-2-78, EN 60068-2-14 |
| Ambient temperature standard | EN 60068-2-14 |
| Ambient temperature | 0 °C |
| Storage temperature standard | EN 60068-2-1/-2 |
| Climatic suitability standard | EN 60068-2-78 |
| Humidity rating | P_FEUCHTE_WERT_93 % r. F. bei 40 °C |
| Condensation permitted? | unzulässig |
| Perm. operating height ASL | 2000 m |
| EMC to standard ... | EN 12015, EN 12016, EN 61131-2, EN 61000-6-2, EN 61000-6-4 |
| Vibration to standard ... | EN 60068-2-6 |
| Acc. shock to standard1 | 150 m/s² |
| Clearance & creepage dist. to | EN 61131-2 |
| Overvoltage category | II |
| Pollution degree clear.&creep. | 2 |
| Protection type standard | EN 60529 |
| Protection type, mounting | IP54 |
| Protection type, housing | IP20 |
Times
| Reaction time over limit value | 1/f_ist + 10ms |
Mechanical data
| Housing material lower section | PC |
| Housing material front plate | P_GEHAEUSE_MAT_F_PC |
| Connection terminal | Stiftleiste |
| Terminal style | steckbar |
| Height dimension | 128.9 mm |
| Width dimension | 56 mm |
| Depth dimension | 56 mm |
| Net weight | 147 g |
| Gross weight | 160 g |
Environment
| REACh compliance | contains min. 1 SVHC-substance |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27242604 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000024 |
| ETIM Reference Feature | EC001599 |
| UNSPSC 25 | 46211501 |
| GTIN | 4046548084801 |
| Volume | 0.537 dm3 |
| Harmonized System Code | 85389091 |
| Quantity per packaging unit | 1 |
