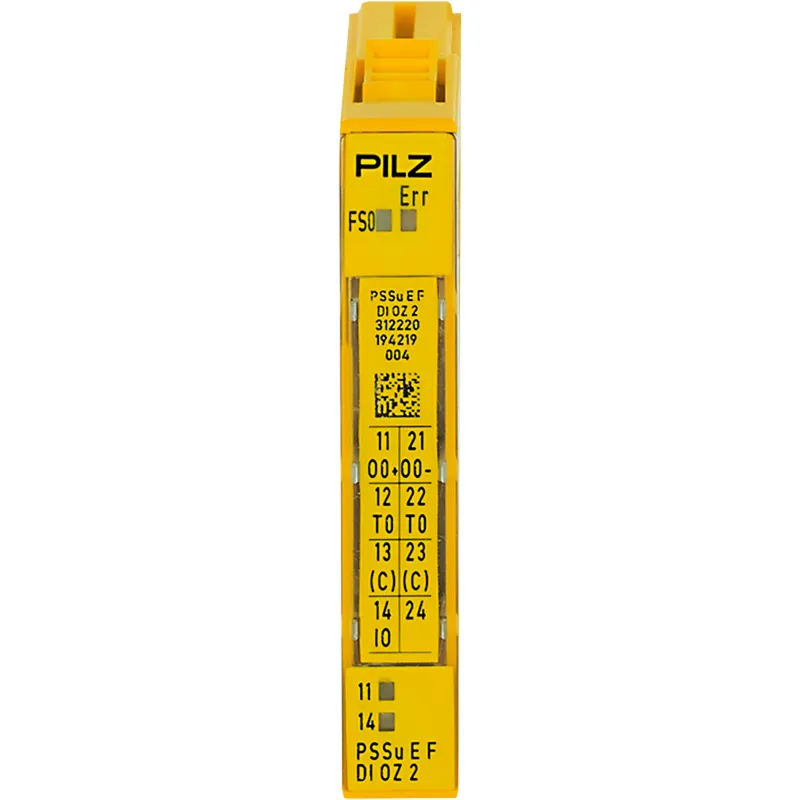

Pilz 312220

Q: When can 312220 be shipped?

312220 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Q: Can I pick up 312220 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Q: Is express delivery available?

Yes — mention it when you request a quote for 312220 and we'll include express shipping options in our reply.

Q: My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 312220, subject to availability and destination.

PSSu E F DI OZ 2

MPN: 312220
EAN: 4046548018592
Category: PSSuniversal - safe I/O modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Pilz 312220?

PSSu, electronic module, failsafe, digital inputs and outputs, 1 input, 1 test pulse output 0.25 A, 1 output, 2 A, dual-pole, short-circuitproof, overload-proof, free from feedback.

Specifications

General data

Product ID (Pilz order number)	312220
Approval	CE, UKCA, cULus Listed, KOSHA, EAC (Eurasian), TÜV
Application range	Fail-safe
Lifecycle	Active (current Pilz product)

Inputs

Number of digital inputs	1
DC voltage at input	24 V DC
Potential isolation inputs	ja

Semiconductor outputs

DC voltage at output

24 V DC

Semiconductor outputs 2-pole

Number 2-pin SC outputs	1
Pot. isolation 2pole S/C O	Yes
2pole S/C O short circ. proof	ja

Test clock outputs

Number of test pulse outputs

Environmental data

Climatic suitability to ...	EN 60068-2-30, EN 60068-2-2, EN 60068-2-1, EN 60068-2-78, EN 60068-2-14
Ambient temperature standard	EN 60068-2-14
Ambient temperature	0 °C
Storage temperature standard	EN 60068-2-1/-2
Climatic suitability standard	EN 60068-2-78
Humidity rating	P_FEUCHTE_WERT_93 % r. F. bei 40 °C
Condensation permitted?	unzulässig
Perm. operating height ASL	2000 m
EMC to standard ...	EN 12015, EN 12016, EN 61000-6-2, EN 61000-6-4, EN 61131-2 (Zone B)
Vibration to standard ...	EN 60068-2-6
Acc. shock to standard1	150 m/s²
Clearance & creepage dist. to	EN 61131-2
Overvoltage category	II
Pollution degree clear.&creep.	2
Protection type standard	EN 60529
Protection type, mounting	IP54
Protection type, housing	IP20
Terminal protection type	IP20

Mechanical data

Housing material lower section	PC
Housing material front plate	P_GEHAEUSE_MAT_F_PC
Housing material code	PA
Terminal style	steckbar
Height dimension	76 mm
Width dimension	12.6 mm
Depth dimension	60.2 mm
Net weight	35 g
Gross weight	44 g
Name of coding element	G
Colour of coding element	gelb

Environment

RoHS directive	2011/65/EU, 2015/863/EU
RoHS conformity	yes
RoHS exceptions	yes
RoHS except.s acc. to direct.	7a, 7c I
REACh compliance	contains min. 1 SVHC-substance
REACh included substances	Lead, Lead oxide
%-part of the pollutant	> 0,1
CAS No.	7439-92-1, 1317-36-8
SCIP entry available	yes
WEEE classification (08/2018)	5 devices (feed size < 50cm)

Commercial data

ECLASS version	ECLASS-13
ECLASS Reference Feature	27242604
ETIM Version	ETIM-9.0
ETIM Reference Group	EG000024
ETIM Reference Feature	EC001599
UNSPSC 25	32131023
GTIN	4046548018592
Volume	0.049 dm3
Harmonized System Code	85389091
Quantity per packaging unit	1
