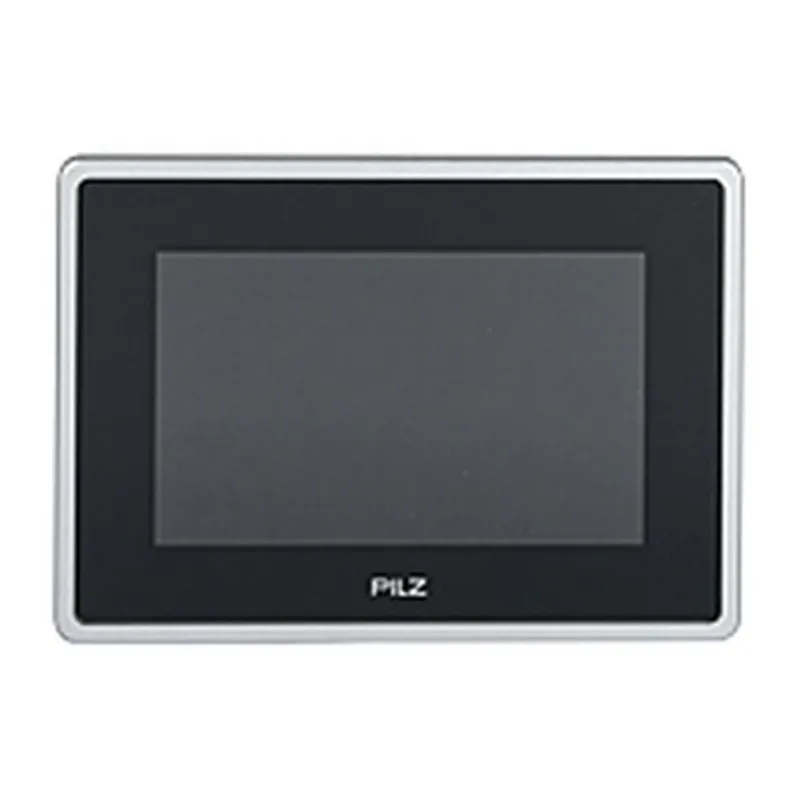

Pilz 265607 – PMI 607 Control
Discontinued by Pilz — we can still source the original 265607 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PMI operator terminals |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 1.74 kg |
| UPC / EAN | 4046548083316 |
Shipping & availability
Can I still buy the 265607 now that it is discontinued?
Yes. Pilz has discontinued the 265607, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can 265607 be shipped?
265607 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 265607 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 265607 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 265607, subject to availability and destination.
PMIcontrol - Control panel with 7" touchscreen, CODESYS Runtime and TargetVisu installed/licensed, Master systems: CANopen, ModbusTCP.
Lifecycle: Pilz has discontinued this product and no longer manufactures it. PartnerPLC sources discontinued Pilz parts — request a quote for availability, or ask us about the current Pilz successor.
Specifications
General data
| Product ID (Pilz order number) | 265607 |
| Approval | CE, cULus Listed, EAC (Eurasian) |
| Operating system | Windows Embedded Compact 7 |
| Lifecycle | Discontinued (no longer manufactured by Pilz) |
Electrical data
| Supply voltage (V) | 24 V |
| Type of supply voltage U1 | DC |
| Power consumption DC | 14.4 W |
Display
| Display type | TFT |
| Display diagonal | 7 Zoll |
| Display resolution | 800 x 480 |
| Display colour depth | 16.2 M |
| Type of touchscreen | capacitive |
CPU
| Processor type | X86 |
| Processor clock speed | 1.3 GHz |
| RAM | 512 MB |
| Size of program memory (Flash) | 512 MB |
| Real-time clock present | Yes |
Removable storage media
| Plug-in memory | SD Card |
USB interface
| Number of USB host interfaces | 2 |
Ethernet interface
| Connector type ETHERNET int. | RJ45 |
| Ethernet transmission rate | 1 Gbit/s |
| Number of Ethernet interfaces | 1 |
CANopen interface
| CANopen type | Master |
| Number of Canopen subscribers | 127 |
| Canopen transmission times | 800 kBit/s, 500 kBit/s, 10 kBit/s, 250 kBit/s, 100 kBit/s, 1 MBit/s, 125 kBit/s, 20 kBit/s, 50 kBit/s |
Serial interface
| Number of RS 232 interfaces | 1 |
Environmental data
| Ambient temperature | 0 … 50 °C |
| Storage temperature standard | EN 60068-2-1/-2 |
| Climatic suitability standard | EN 60068-2-78 |
| Humidity rating | 90 % r. h. at 40 °C |
| Condensation permitted? | Not permitted |
| EMC to standard ... | EN 61000-6-2, EN 61000-6-4 |
| Vibration to standard ... | EN 60068-2-6 |
| Acc. shock to standard1 | 15g |
| Protection type standard | EN 60529 |
| Protection type, housing | IP20 |
| UL enclosure type | 1,2,5,4/4X indoor use only |
Mechanical data
| Height dimension | 153 mm |
| Width dimension | 216 mm |
| Depth dimension | 85 mm |
| Net weight | 1740 g |
| Gross weight | 2760 g |
Environment
| REACh compliance | contains min. 1 SVHC-substance |
| WEEE classification (08/2018) | 2 device/monitor > 100 cm² |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27330201 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000024 |
| ETIM Reference Feature | EC001412 |
| UNSPSC 25 | 46171620 |
| GTIN | 4046548083316 |
| Volume | 0 dm3 |
| Harmonized System Code | 85371091 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
| Licensing information PMI Assistant | PDF · 0.7 MB |
| Operating Manual PMI 6 | PDF · 3.3 MB |
| Operating Manual PMI 6 | PDF · 3.6 MB |
| Operat.Man. PMI Assistant | PDF · 0.6 MB |
| Operat.Manual PSS 4000 Diag Control UA | PDF · 1.4 MB |
| Operat.Manual PSS 4000 Diag Control UA | PDF · 1.4 MB |
CAD & dimension drawings
Certificates (4)
| Certificate (UL) NRAQ7.E183931 | PDF · 0.1 MB |
| Certificate (UL) NRAQ.E183931 | PDF · 0.1 MB |
| EU/EC-Declaration of Conformity | PDF · 0.1 MB |
| UK Declaration of Conformity (UKCA) | PDF · 0.1 MB |
