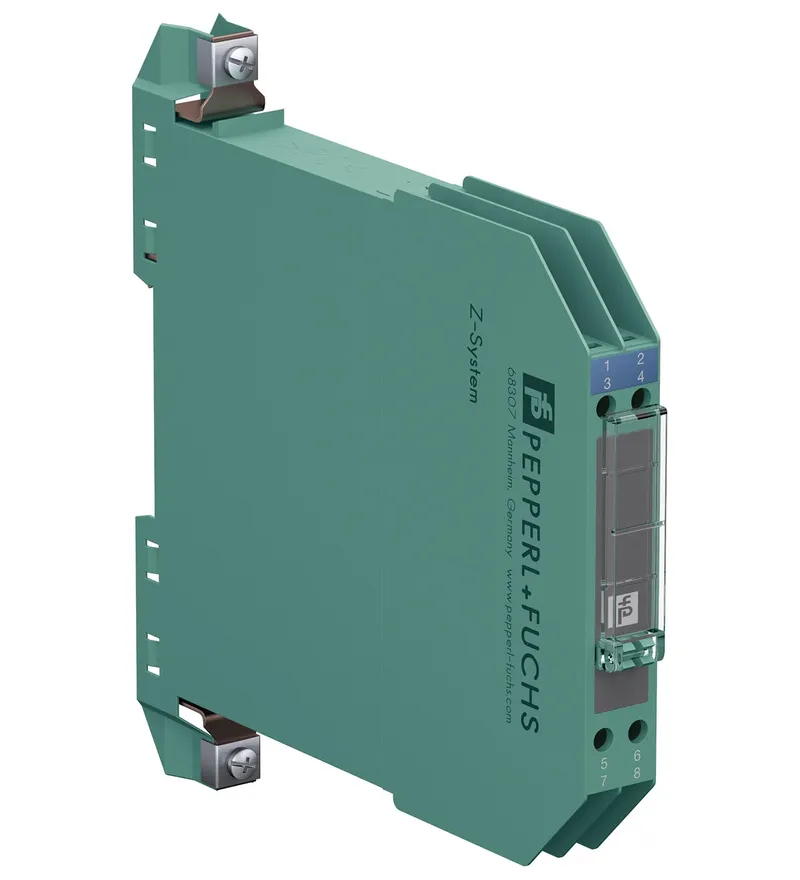

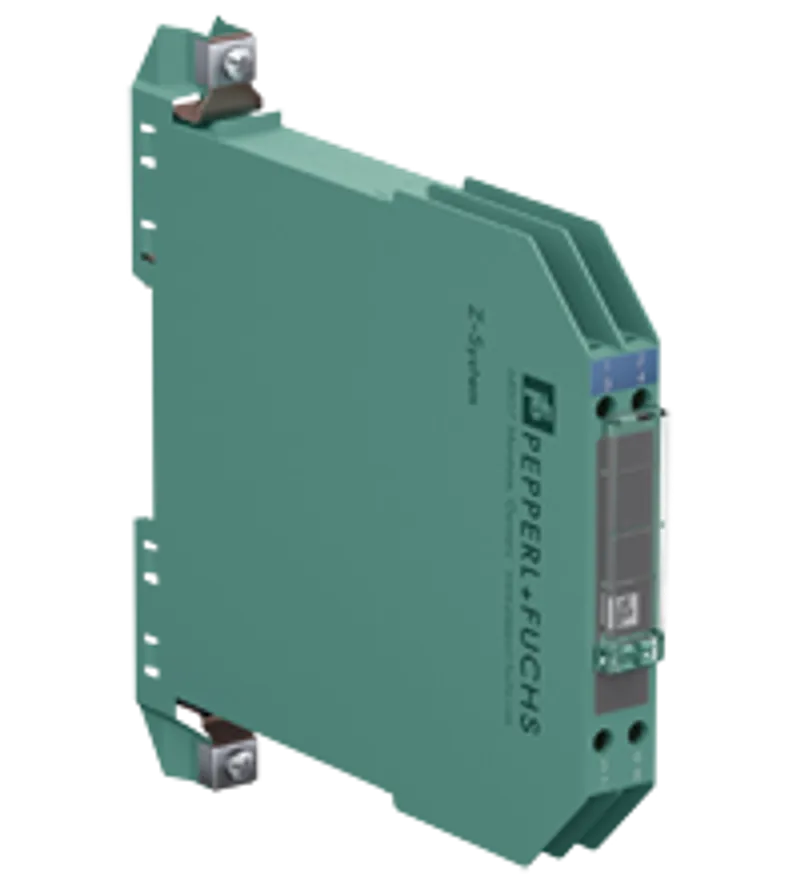

Pepperl Fuchs Z910

Zener Barrier

MPN: Z910
Category: Modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Pepperl Fuchs parts? We buy surplus →

What is the Pepperl Fuchs Z910?

1-channel

AC version

Working voltage 6.5 V at 10 µA

Series resistance max. 56 Ω

Fuse rating 100 mA

DIN rail mountable

1-channel, AC version, Working voltage 6.5 V at 10 µA, Series resistance max. 56 Ω, Fuse rating 100 mA, DIN rail mountable, Type: AC version

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	071773
Type	AC version
Lifecycle	Active (current Pepperl+Fuchs product)

Electrical specifications

Nominal resistance	50 Ω
Series resistance	max. 56 Ω
Fuse rating	100 mA

Hazardous area connection

Connection

terminals 1, 2

Safe area connection

Connection	terminals 7, 8
Working voltage: Supply loop	max. 8.8 V
Working voltage: Measurement loop	max. 6.5 V at 10 µA

Conformity

Degree of protection

IEC 60529

Ambient conditions

Ambient temperature	-20 ... 60 °C (-4 ... 140 °F)
Storage temperature	-25 ... 70 °C (-13 ... 158 °F)
Relative humidity	max. 75 % , without condensation

Mechanical specifications

Degree of protection	IP20
Connection	screw terminals
Core cross section	max. 2 x 2.5 ... mm2
Mass	approx. 150 g
Dimensions	12.5 x 115 x 116 mm (0.5 x 4.5 x 4.6 inch) (W x H x D)
Construction type	modular terminal housing , see system description
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001

Data for application in connection with hazardous areas

EU-type examination certificate	BAS 01 ATEX 7005
Marking	II (1)GD, I (M1) [Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I
Voltage	9.94 V Uo
Current	203 mA Io
Power	500 mW Po
Supply: Maximum safe voltage	250 V Um
Series resistance	min. 49 Ω
Certificate	TÜV 99 ATEX 1484 X
Marking	II 3G Ex nA IIC T4 Gc
Directive conformity: Directive 2014/34/EU	EN IEC 60079-0:2018+AC:2020 , EN IEC 60079-11:2024 , EN IEC 60079-7:2015+A1:2018

International approvals

FM approval: Control drawing	116-0118
UL approval: Control drawing	116-0139 (cULus)
IECEx approval: IECEx certificate	IECEx BAS 09.0142 IECEx BAS 17.0091X
IECEx approval: IECEx marking	[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I Ex ec IIC T4 Gc

General information

Supplementary information

Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
