Pepperl Fuchs Z040 – Zener Barrier
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modules |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can Z040 be shipped?
Z040 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up Z040 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for Z040 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for Z040, subject to availability and destination.
• 2-channel
• DC version, positive polarity
• Working voltage 1 V at 1 µA
• Series resistance max. 50 Ω
• Fuse rating 100 mA
• DIN rail mountable
2-channel, DC version, positive polarity, Working voltage 1 V at 1 µA, Series resistance max. 50 Ω, Fuse rating 100 mA, DIN rail mountable, Type: DC version, positive polarity
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 240527 |
| Type | DC version, positive polarity |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Nominal resistance | 48.5 Ω |
| Series resistance | max. 50 Ω |
| Fuse rating | 100 mA |
Hazardous area connection
| Connection | terminals 1, 2; 3, 4 |
Safe area connection
| Connection | terminals 5, 6; 7, 8 |
| Working voltage: Supply loop | max. 5 V |
| Working voltage: Measurement loop | max. 3 V at 10 µA (1 V at 1 µA) |
Transfer characteristics
| Deviation: Influence of ambient temperature | max. 0.05 Ω/K |
Conformity
| Degree of protection | IEC 60529 |
Ambient conditions
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Storage temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Relative humidity | max. 75 % , without condensation |
Mechanical specifications
| Degree of protection | IP20 |
| Connection | screw terminals |
| Core cross section | max. 2 x 2.5 ... mm2 |
| Mass | approx. 150 g |
| Dimensions | 12.5 x 115 x 116 mm (0.5 x 4.5 x 4.6 inch) (W x H x D) |
| Construction type | modular terminal housing , see system description |
| Mounting | on 35 mm DIN mounting rail acc. to EN 60715:2001 |
Data for application in connection with hazardous areas
| EU-type examination certificate | BAS 01 ATEX 7005 |
| Marking | II (1)G [Ex ia Ga] IIC, II (1)D [Ex ia Da] IIIC, I (M1) [Ex ia Ma] I |
| Voltage | terminals 1, 2: 5.88 V / terminals 3, 4: 5.88 V Uo |
| Current | terminals 1, 2: 140 mA / terminals 3, 4: 140 mA Io |
| Power | terminals 1, 2: 206 mW / terminals 3, 4: 206 mW Po |
| Supply: Maximum safe voltage | 250 V Um |
| Series resistance | min. 42.14 Ω |
| Certificate | TÜV 99 ATEX 1484 X |
| Marking | II 3G Ex nA IIC T4 Gc |
| Directive conformity: Directive 2014/34/EU | EN IEC 60079-0:2018+AC:2020 , EN IEC 60079-11:2024 , EN IEC 60079-7:2015+A1:2018 |
International approvals
| IECEx approval: IECEx certificate | IECEx BAS 09.0142 IECEx BAS 17.0091X |
| IECEx approval: IECEx marking | [Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I Ex ec IIC T4 Gc |
General information
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet Z040 | |
| Instruction Manual | PDF · 239 kB |
CAD & dimension drawings
| 3-D model (STEP) Z810.CL | STP · 974 kB |
Certificates (8)
More Pepperl Fuchs parts

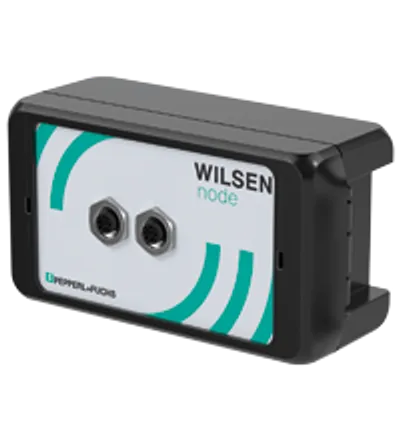

Available on requestWireless sensor node WSN-2ZL-F406-B41-01-02
