Pepperl Fuchs WCS-MB1 – WCS mounting bracket system
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Optical Linear Positioning Systems |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can WCS-MB1 be shipped?
WCS-MB1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up WCS-MB1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for WCS-MB1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for WCS-MB1, subject to availability and destination.

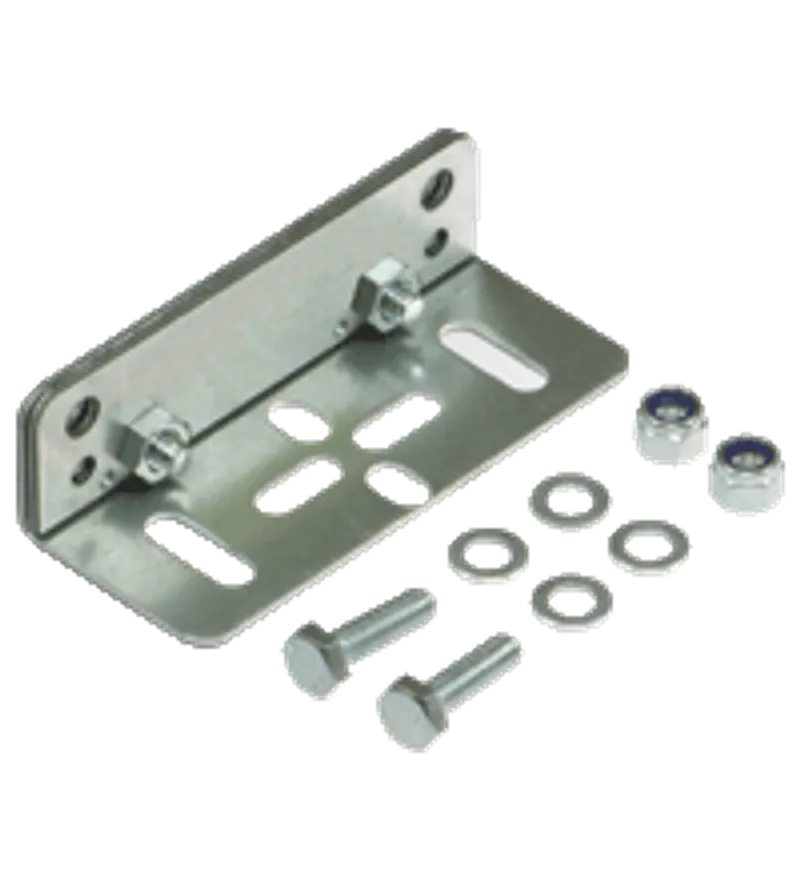

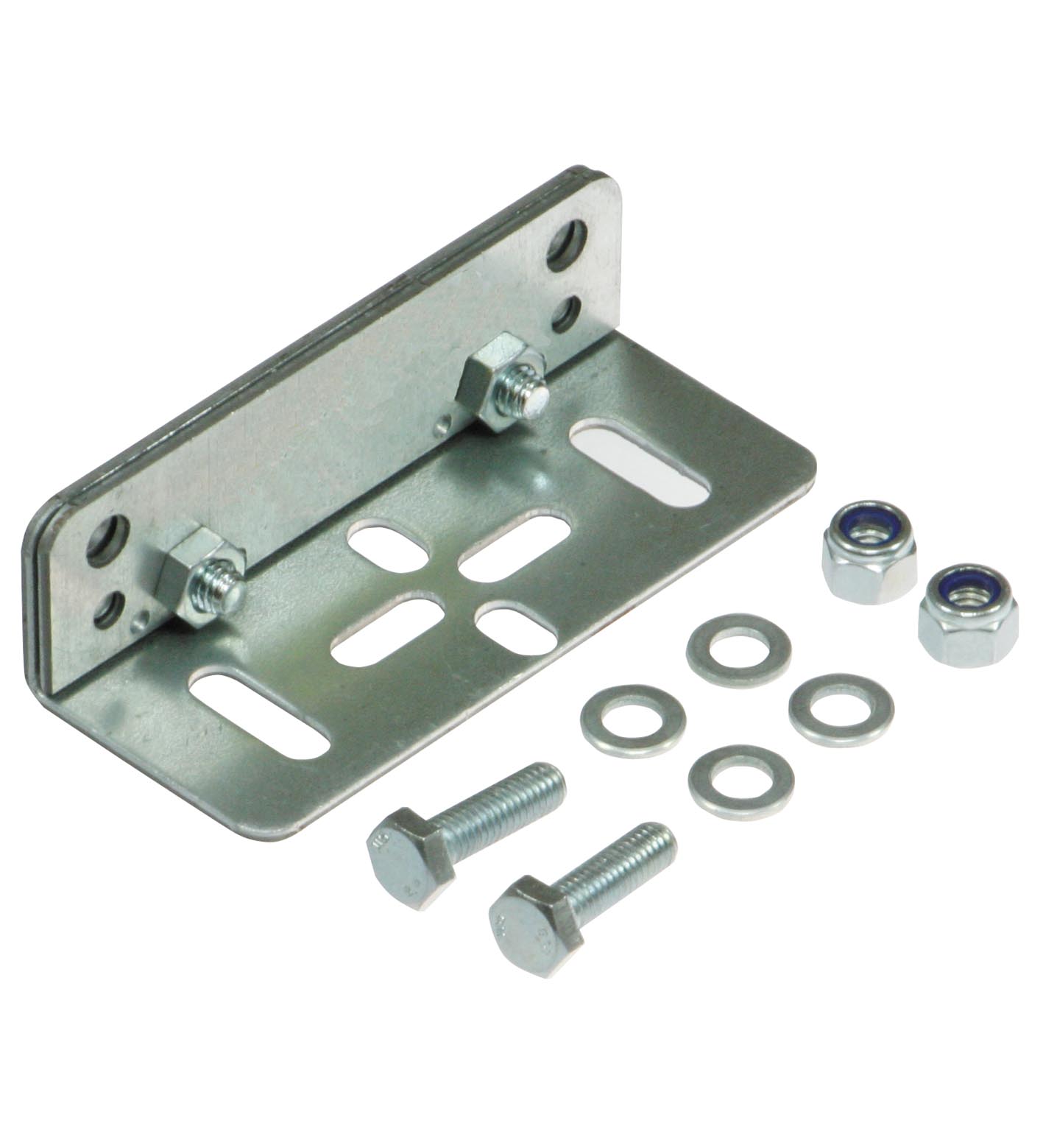

• Mounting bracket for code rail, straight
• Supplied with M6 mounting screws
Mounting bracket for bolt connection, straight, Mounting bracket for code rail, straight, Supplied with M6 mounting screws
Specifications
Ambient conditions
| Order code (Pepperl+Fuchs part number) | 184098 |
| Ambient temperature | -40 ... 100 °C (-40 ... 212 °F) |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Mechanical specifications
| Material thickness | 2 mm |
| Material | Metal sheet (steel), zinc-plated |
| Mass | 125 g (without fastening screws) |

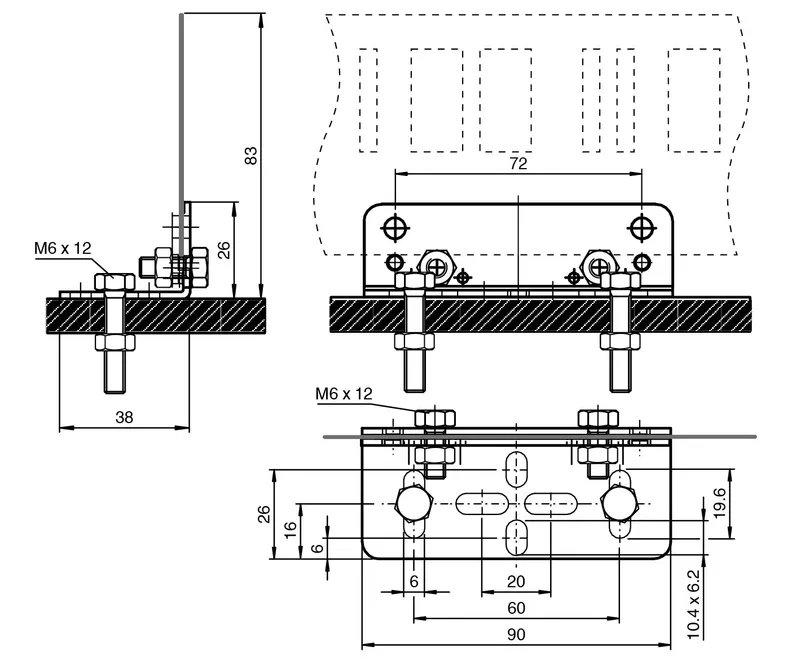

| Dimensions: Height | 26 mm |
| Dimensions: Width | 38 mm |
| Dimensions: Length | 90 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet WCS-MB1 | |
| Manual WCS Electrical | PDF · 15.8 MB |
| Manual WCS Mechanical | PDF · 12.6 MB |
CAD & dimension drawings
| 3-D model (STEP) WCS-MB2 | STP · 271 kB |
More Pepperl Fuchs parts

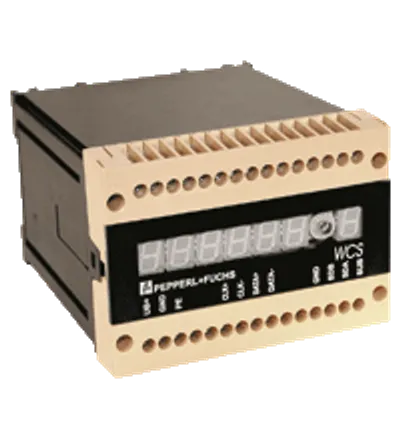

Available on requestWCS interface module WCS-IS321

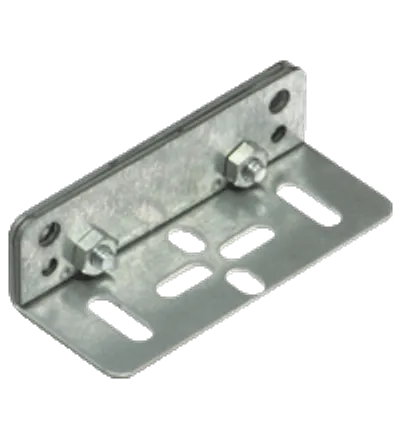

Available on requestWCS mounting bracket system WCS-MB
Available on requestWCS mounting bracket system WCS-MB-BAvailable on requestWCS mounting bracket system WCS-MB-C

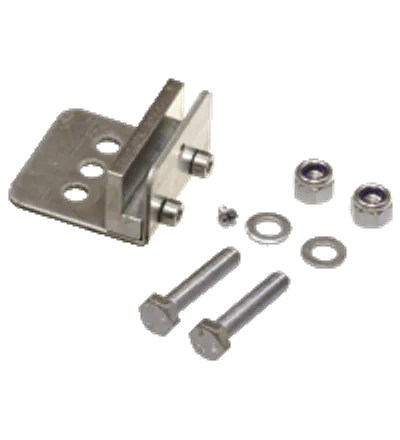

Available on requestWCS mounting bracket system WCS-MB1-B
Available on requestWCS mounting bracket system WCS-MB2

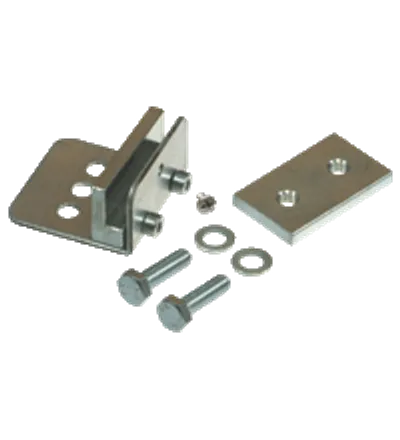

Available on requestWCS mounting bracket system WCS-MB2-BAvailable on requestWCS mounting bracket system WCS-MB2-C
