• Direct output of measured values such as volume, dimensions, rotation, and position
• Complete 3D capture in a single shot for static and dynamic applications up to 2.5 m/s
• Reliable object detection regardless of color and geometry
• Easy setup with live preview, freely definable ROI, and customizable parameters—even for challenging surfaces
The sensor uses stereo vision technology to capture three-dimensional data of objects in both static and dynamic applications. It calculates volume, dimensions, rotation, and position from this data and outputs the results directly.
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70123992-100004 |
| Detection range | 850 ... 2050 mm |
| Measuring range | X: 720 mm and Y: 610 mm at 1000 mm distance X: 1450 mm and Y: 1220 mm at 2000 mm distance |
| Light source | LED projector |
| Light type | Infrared Wave length 850 nm |
| Light direction | Structured light |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Integrated application
| Minimum object height | min. 8 mm at 1000 mm min. 12 mm at 1500 mm min. 25 mm at 2000 mm (Object size (W × L) = 50 mm × 50 mm) |
| Measuring accuracy volume | ±0.01 l at 1000 mm ±0.05 l at 2000 mm |
| Measuring accuracy dimensions | ± 5 mm at 1000 mm ± 10 mm at 2000 mm |
| Measuring accuracy rotation | ± 1 ° |
| Measuring accuracy surface midpoint | ± 2 mm |
| Frame rate | max. 13 fps |
| Target velocity | 0 ... 2.5 m/s |
Nominal ratings
| Camera: Number of pixels | 1300 x 1080 pixels |
| Camera: Shutter | Global shutter |
| Camera: Image resolution | 1.4 MP |
| Camera: Disparity | 128 |
Functional safety related parameters
| MTTFd | 20 a |
| Mission Time (TM) | 10 a |
| Diagnostic Coverage (DC) | 0 % |
Indicators/operating means
| Operation indicator | 4 LEDs (OUT 1, OUT 2, BUS, PWR) |
Electrical specifications
| Operating voltage | 24 V ± 20 % , PELV UB |
| No-load supply current | max. 450 mA I0 |
| Power consumption | max. 10 W , Outputs without load P0 |
Interface
| Interface type | Ethernet TCP/IP , MODBUS TCP |
| Transfer rate | 1 GBit/s |
Input
| Control input | 1 digital input and External trigger |
Conformity
| Photobiological safety | Risk group 0 according to IEC 62471 |
Compliance with standards and directives
| Standard conformity: Noise immunity | EN 61000-6-2:2005 |
| Standard conformity: Emitted interference | EN 61000-6-4:2007/A1:2011 |
| Standard conformity: Degree of protection | EN 60529 |
| Standard conformity: Shock and impact resistance | EN 60068-2-27:2009 |
Function and system design
| Measuring principle | 3-D image data Stereo vision Structured light |
| Application | Object Measurement |
Approvals and certificates
| CE conformity | CE |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Operating temperature | -20 ... 45 °C (-4 ... 113 °F) , (non-condensing; prevent icing on the lens!) |
| Relative humidity | < 99 % , non-condensing |
Mechanical specifications

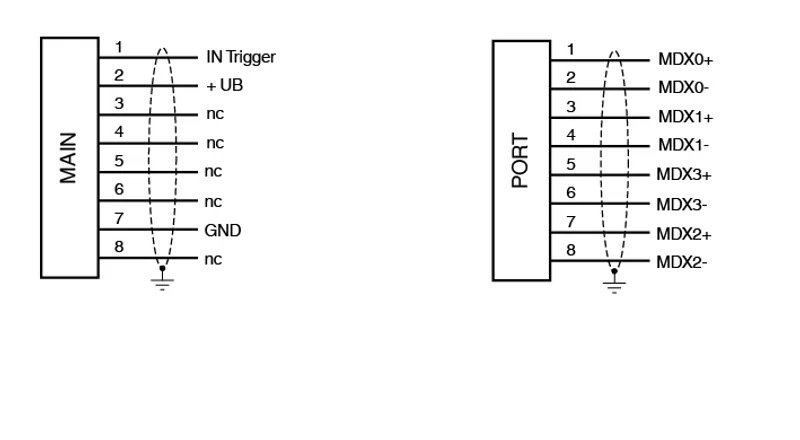

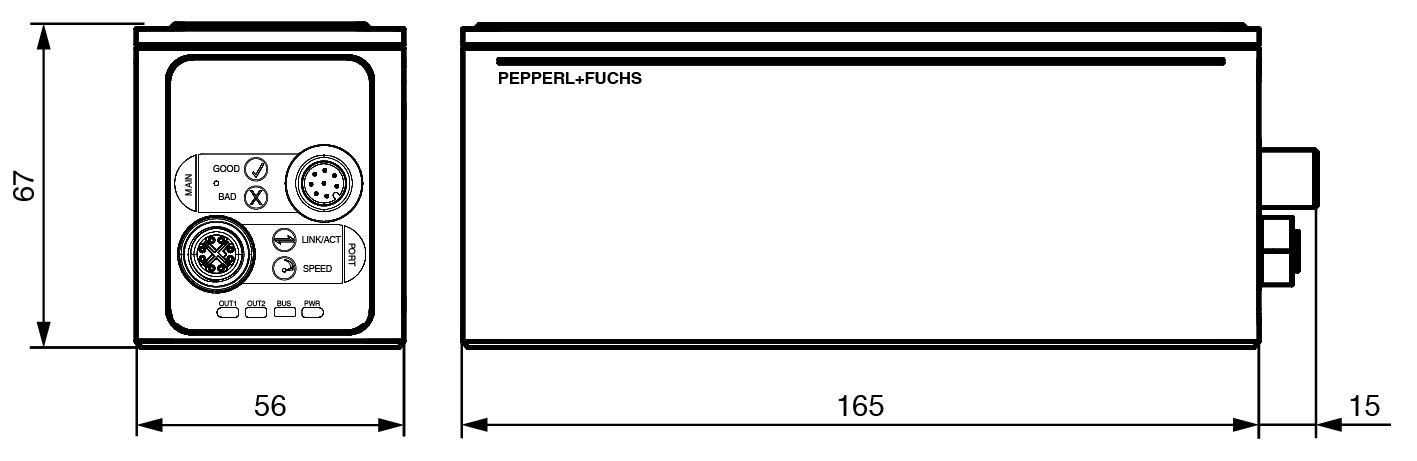

| Degree of protection | IP65 / IP67 |
| Connection | M12 connector, 8-pin , A-coded 8-pin M12 socket , X-coded |
| Material: Housing | metal |
| Material: Optical face | Plastic pane |
| Installation | M5 screws |
| Mass | approx. 800 g |
| Tightening torque, fastening screws | max. 2 Nm |
| Dimensions: Height | 180 mm |
| Dimensions: Width | 56 mm |
| Dimensions: Depth | 67 mm |
General information
| Note | INVISIBLE LED , DO NOT STARE INTO BEAM DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS |
