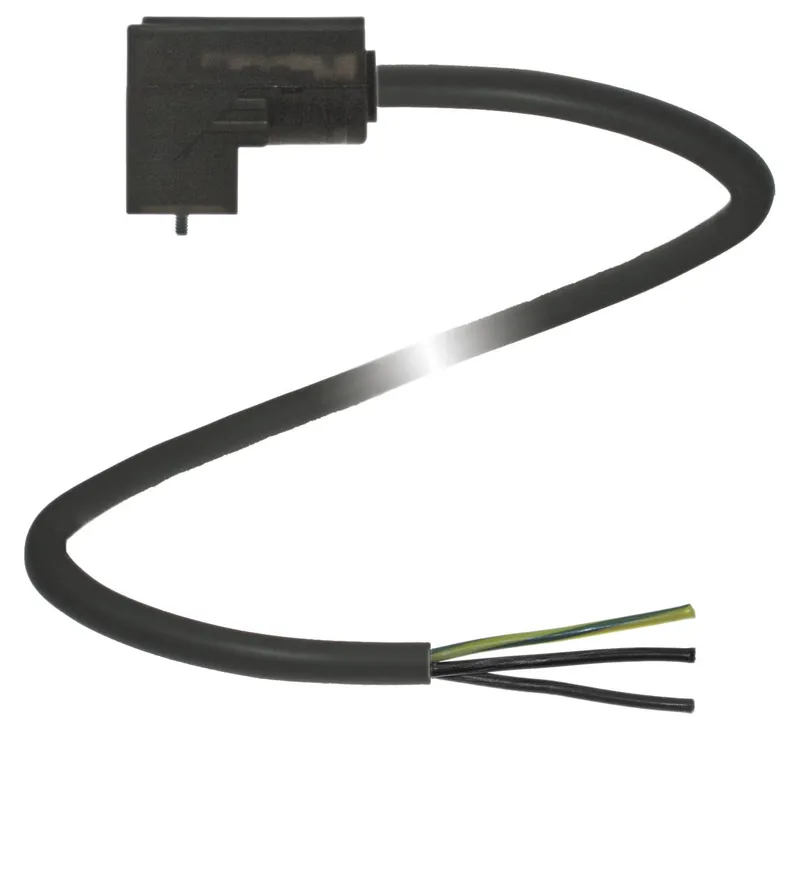

Valve Connector Cordset VMC-2+P/Z2-5M-PVC — photo 2 of 4

Valve Connector Cordset VMC-2+P/Z2-5M-PVC — photo 3 of 4

Valve Connector Cordset VMC-2+P/Z2-5M-PVC — photo 4 of 4

Available on request

Pepperl Fuchs VMC-2+P/Z2-5M-PVC – Valve Connector Cordset

MPN: VMC-2+P/Z2-5M-PVC · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Valve Connectors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can VMC-2+P/Z2-5M-PVC be shipped?

VMC-2+P/Z2-5M-PVC is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up VMC-2+P/Z2-5M-PVC in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for VMC-2+P/Z2-5M-PVC and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VMC-2+P/Z2-5M-PVC, subject to availability and destination.

• Valve connector according EN 175301-803 A/ISO 4400

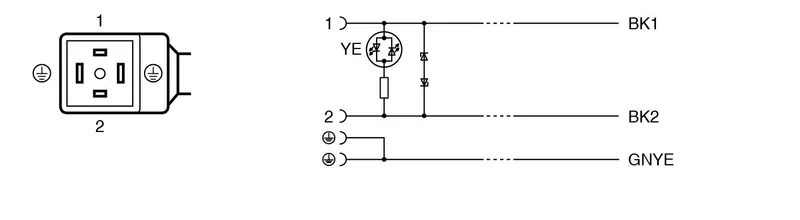

• Z diode as a protective circuit

• Built-in LED, as operating and function indicator

• Moulded seal

• freely selectable cable models due to bridged protective earth

• Flame resistant cable

• Oil resistant

• Immunity to vibration

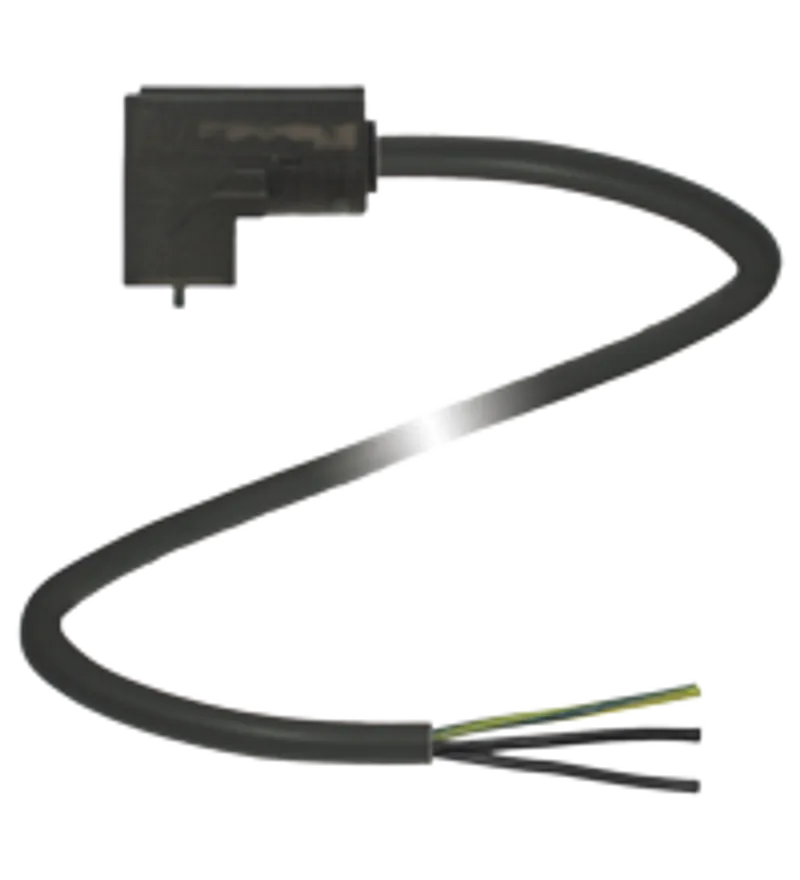

Valve connector Form C, Z-diode LED 2-pin+PE, PVC cable black

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	246581
Connector 1: Connection	Valve connector DIN
Connector 1: Construction type	form C
Connector 1: Style	angled
Connector 1: Locking	screw connection
Connector 1: Number of pins	2 + PE
Connector 2: Connection	cable end
Connector 2: Customization	sheath stripped 50 mm
Lifecycle	Active (current Pepperl+Fuchs product)

Indicators/operating means

LED yellow

Operating display

Electrical specifications

Operating voltage	max. 24 V AC/DC UB
Operating current	max. 4 A IB
Suppression	Zener diode

Conformity

Degree of protection	EN 60529
Plug connection	Valve connector : DIN EN 175301-803
Flammability	DIN VDE 0482 , DIN EN 50265-2-1 , UL 94
Oil resistance	DIN EN 60811-2-1

Ambient conditions

Ambient temperature: Plug connector	-20 ... 85 °C (-4 ... 185 °F)
Ambient temperature: Cable, fixed installation	-40 ... 80 °C (-40 ... 176 °F)
Ambient temperature: Cable, flexing	-5 ... 80 °C (23 ... 176 °F)
Pollution degree	3

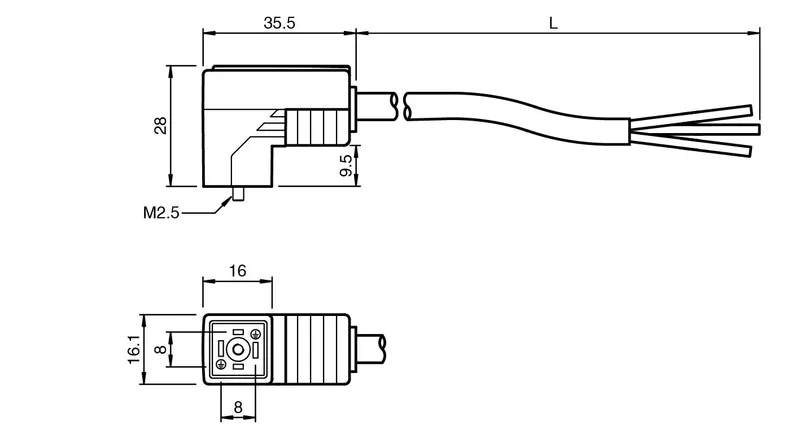

Mechanical specifications

Plug connector: Tightening torque	0.6 Nm
Plug connector: Tool installation	screw M2.5 x 27.5
Plug connector: Mating cycles	min. 100
Degree of protection	IP65 / IP67
Cable	according to IEC/EN 60228 (DIN VDE 0295) class 5
Sheath diameter	4.8 mm
Bending radius	> 10 x cable diameter, movable installation > 5 x cable diameter, fixed installation
Sheath color	black (similar to RAL 9005)
Number of cores	3
Core cross section	0.5 mm2
Cores color	Core 1: black 1 Core 2: black 2 Core PE: green/yellow
Core construction	16 x 0.2 mm ∅
Length	5 m L
Cable code	Li YY 3 x 0,50
Mass	205.6 g

Material

Plug connector: Body	TPU, black
Plug connector: Seal	TPU , molded
Plug connector: Contact surface	Sn
Plug connector: Flammability	V-0
Cable: Sheathing	PVC
Cable: Cores	bare copper (Cu)
Cable: Core insulation	PVC
Cable: Oil resistance	good
Cable: Flammability	V-0
