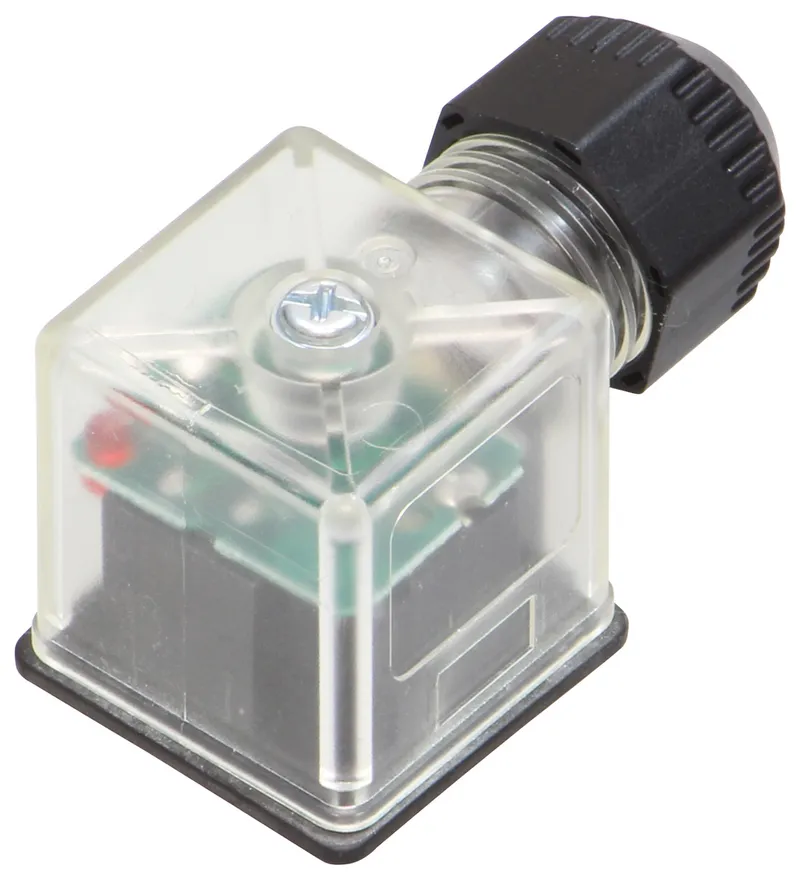

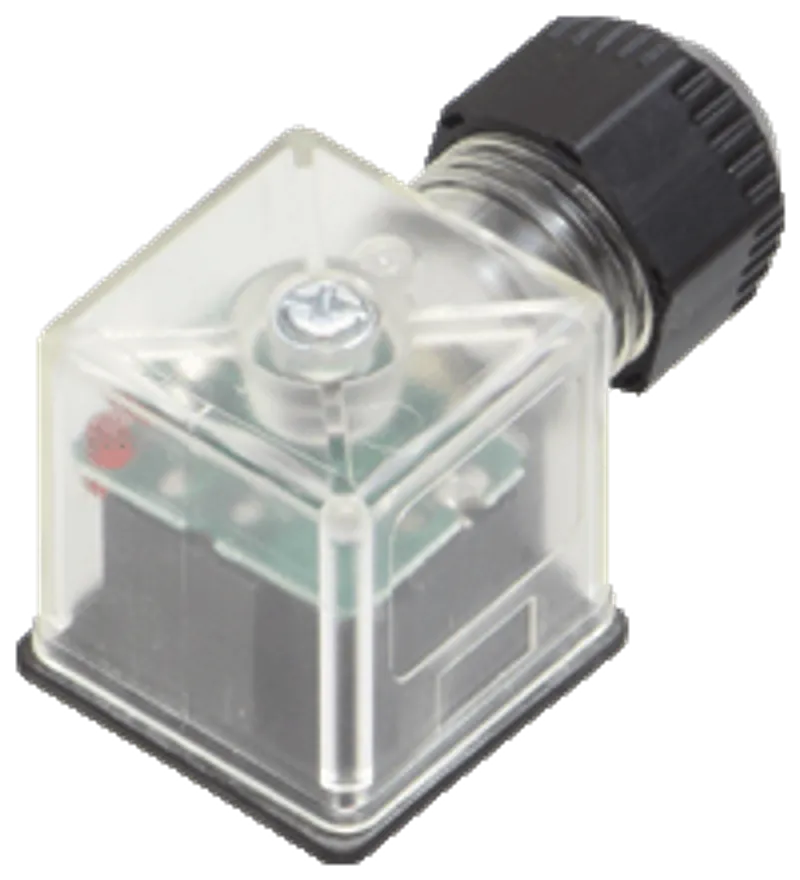

Pepperl Fuchs VMA-2+P/D2
Valve connector, non pre-wired
- MPN
- VMA-2+P/D2
- Category
- Valve Connectors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs VMA-2+P/D2?
Valve connector according EN 175301-803 A/ISO 4400 (previously DIN 43650)
Built-in LED, as operating and function indicator
Freely selectable cable outlet due to rotating insert
Seal included in the scope of delivery
Valve connector Form A, non pre-wired
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 247258 |
| Number of pins | 2 + PE |
| Connection 1 | Valve connector DIN |
| Construction type 1 | angled |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Indicators/operating means
| LED red | Operating display |
Electrical specifications
| Operating voltage | 24 V DC UB |
| Operating current | max. 16 A IB |
| Volume resistance | < 10 mΩ |

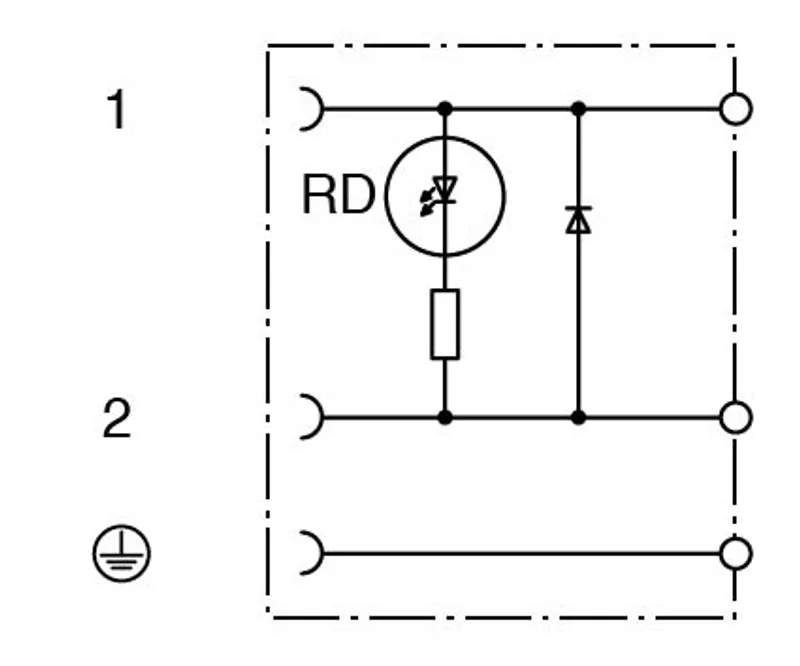

| Suppression | diode |
Ambient conditions
| Ambient temperature | -40 ... 90 °C (-40 ... 194 °F) |
Mechanical specifications
| Degree of protection | IP67 |
| Connection | Valve connector Form A Screw terminals for 0.75 mm2 ... 1.5 mm2 M16 cable gland |
| Material: Contacts | CuZn ; CuSn |
| Material: Contact surface | CuSn |
| Material: Body | PA, transparent |
| Material: Seal | NBR |
| Cable: Sheath diameter | 4 ... 9 mm |
| Mass | 26.96 g |
