.svg&w=240){kind=small}

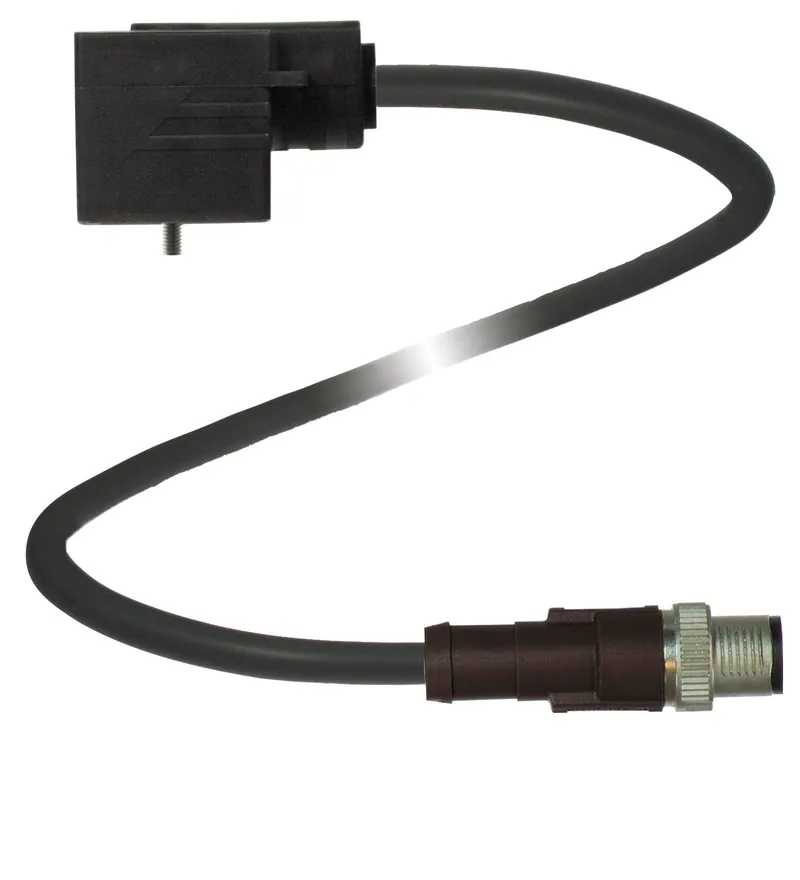

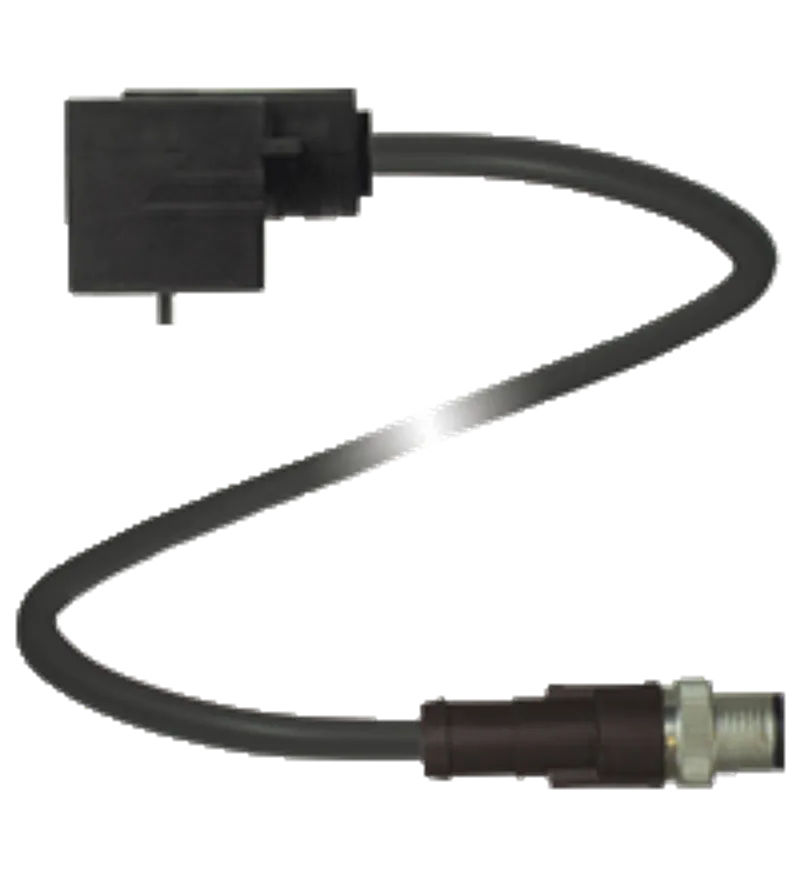

Pepperl Fuchs VMA-2+P/Z2-15M-PUR-V1-G – Valve Connector Cordset
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Valve Connectors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can VMA-2+P/Z2-15M-PUR-V1-G be shipped?
VMA-2+P/Z2-15M-PUR-V1-G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VMA-2+P/Z2-15M-PUR-V1-G in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VMA-2+P/Z2-15M-PUR-V1-G and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VMA-2+P/Z2-15M-PUR-V1-G, subject to availability and destination.
• Valve connector according EN 175301-803 A/ISO 4400
• Z diode as a protective circuit
• Built-in LED, as operating and function indicator
• Suitable for drag chains and abrasion resistant
• Moulded seal
• freely selectable cable models due to bridged protective earth
• Flame resistant cable
• Halogen-free
• Oil resistant
• Immunity to vibration
Valve connector Form A, Z-diode LED 2-pin+PE to M12 plug straight A-coded 3-pin, PUR cable black, drag chain suitable
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 249770 |
| Connector 1: Connection | Valve connector DIN |
| Connector 1: Construction type | form A |
| Connector 1: Style | angled |
| Connector 1: Locking | screw connection |
| Connector 1: Number of pins | 2 + PE |
| Connector 2: Connection | plug |
| Connector 2: Construction type | M12 |
| Connector 2: Style | straight |
| Connector 2: Locking | screw connection |
| Connector 2: Number of pins | 3 |
| Connector 2: Coding | A-coded |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Indicators/operating means
| LED yellow | Operating display |

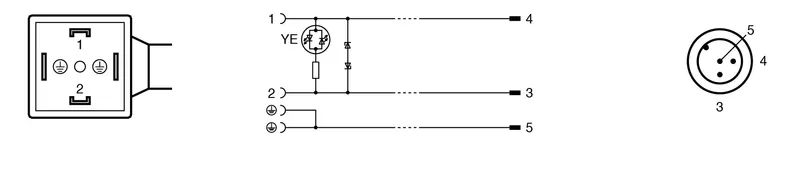

Electrical specifications
| Operating voltage | 24 V AC/DC UB |
| Operating current | max. 4 A IB |
| Suppression | Zener diode |
Conformity
| Degree of protection | EN 60529 |
| Plug connection | Valve connector : DIN EN 175301-803 connector M12 x 1 : IEC 61076-2-101 |
| Flammability | DIN VDE 0482 , DIN EN 50265-2-1 , UL 94 |
| Halogen-free | DIN VDE 0472-815 |
| UV resistance | DIN EN ISO 4892-2-A |
| Oil resistance | DIN EN 60811-2-1 |
Ambient conditions
| Ambient temperature: Connector 1 | -20 ... 85 °C (-4 ... 185 °F) |
| Ambient temperature: Connector 2 | -25 ... 90 °C (-13 ... 194 °F) |
| Ambient temperature: Cable, fixed installation | -40 ... 80 °C (-40 ... 176 °F) |
| Ambient temperature: Cable, flexing | -20 ... 80 °C (-4 ... 176 °F) |
| Pollution degree | 3 |

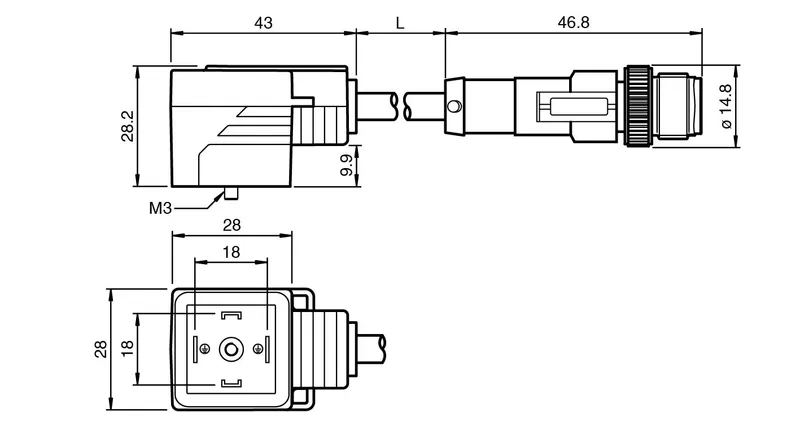

Mechanical specifications
| Connector 1: Tightening torque | 0.6 Nm |
| Connector 1: Tool installation | screw M3 x 29 |
| Connector 1: Mating cycles | min. 100 |
| Connector 2: Tightening torque | 0.6 Nm |
| Connector 2: Tool installation | straight knurling |
| Connector 2: Mating cycles | min. 100 |
| Degree of protection | IP65 / IP67 |
| Cable | according to IEC/EN 60228 (DIN VDE 0295) class 5 |
| Sheath diameter | 4.5 mm |
| Bending radius | > 10 x cable diameter, movable installation > 5 x cable diameter, fixed installation |
| Sheath color | black (similar to RAL 7021) |
| Number of cores | 3 |
| Core cross section | 0.5 mm2 |
| Cores color | Core 1-4: black Core 2-3: black Core PE-5: green/yellow |
| Core construction | 28 x 0.15 mm ∅ |
| Length | 15 m L |
| Cable code | Li 9Y 11Y 3 x 0,50 |
| Drag chain suitability: Drag chain cycles | min. 15000000 |
| Drag chain suitability: Motion velocity | max. 5 m/s |
| Drag chain suitability: Traverse distance | 0.9 m |
| Drag chain suitability: Acceleration | max. 30 m/s2 |
| Mass | 471 g |
Material
| Halogen-free | yes |
| Connector 1: Body | TPU, black |
| Connector 1: Seal | TPU , molded |
| Connector 1: Contact surface | Sn |
| Connector 1: Flammability | V-0 |
| Connector 2: Screw connection | Zinc diecast, nickel-plated |
| Connector 2: Body | TPU, black |
| Connector 2: Contact surface | Ni/Au |
| Connector 2: Flammability | HB |
| Cable: Sheathing | PUR |
| Cable: Cores | bare copper (Cu) |
| Cable: Core insulation | PP |
| Cable: UV resistance | yes |
| Cable: Oil resistance | good |
| Cable: Flammability | V-0 |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet VMA-2+P/Z2-15M-PUR-V1-G |
CAD & dimension drawings
| 3-D model (STEP) VMA-2+P/D2-10M-PUR | STP · 1.2 MB |
Certificates (1)
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 286 kB |
More Pepperl Fuchs parts

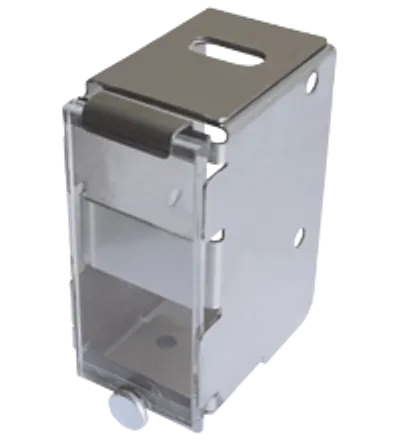

Available on requestProtective enclosure VLX-F280-C

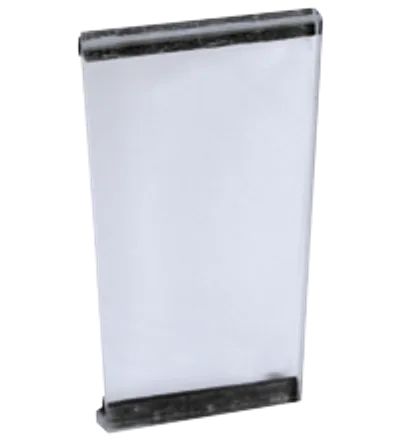

Available on requestReplacement glass VLX-F280-C-GLASS
Available on requestValve connector, non pre-wired VMA-2+P

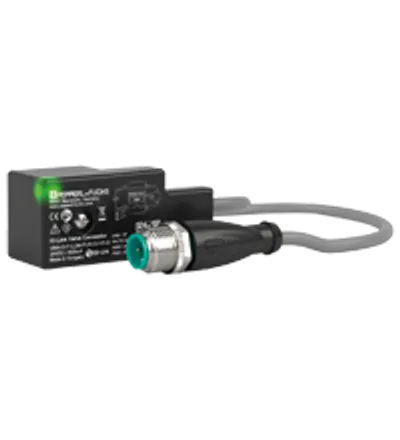

Available on requestValve Connector with IO-Link Class A VMA-2+P-0,2M-PUR-IO-V1-GAvailable on requestValve Connector with IO-Link Class B VMA-2+P-0,2M-PUR-IO-V15-G
Available on requestValve Connector Cordset VMA-2+P-0,3M-PUR
