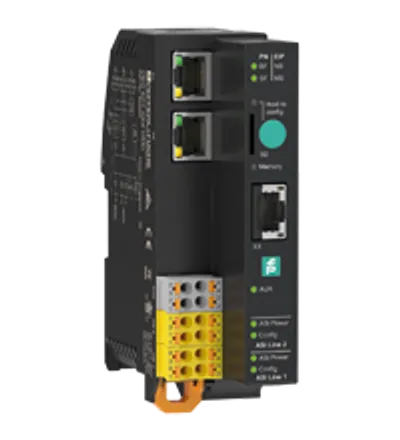

Pepperl Fuchs VBG-EP1-KE5-DMD – AS-Interface gateway
MPN: VBG-EP1-KE5-DMD · Brand: Pepperl Fuchs
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Gateways |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can VBG-EP1-KE5-DMD be shipped?
VBG-EP1-KE5-DMD is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VBG-EP1-KE5-DMD in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VBG-EP1-KE5-DMD and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VBG-EP1-KE5-DMD, subject to availability and destination.
• Multiprotocol capability for PROFINET and EtherNet/IP
• IIoT-ready thanks to REST API
• Web-based configuration
• PROFINET S2 system redundancy
• Commissioning via mobile devices possible
• Gateway compliant with AS-Interface specification 3.0

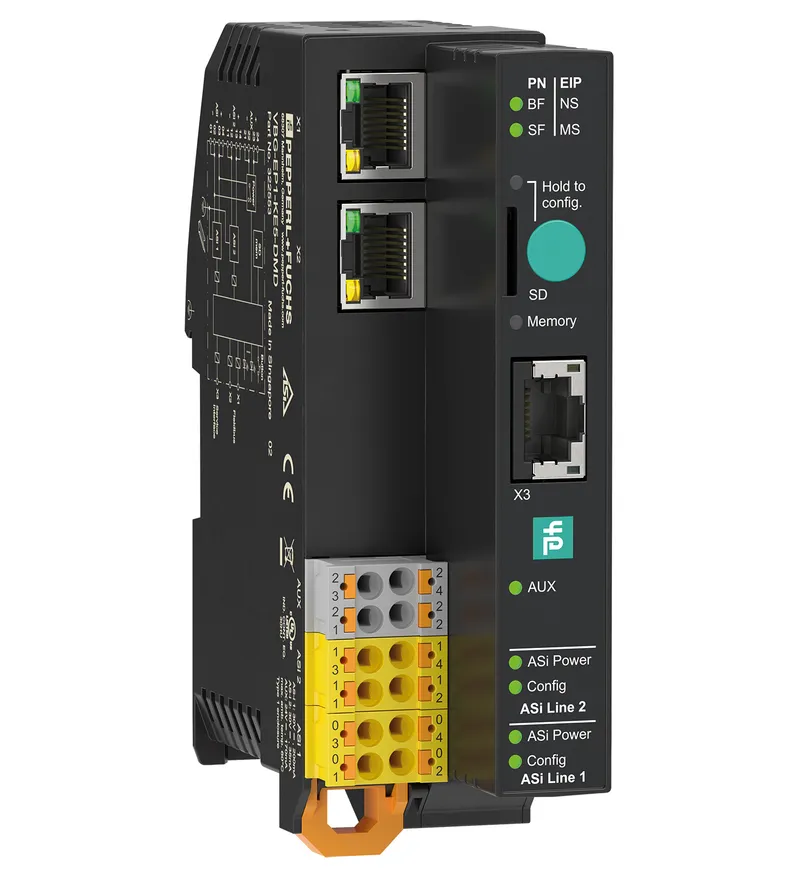

PROFINET / EtherNet/IP gateway for 2 AS-Interface networks
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 322553 |
| AS-Interface specification | V3.0 |
| Earth fault detection | integrated EFD |
| Diagnostics function | Extended function via diagnostics interface |
| UL File Number | E223772 |
| MTBF | at 40 °C 51.5 a |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Indicators/operating means
| LED indication | see manual |
| Button | see manual |
Electrical specifications
| Rated operating voltage | from AS-Interface 18 ... 31.6 V from AUX 20 ... 30 V Ue |
| Rated operating current | ≤ 220 mA from AS-Interface segment 1 ≤ 60 mA from AS-Interface segment 2 ≤ 170 mA from AUX Ie |
| Protection class | III |
| Nominal voltage | from AS-Interface 30 V DC from AUX 24 V DC UN |
Interface 1
| Interface type | Fieldbus |
| Physical | 2 x RJ-45 |
| Protocol | PROFINET IO with media redundancy protocol (MRP) and S2 system redundancy. EtherNet/IP with Device Level Ring (DLR) HTTP (REST API) |
| Transfer rate | 10 MBit/s / 100 MBit/s , Automatic baud rate detection |
| IP address | via DHCP |
Interface 2
| Interface type | Service interface |
| Physical | 1 x RJ45 |
| Transfer rate | 100 MBit/s |
| IP address | 192.168.1.2 |
Interface 3
| Interface type | SD card slot |
Connection
| Ethernet | RJ45 |
| AUX/AS-Interface | removable spring clamp terminals |
Directive conformity
| Electromagnetic compatibility: Directive 2014/30/EU | EN 62026-2:2013 EN 61000-6-2:2005, EN 61000-6-4:2007 |
Standard conformity
| Electromagnetic compatibility | EN 61000-6-2:2005, EN 61000-6-4:2007 |
| Degree of protection | EN 60529:2000 |
| AS-Interface | EN 62026-2:2013 |
| Shock resistance | EN 61131-2:2004 |
Ambient conditions
| Ambient temperature | -25 ... 60 °C (-13 ... 140 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Cold start temperature | -40 °C (-40 °F) |
| Relative humidity | ≤ 95 % non-condensing |
| Altitude | ≤ 5000 m above MSL [Ambient temperature max. 40 °C) |
Mechanical specifications
| Degree of protection | IP20 (Manufacturer declaration) |
| Material | PA 66-FR |
| Mass | 185 g |
| Dimensions: Height | 125 mm |
| Dimensions: Width | 38 mm |
| Dimensions: Length | 99 mm |
| Construction type | DIN-rail mounting |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet VBG-EP1-KE5-DMD | |
| Manual | PDF · 115.7 MB |
| Manual VBG-EP1-KE5-D*, Firmware version: 2.20 | PDF · 19.6 MB |
| Manual VBG-EP1-KE5-D*, Firmware version: 2.16 | PDF · 18.1 MB |
| PROFINET: Changeover from ASi gateways type K20 to KE5 | PDF · 981 kB |
| EtherNet/IP: Changeover from ASi gateways type K20 to KE5 | PDF · 1.8 MB |
| Manual VBG-EP1-KE5-D*, Firmware version 2.8 | PDF · 19.9 MB |
| Manual VBG-EP1-KE5-D*, Firmware version 2.3 | PDF · 17.3 MB |

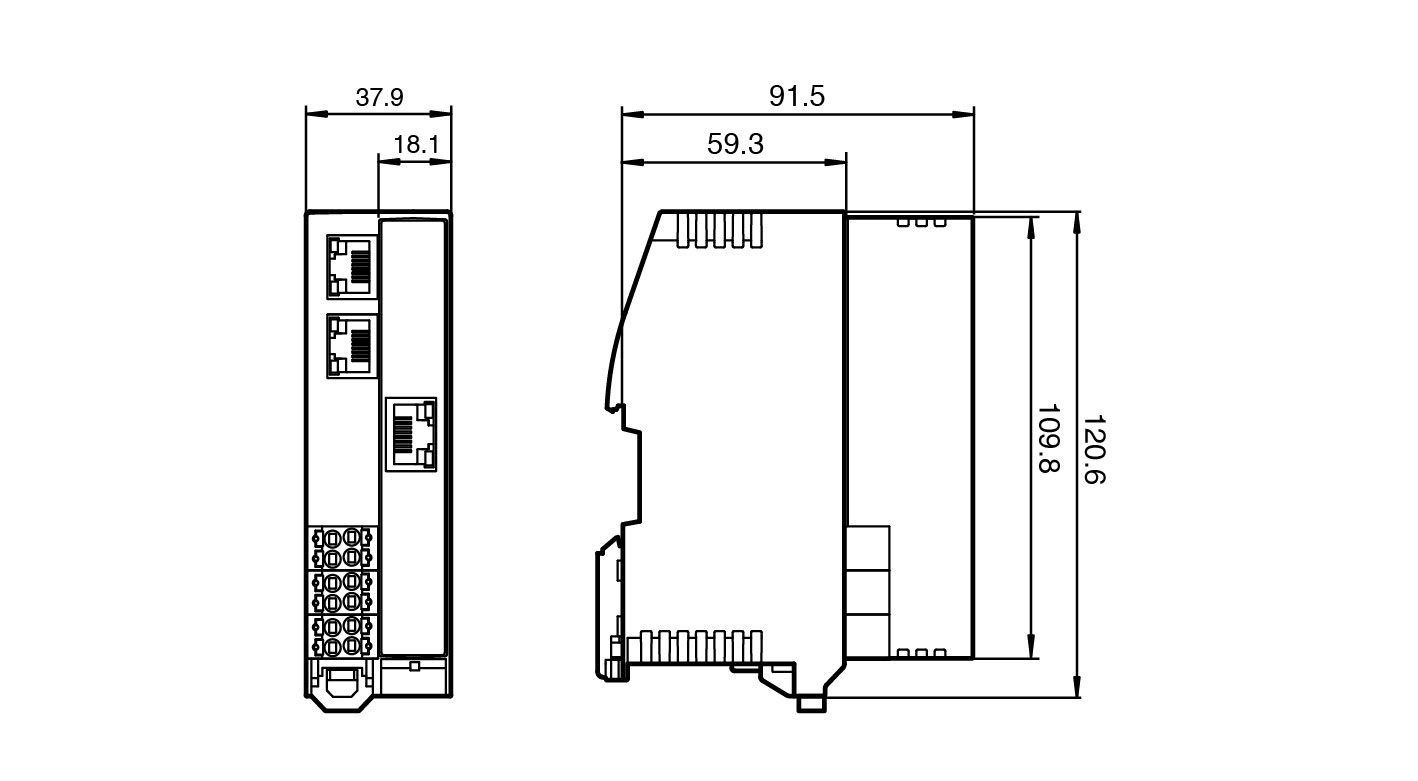

CAD & dimension drawings
| EPLAN macro VBG-EP1-KE5-DMD | EDZ · 10.5 MB |
| 3-D model (STEP) VBG-EP1-KE5-D | STP · 23.0 MB |
Certificates (4)
| CA US UL AS-Interface (CoC E223772 RptRef E223772-20210323) | PDF · 416 kB |
| ODVA (12286.01) | PDF · 137 kB |
| AS-International Association (135901) | PDF · 207 kB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 117 kB |
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
More Pepperl Fuchs parts
Available on requestAS-Interface gateway VBG-CCL-K20-D-BVMPN: VBG-CCL-K20-D-BV · Pepperl Fuchs
Price on request
Request a quote

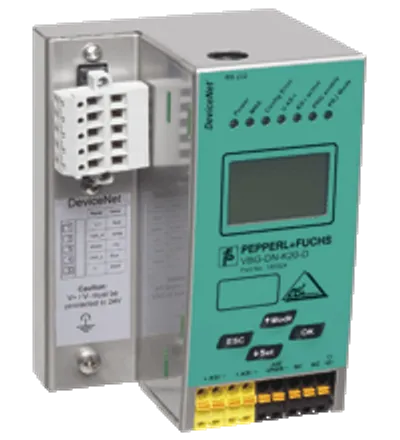

Available on requestAS-Interface gateway VBG-DN-K20-DMPN: VBG-DN-K20-D · Pepperl Fuchs
