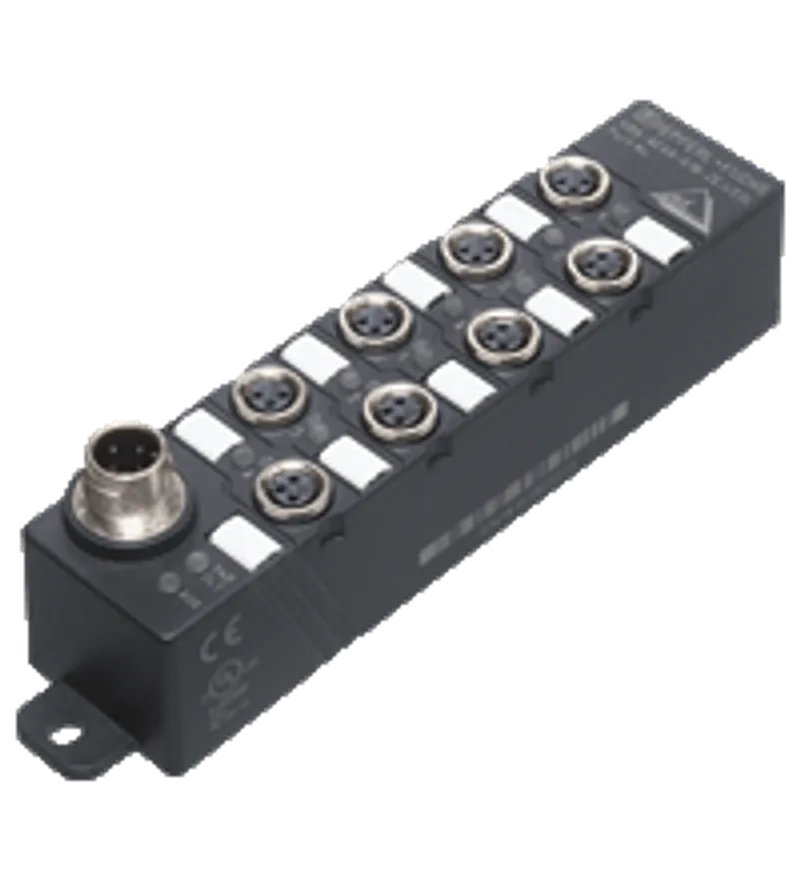

AS-Interface sensor/actuator module VBA-4E4A-G16-ZEJ/E2L — photo 1 of 3

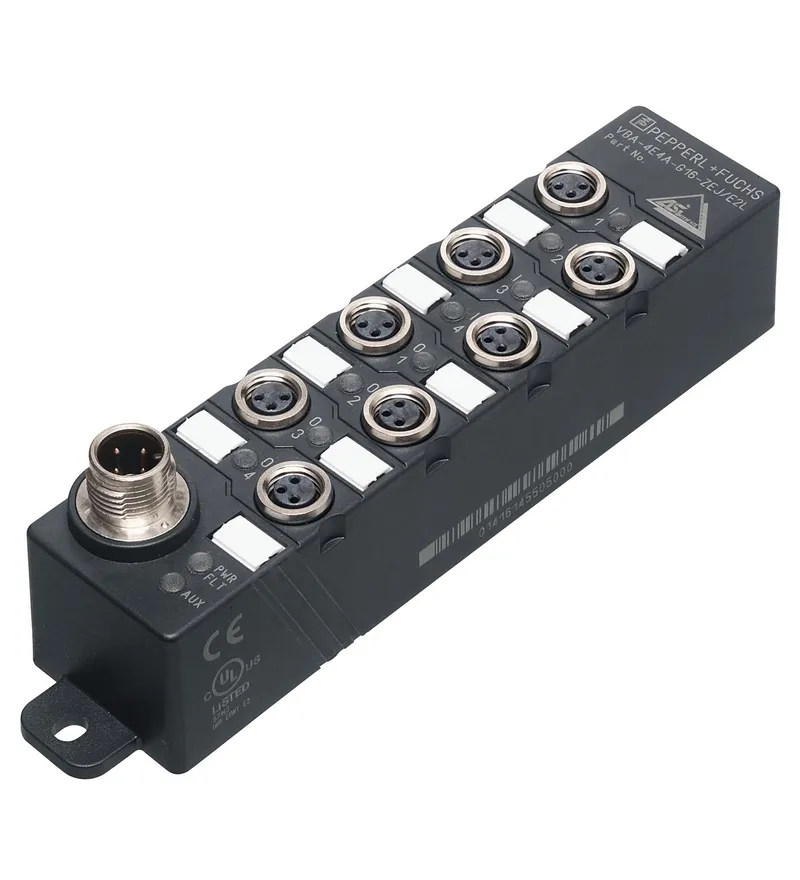

AS-Interface sensor/actuator module VBA-4E4A-G16-ZEJ/E2L — photo 2 of 3

AS-Interface sensor/actuator module VBA-4E4A-G16-ZEJ/E2L — photo 3 of 3

Available on request

Pepperl Fuchs VBA-4E4A-G16-ZEJ/E2L – AS-Interface sensor/actuator module

MPN: VBA-4E4A-G16-ZEJ/E2L · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Modules
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can VBA-4E4A-G16-ZEJ/E2L be shipped?

VBA-4E4A-G16-ZEJ/E2L is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up VBA-4E4A-G16-ZEJ/E2L in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for VBA-4E4A-G16-ZEJ/E2L and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VBA-4E4A-G16-ZEJ/E2L, subject to availability and destination.

• Compact design

• Connections via round connector

• AS-Interface connection via M12 metal threaded insert with SPEEDCON

• Function display for bus, ext. auxiliary voltage, inputs and outputs

• Degree of protection IP67 / IP68 / IP69K

• Inputs for 2- and 3-wire sensors

• Supply for inputs from AS-Interface

• Power supply of outputs from the external auxiliary voltage

• Communication monitoring

• Detection of overload on sensor supply

• Detection of output overload with LED per channel

G16 compact module, 4 inputs (PNP) and 4 electronic outputs

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	188851
Node type	A/B node
AS-Interface specification	V3.0
Required gateway specification	≥ V3.0
Profile	S-7.A.7
IO code	7
ID code	A
ID1 code	7
ID2 code	7
UL File Number	E223772
Lifecycle	Active (current Pepperl+Fuchs product)

Indicators/operating means

LED PWR/FAULT	Status display; multi-colour LED Green: normal operation Red: communication fault Flashing yellow/red: address 0 Flashing green/red: sensor supply or output overload
LED AUX	ext. auxiliary voltage UAUX; dual LED green/red green: voltage OK red: reverse voltage
LED IN	switching state (input); 4 LED yellow
LED OUT	Switching status (output); 4 yellow/red LEDs Yellow: output active Red: output overload

Electrical specifications

Auxiliary voltage (output)	20 ... 30 V DC PELV UAUX
Rated operating voltage	26.5 ... 31.6 V from AS-Interface Ue
Rated operating current	≤ 40 mA (without sensors) / max. 240 mA Ie
Protection class	III
Surge protection	UAUX, Uin: Over voltage category III, safe isolated power supplies (PELV)

Input

Number/Type	4 inputs for 2- or 3-wire sensors (PNP), DC
Supply	from AS-Interface
Voltage	21 ... 31 V
Current loading capacity	≤ 200 mA (TB ≤ 40 °C), ≤ 150 mA (TB ≤ 70 °C), overload-proof and short-circuit protected
Input current	≤ 9 mA (limited internally)
Switching point	according to DIN EN 61131-2 (Type 2)
0 (unattenuated)	≤ 3 mA
1 (attenuated)	≥ 5 mA
Signal delay	< 1 ms (input/AS-Interface)

Output

Number/Type	4 electronic outputs, PNP, overload and short-circuit proof
Supply	from external auxiliary voltage UAUX
Voltage	≥ (UAUX - 0.5 V)
Current	1 A per output
Usage category	DC-13

Directive conformity

Electromagnetic compatibility: Directive 2014/30/EU

EN 62026-2:2013 EN 61000-6-2:2005, EN 61000-6-4:2007

Standard conformity

Degree of protection	EN 60529:2000
Fieldbus standard	EN 62026-2:2013
Input	EN 61131-2
Emitted interference	EN 61000-6-4:2007
AS-Interface	EN 62026-2:2013
Noise immunity	EN 61000-6-2:2005 EN 62026-2:2013

Ambient conditions

Ambient temperature	-25 ... 70 °C (-13 ... 158 °F)
Storage temperature	-25 ... 85 °C (-13 ... 185 °F)
Relative humidity	85 % , non-condensing
Climatic conditions	For indoor use only
Altitude	≤ 2000 m above MSL
Shock and impact resistance	30 g, 11 ms in 6 spatial directions 3 shocks 10 g, 16 ms in 6 spatial directions 1000 shocks
Vibration resistance	0.75 mm 10 ... 57 Hz , 5 g 57 ... 150 Hz, 20 cycles
Pollution degree	3

Mechanical specifications

Degree of protection	IP67 / IP68 / IP69k
Connection	AS-Interface and auxiliary voltage: M12 x 1 round connector sensors/actuators: M8 x 1 round connector
Material: Housing	PBT
Mass	150 g
Tightening torque, cable gland	0.4 Nm (M12 connector),0.2 Nm (M8 connector)

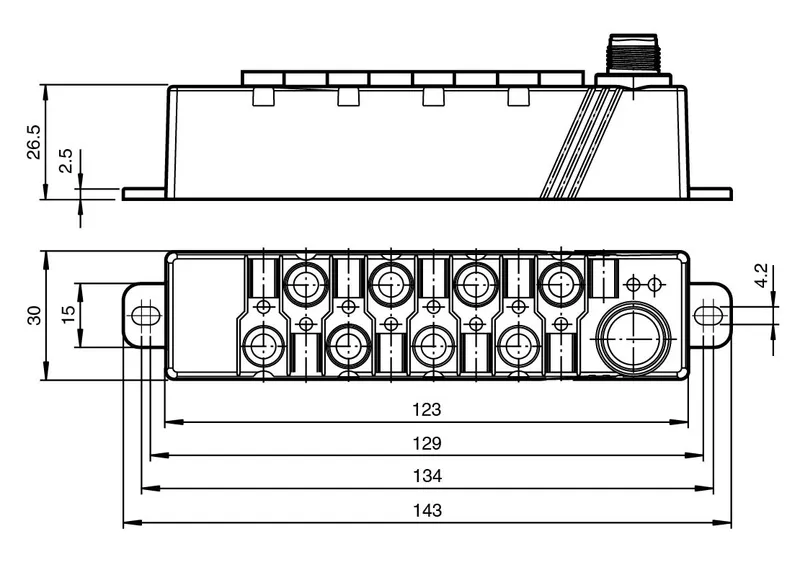

Dimensions: Height	29.35 mm
Dimensions: Width	30 mm
Dimensions: Length	143 mm
Mounting	screw mounting

Downloads & documentation

Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet VBA-4E4A-G16-ZEJ/E2L	PDF
Commissioning Instructions	PDF · 1.0 MB

CAD & dimension drawings

3-D model (STEP) VAA-4E4A-G16-ZEJ/E2L	STP · 3.0 MB
EPLAN macro VBA-4E4A-G16-ZEJ/E2L	EDZ · 373 kB

Certificates (3)

Canada, USA UL (CoC 20141115-E223772)	PDF · 349 kB
EU Declaration of Conformity (Pepperl+Fuchs)	PDF · 117 kB
Worldwide AS-International Association AS-Interface (77902)	PDF · 604 kB

12-month warrantyon all new stock

3-month warrantyon used & refurbished parts

30-day returnsno restocking fee on unused parts

Global shippingFast, tracked delivery worldwide
