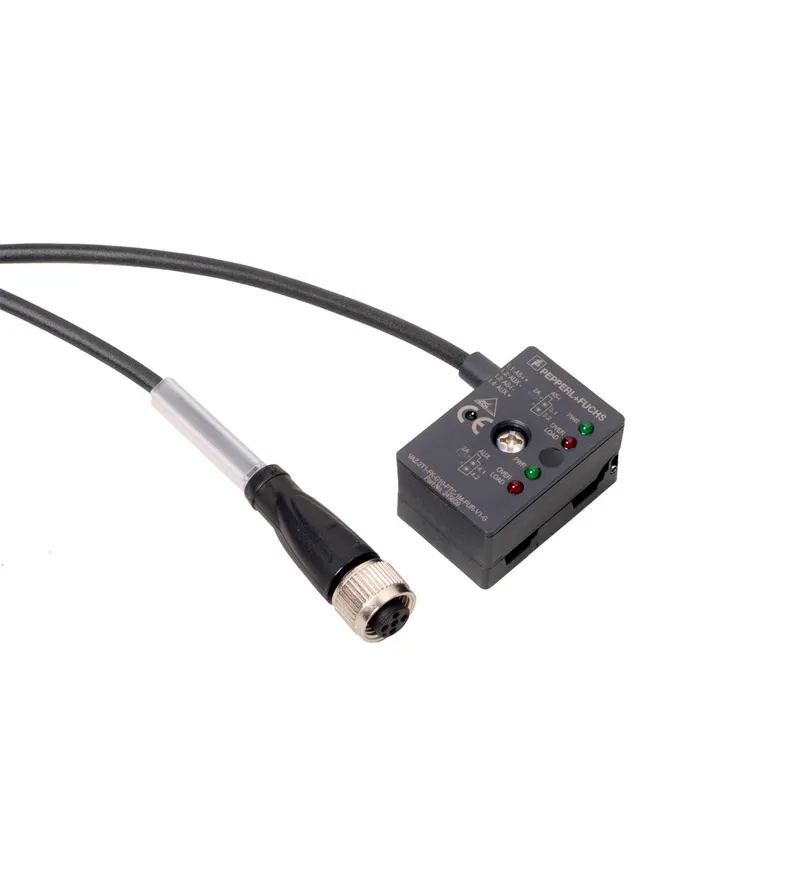

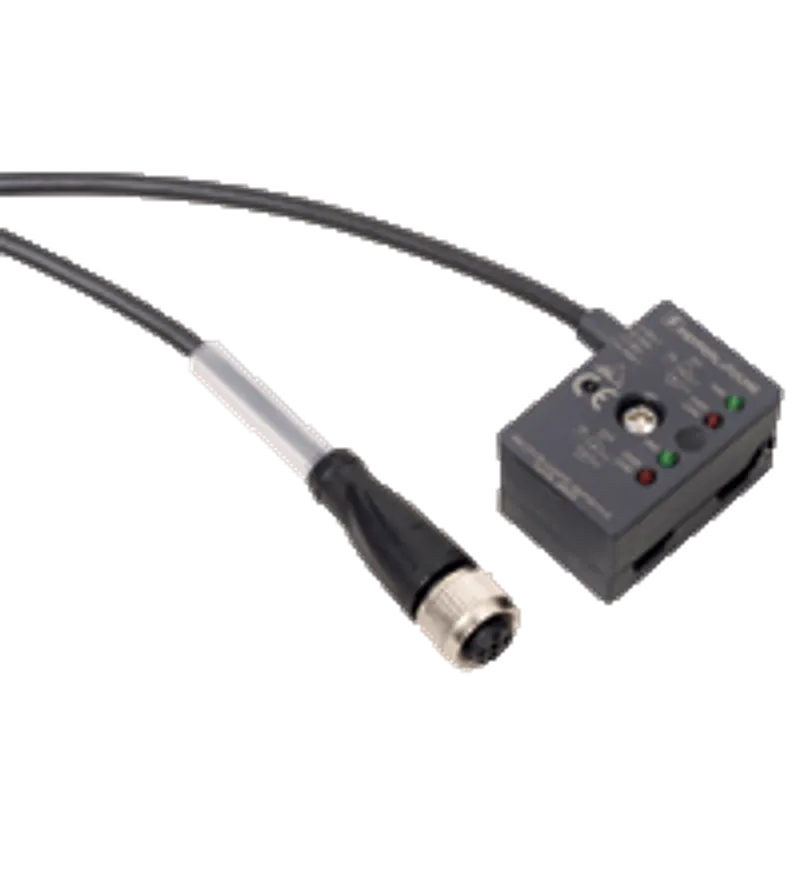

Pepperl Fuchs VAZ-T1-FK-G10-F-5M-PUR-V1-G

AS-Interface splitter box

MPN
VAZ-T1-FK-G10-F-5M-PUR-V1-G
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Pepperl Fuchs parts? We buy surplus →

What is the Pepperl Fuchs VAZ-T1-FK-G10-F-5M-PUR-V1-G?

One piece housing

Simple and fast mounting

Fuse with LED display

Gold-plated and machined contacts

Oil and abrasion resistant PUR line appropriate for drag chains

Immunity to vibration

Degree of protection IP68 / IP69K

Halogen-free

G10 junction block, LED status indication, AS-Interface to 1x M12 round plug connector

Specifications

General specifications

Order code (Pepperl+Fuchs part number)70204149
Construction typeSocket, straightFlat cable terminal AS-Interface
LifecycleActive (current Pepperl+Fuchs product)

Indicators/operating means

LED FAULTLED red: Fuse unit blown
LED PWRLED green: normal operation

Electrical specifications

Rated operating voltage10 ... 32 V PELV Ue
Protection classIII
Short-circuit currentmax. 50 A Ik
Surge protectionUe: Over voltage category III, safe isolated power supplies (PELV)

Output

Current loading capacityRated current of the fuse: 1.6 A Continous operation: 1.2 A
Voltage drop≤ 0.4 V Ud
Overload protectionFuse acc. to UL248-1, UL248-14

Compliance with standards and directives

Directive conformity: EMC Directive 2004/108/ECEN 61000-6-2:2005, EN 61000-6-4:2007
Standard conformity: Noise immunityEN 61000-6-2:2005
Standard conformity: Emitted interferenceEN 61000-6-4:2007
Standard conformity: Degree of protectionEN 60529:2000

Approvals and certificates

UL approvalcULus Listed, Type 1 enclosure
Applicationfor use in NFPA 79 applications
Maximum permissible operating voltagemax. 32 V
Maximum permissible operating currentmax. 1.6 A
Maximum permissible ambient temperaturemax. 55 °C (max. 131 °F)
UL File NumberE223772

Ambient conditions

Ambient temperature-25 ... 70 °C (-13 ... 158 °F)
Storage temperature-25 ... 85 °C (-13 ... 185 °F)

Mechanical specifications

Degree of protectionIP67 IP67 / IP68 / IP69K with flat cable VAZ-FK-S-*
ConnectionFlat cable AS-Interface: cable piercing methodPlug connection: M12 x 1 socket (V1)
Material: ContactsCuSn / Au
Material: HousingPBT PC
Material: BodyPUR, black
Material: CablePUR
Material: Mounting screwStainless steel 1.4305 / AISI 303
Cable: Sheath diameter∅4,3 mm
Cable: Colorblack
Cable: Cores2 x 0.34 mm2
Cable: Length5 m L
Mass70 g
Tightening torque, fastening screws1.65 Nm
Tightening torque, cable gland0.4 Nm

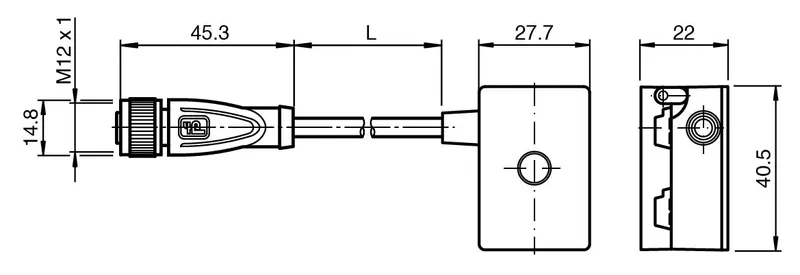

Dimensions: Height22 mm
Dimensions: Width27.7 mm
Dimensions: Length40.5 mm
NoteThe unused flat cable connector is closed with a seal.
