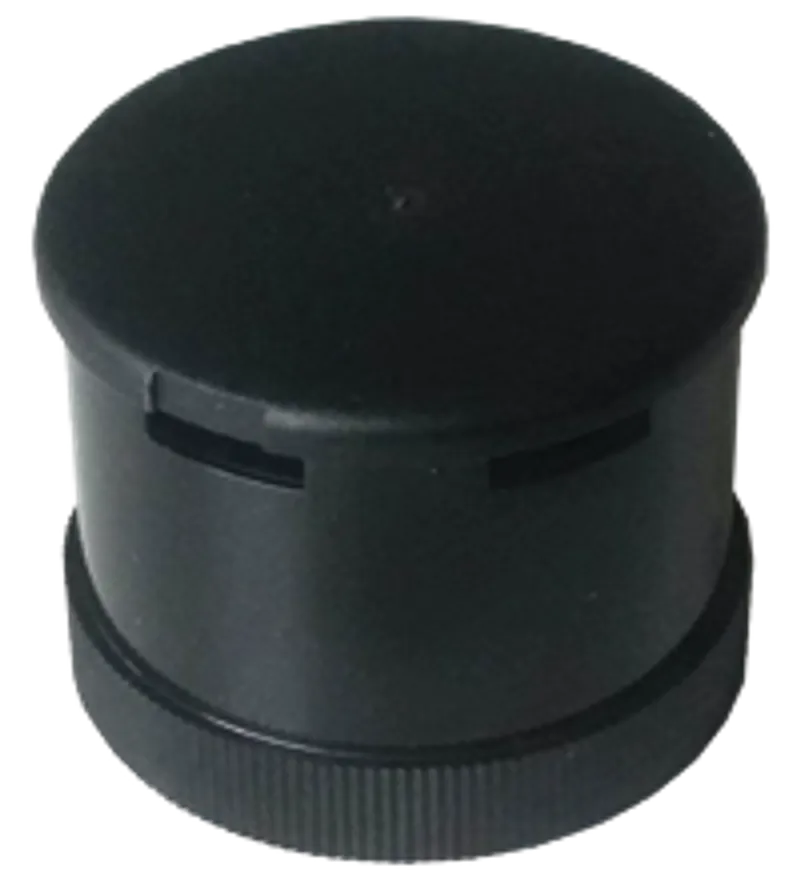

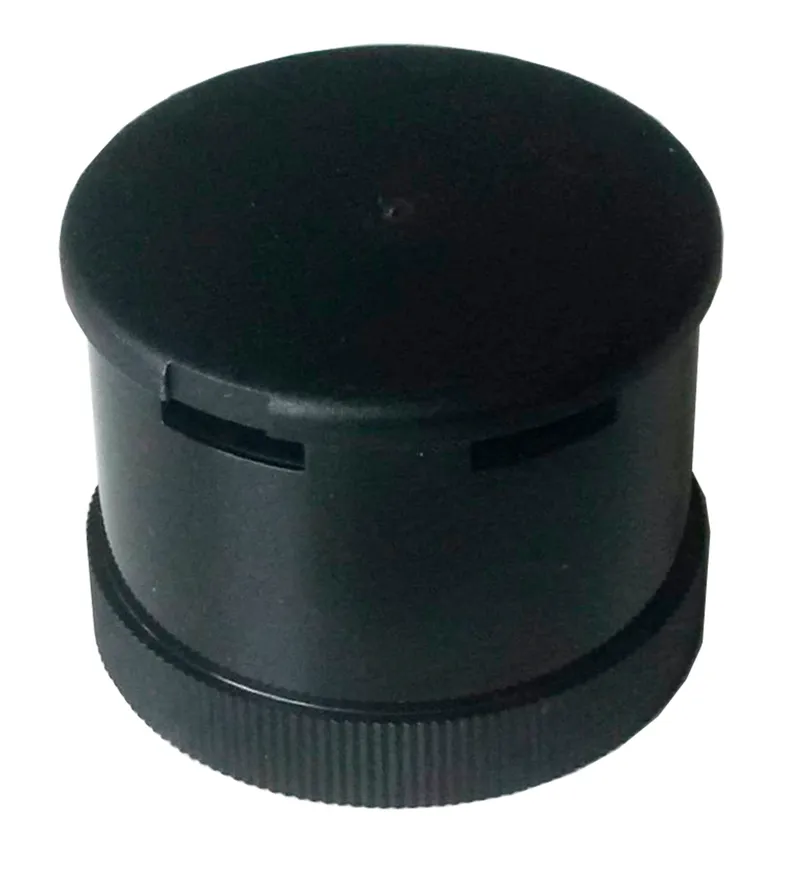

Pepperl Fuchs VAZ-HORN-70MM-105DBA – Stack light audible alarm
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Indication / Operation |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can VAZ-HORN-70MM-105DBA be shipped?
VAZ-HORN-70MM-105DBA is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VAZ-HORN-70MM-105DBA in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VAZ-HORN-70MM-105DBA and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VAZ-HORN-70MM-105DBA, subject to availability and destination.
• Modular design
• Bayonet system for simple mounting and dismounting
• 70-mm-series
Stack light audible alarm
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 301479 |
| UL File Number | E223176 |
| Color | black |
| Frequency | approx. 2.5/3.5 kHz Alternating |
| Loudness | 105 dB |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| MTTFd | 1100 a |
Electrical specifications
| Rated operating voltage | 24 V DC ± 10 % Ue |
| Current consumption | 40 mA |
| Surge protection | overvoltage category II |
| Inrush current | max. 100 mA |
Directive conformity
| Electromagnetic compatibility: Directive 2014/30/EU | EN 60947-5-1:2004+A1:2009 EN 60947-1:2007 |
Standard conformity
| Degree of protection | EN 60529:2000 |
Ambient conditions
| Ambient temperature | -20 ... 50 °C (-4 ... 122 °F) |
| Pollution degree | 3 |
Mechanical specifications
| Degree of protection | IP65 (mounted) |
| Connection | Bayonet system |
| Material: Housing | PC |

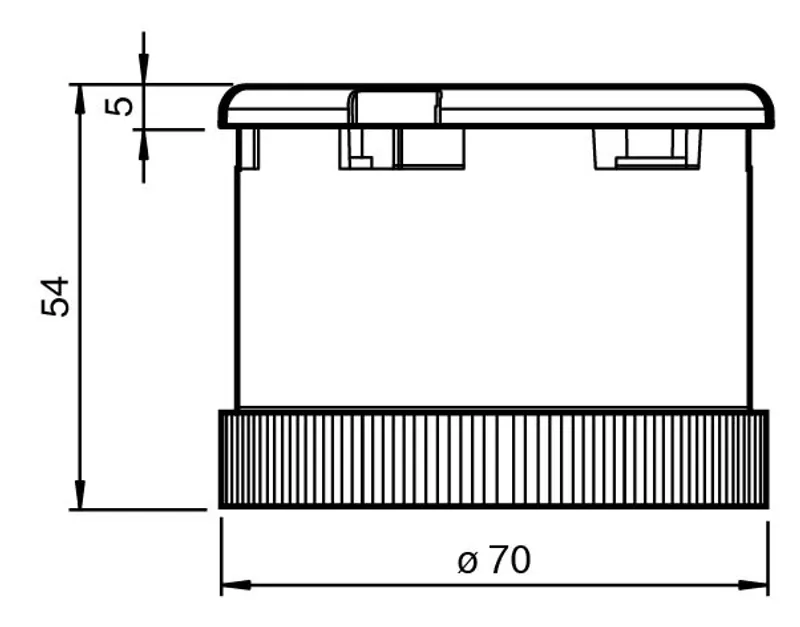

| Dimensions: Height | 54 mm |
| Dimensions: Diameter | 70 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet VAZ-HORN-70MM-105DBA | |
| Instruction Manual Stack Lights | PDF · 1.1 MB |
Certificates (2)
| CA US UL (CoC E223176 RptRef E223176-20080912) | PDF · 291 kB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 110 kB |
More Pepperl Fuchs parts

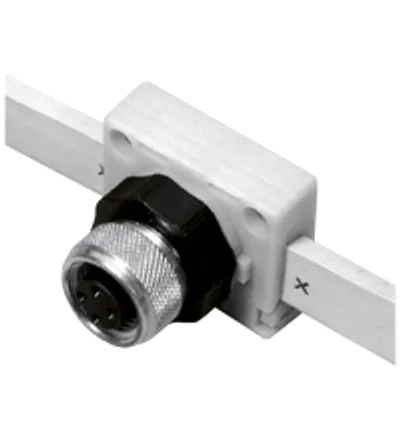

Available on requestAS-Interface splitter box VAZ-G6F-V1

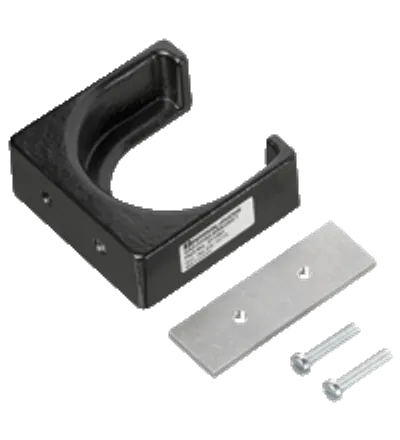

Available on requestBracket for VAA-3E-HH30-J-S-V1 VAZ-HH30-BRACKET

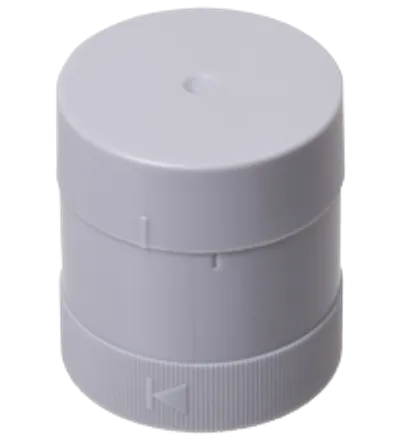

Available on requestStack light siren element VAZ-HORN-40MM-85DBA-2TONE

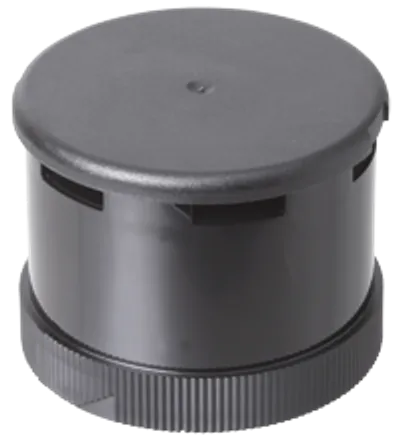

Available on requestStack light siren element VAZ-HORN-70MM-0..100DBA-8TONE

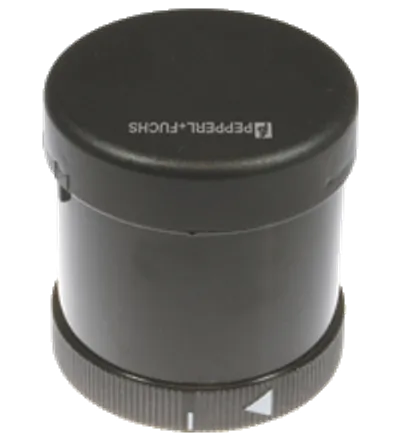

Available on requestStack light audible alarm VAZ-HORN1-70MM-85DBA

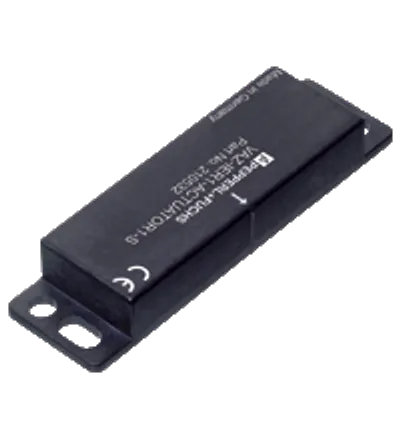

Available on requestActivator VAZ-IER1-ACTUATOR1-S
Available on requestActivator VAZ-IER2-ACTUATOR2-S

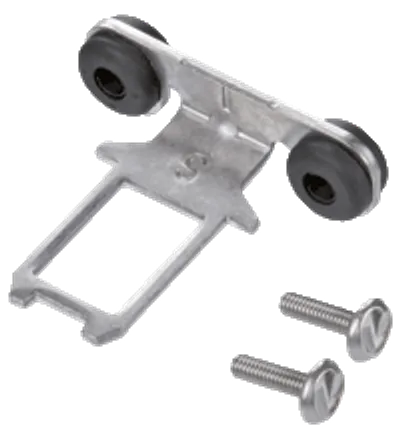

Available on requestActuator for safety switches VAZ-IM1-90°-BOLT-S
