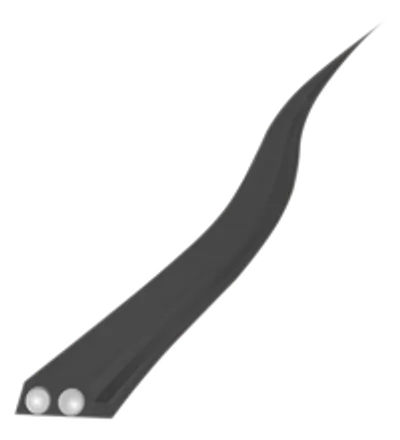

AS-Interface flat cable VAZ-FK-S-BK-2,5MM-500M — photo 1 of 3

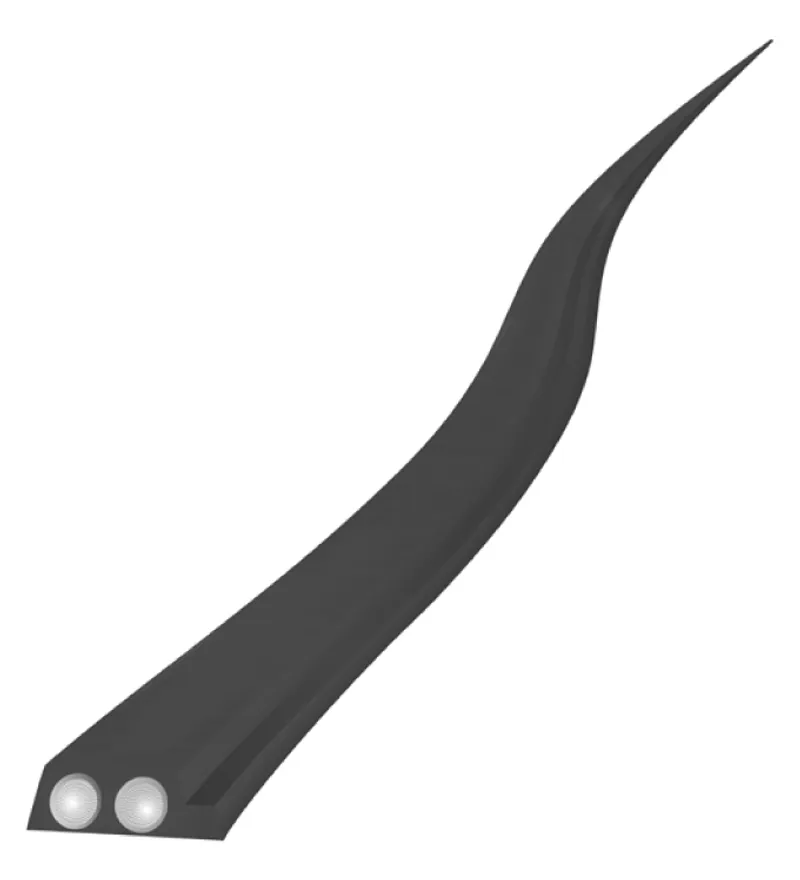

AS-Interface flat cable VAZ-FK-S-BK-2,5MM-500M — photo 2 of 3

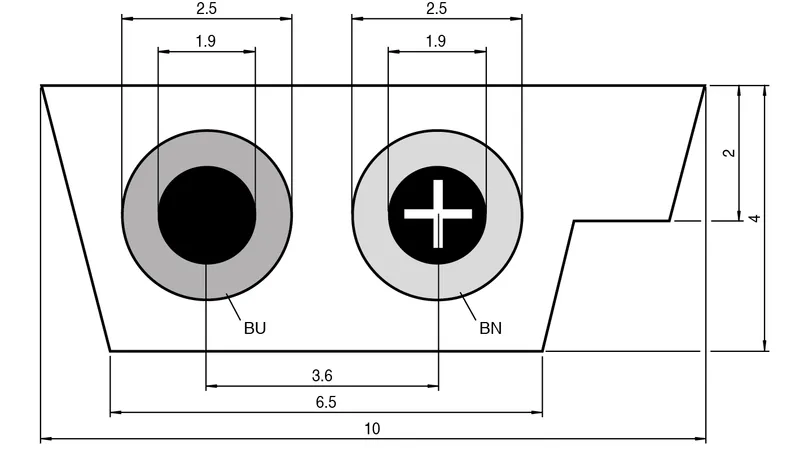

AS-Interface flat cable VAZ-FK-S-BK-2,5MM-500M — photo 3 of 3

Available on request

Pepperl Fuchs VAZ-FK-S-BK-2,5MM-500M – AS-Interface flat cable

MPN: VAZ-FK-S-BK-2,5MM-500M · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Bulk Raw Cable
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can VAZ-FK-S-BK-2,5MM-500M be shipped?

VAZ-FK-S-BK-2,5MM-500M is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up VAZ-FK-S-BK-2,5MM-500M in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for VAZ-FK-S-BK-2,5MM-500M and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VAZ-FK-S-BK-2,5MM-500M, subject to availability and destination.

• Cable piercing technique

• Resistant to environmental influence

• Resistant to bending

• Reverse polarity protected due to the shape of the cable

• Halogen-free (PVC-free)

• Does not give off silicone

• Graduations in meters

AS-Interface flat cable for external auxiliary voltage up to 24 V

Specifications

Electrical specifications

Order code (Pepperl+Fuchs part number)	282770
Nominal voltage	24 V UN
Current loading capacity	According to DIN VDE 0298 Part 4, Table 6, Column 4
Lifecycle	Active (current Pepperl+Fuchs product)

Ambient conditions

Conductor temperature	Operating mode: 90 °C (363 K)Short-circuit: 200 °C (473 K)
Ambient temperature: Cable, fixed installation	-40 ... 85 °C (-40 ... 185 °F)
Ambient temperature: Cable, flexing	-25 ... 85 °C (-13 ... 185 °F)

Mechanical specifications

Core cross section	Copper, extra-fine wire, class 6 in accordance with DIN VDE 0295cross-section 2.5 mm2
Bending radius	min. permissible bend radii in accordance with DIN VDE 0298 Part 3, Table 2Bending stress only permitted on the wide side of the cable
Tension loading	max. 50 N/mm2 on laying acc. to DIN VDE 0298 Part 3
Material	Thermoplastic Elastomer (TPE) Rubber compound EM3, based on DIN VDE 0207 Part 21
Core insulation	Thermoplastic Elastomer (TPE)
Cable: Sheath color	black (similar to RAL 9005)
Cable: Number of cores	2
Cable: Cores color	Core 1: brown Core 2: blue
Cable length	500 m
