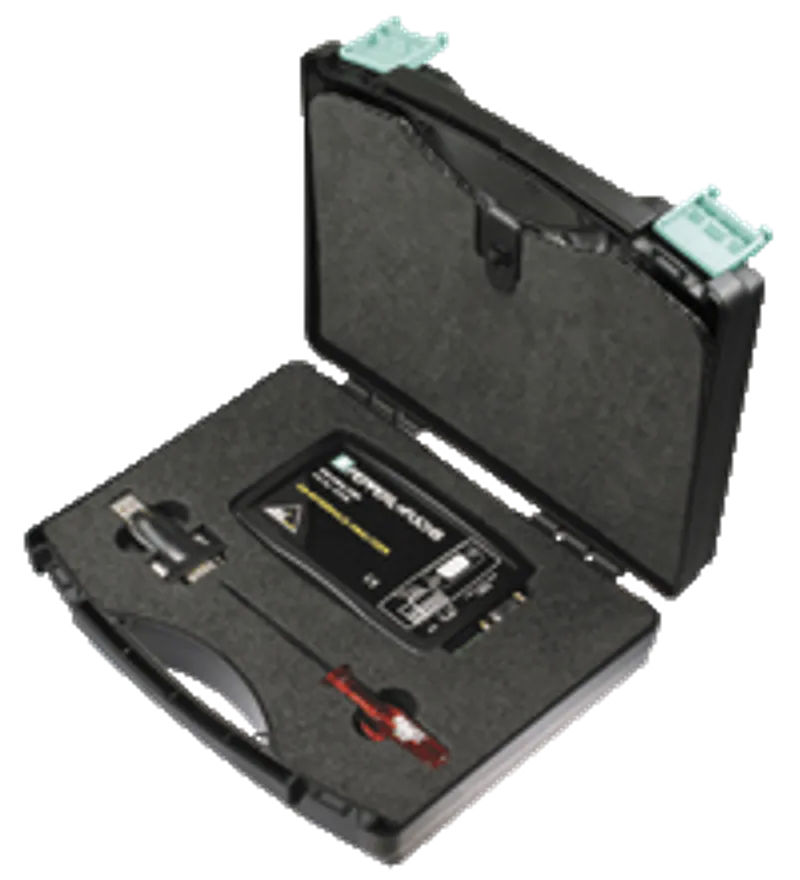

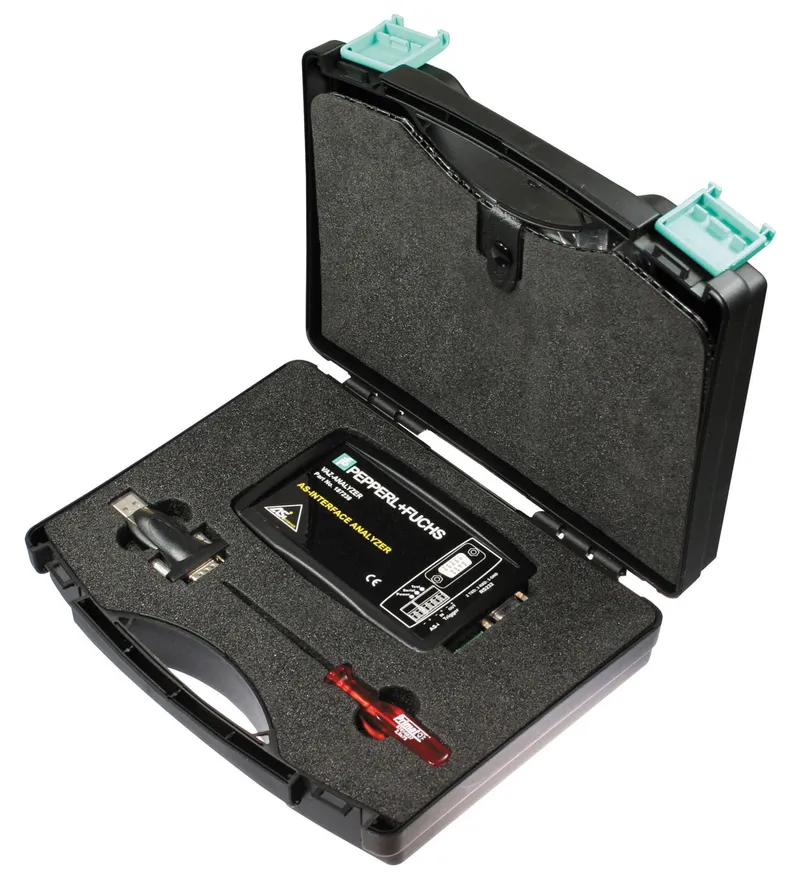

Pepperl Fuchs VAZ-ANALYZER
AS-Interface Analyzer
- MPN
- VAZ-ANALYZER
- Category
- Sensor Testers and Tools
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs VAZ-ANALYZER?
Trigger function
Telegram memory
Error statistic with benchmark
Actual value indication
Visualization and Evaluation Software on the PC
AS-Interface Analyzer
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 187238 |
| AS-Interface specification | V3.0 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| MTTFd | 280 a at 30 °C |
Memory
| Telegram memory | 256000 AS-Interface Telegrams |
Indicators/operating means
| LED POWER | AS-Interface voltage; LED green |
| LED SER ACTIVE | interface in operation; LED green |
| LED Test | Test mode; LED green/red |
Electrical specifications
| Insulation voltage | ≥ 500 V Ui |
| Rated operating current | approx. 70 mA Ie |
| Power supply | from AS-Interface |
Interface
| Interface type | AS-Interface: Screw terminalTrigger: Screw terminal (Input: 24 V; Output: TTL)PC: RS 232 with 9-pin Sub-D Socket |
Ambient conditions
| Ambient temperature | 0 ... 55 °C (32 ... 131 °F) |
| Storage temperature | -25 ... 70 °C (-13 ... 158 °F) |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
Certificates (1)
