Pepperl Fuchs VAA-4E-G2-ZA – AS-Interface sensor module

MPN: VAA-4E-G2-ZA · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Modules
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can VAA-4E-G2-ZA be shipped?

VAA-4E-G2-ZA is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up VAA-4E-G2-ZA in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for VAA-4E-G2-ZA and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VAA-4E-G2-ZA, subject to availability and destination.

• AS-Interface certificate

• Degree of protection IP67

• Addressing jack

• Flat cable connection with cable piercing technique, variable flat cable guide

• Inputs for 2- and 3-wire sensors

• Power supply of inputs from the module

• Function display for bus and inputs

• Monitoring of sensor overloads

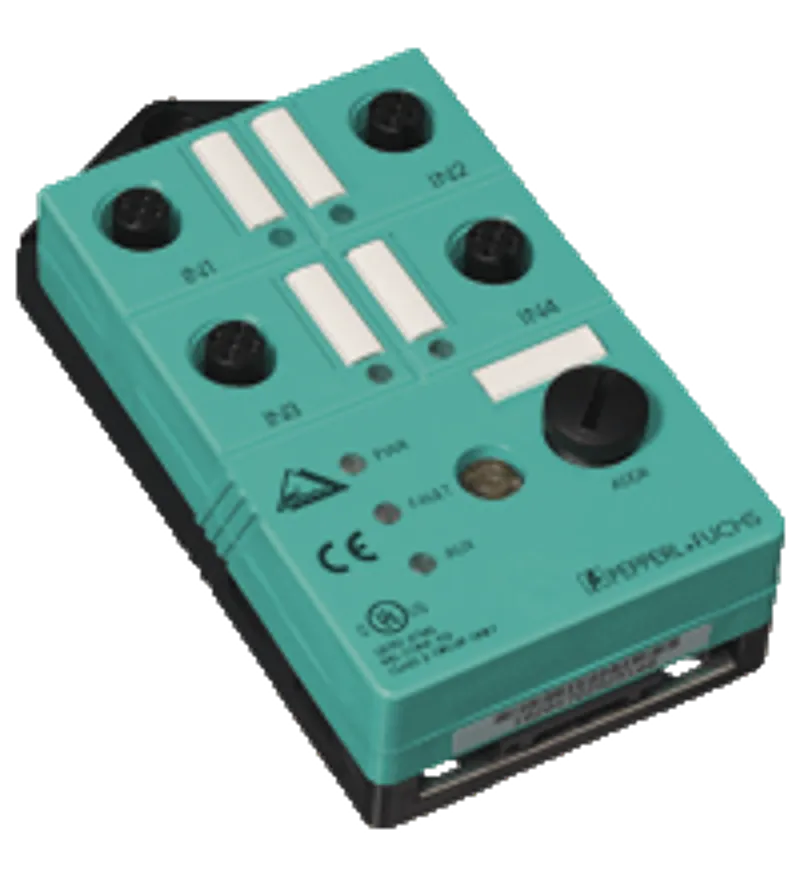

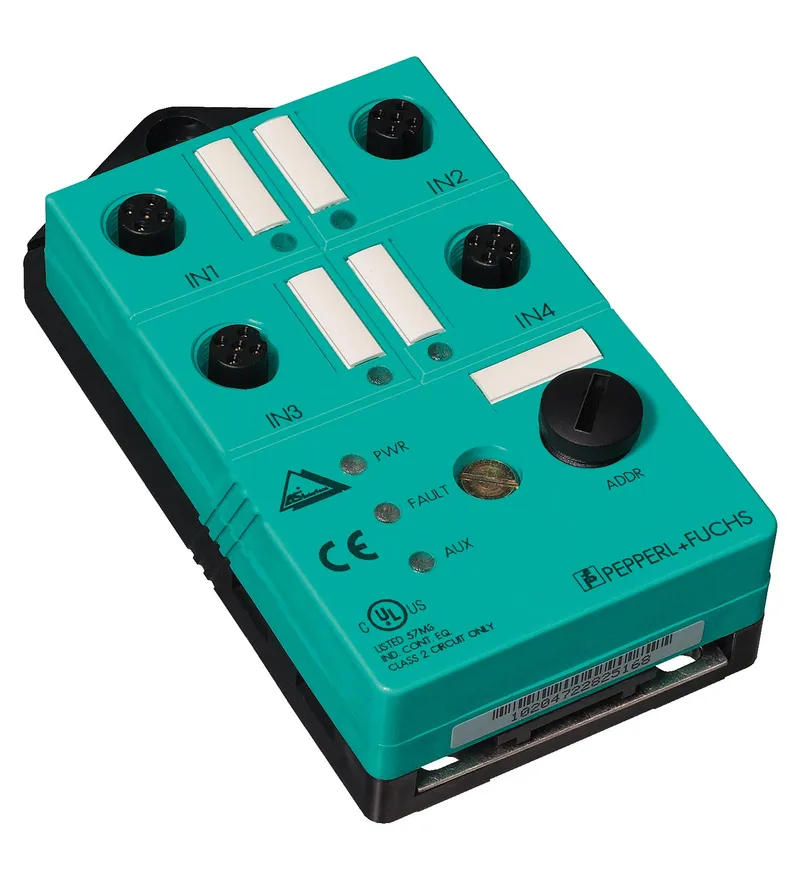

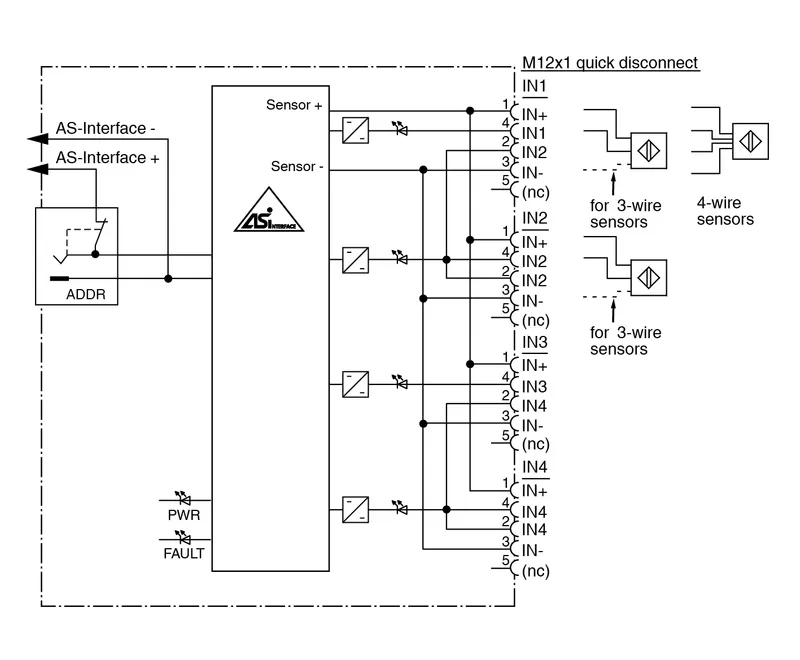

G2 flat module, 4 inputs (PNP)

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	187746
Node type	Standard node
AS-Interface specification	V3.0
Required gateway specification	≥ V2.0
UL File Number	E223772
Lifecycle	Active (current Pepperl+Fuchs product)

Indicators/operating means

LED FAULT	error display; LED red red: communication error or address is 0 red flashing: overload of sensor supply
LED PWR	AS-Interface voltage; LED green
LED IN	switching state (input); 4 LED yellow

Electrical specifications

Rated operating voltage	26.5 ... 31.6 V from AS-Interface Ue
Rated operating current	≤ 40 mA (without sensors) / max. 240 mA Ie
Protection class	III
Surge protection	Ue: Over voltage category III, safe isolated power supplies (PELV)

Input

Number/Type	4 inputs for 2- or 3-wire sensors (PNP), DC
Supply	from AS-Interface
Voltage	21 ... 31 V
Current loading capacity	≤ 200 mA (TB ≤ 40 °C), ≤ 150 mA (TB ≤ 60 °C), short-circuit protected
Input current	≤ 8 mA (limited internally)
Switching point: 0 (unattenuated)	≤ 1.5 mA
Switching point: 1 (attenuated)	≥ 4.5 mA
Signal delay	< 2 ms (input/AS-Interface)
Signal frequency	≤ 250 Hz

Directive conformity

Electromagnetic compatibility: Directive 2014/30/EU

EN 62026-2:2013 EN 61000-6-2:2001 EN 61000-6-4:2001

Standard conformity

Degree of protection	EN 60529:2000
Fieldbus standard	EN 62026-2:2013
Input	EN 61131-2:2007
Emitted interference	EN 61000-6-4:2001
AS-Interface	EN 62026-2:2013
Noise immunity	EN 61000-6-2:2001

Programming instructions

Profile	S-0.1
IO code	0
ID code	1
ID1 code	F
ID2 code	F
Data bits (function via AS-Interface)	InputOutput
D0	IN1 -
D1	IN2 -
D2	IN3 -
D3	IN4 -
Parameter bits (programmable via AS-i)	function
P0	Communication monitoring P0 = 0 monitoring = off, the outputs maintain the status if communication fails P0 = 1 monitoring = on, i.e. if communication fails, the outputs are deenergised (default settings)
P1	Input filter P1 = 0 input filter on, pulse suppression ≤ 2 ms P1 = 1 input filter off (default settings)
P2	Synchronous mode P2 = 0 synchronous mode on P2 = 1 synchronous mode off (default settings)
P3	not used

Ambient conditions

Ambient temperature	-25 ... 60 °C (-13 ... 140 °F)
Storage temperature	-25 ... 85 °C (-13 ... 185 °F)
Relative humidity	85 % , non-condensing
Climatic conditions	For indoor use only
Altitude	≤ 2000 m above MSL
Pollution degree	3

Mechanical specifications

Degree of protection	IP67
Connection	cable piercing method flat cable yellow inputs: M12 round connector
Material: Housing	PBT
Mass	100 g
Tightening torque, cable gland	0.4 Nm
Mounting	Mounting plate

Downloads & documentation

Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet VAA-4E-G2-ZA	PDF
Commissioning Instructions	PDF · 192 kB

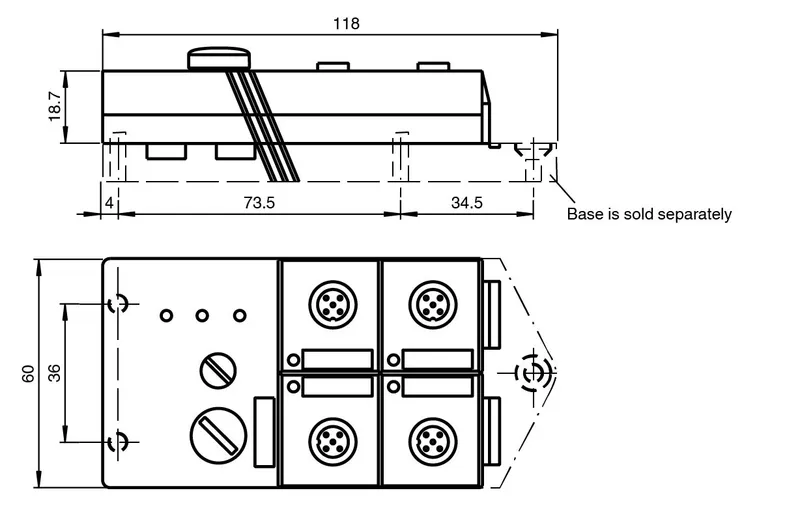

CAD & dimension drawings

3-D model (STEP) VBA-2E2A-G2-ZA/EA2

STP · 152 kB

Certificates (3)

Canada, USA UL (CoC 20141115-E223772)	PDF · 349 kB
Worldwide AS-International Association AS-Interface (34101)	PDF · 622 kB
EU Declaration of Conformity (Pepperl+Fuchs)	PDF · 120 kB

12-month warrantyon all new stock

3-month warrantyon used & refurbished parts

30-day returnsno restocking fee on unused parts

Global shippingFast, tracked delivery worldwide
