Pepperl Fuchs V1S-TR-B24-120R – Terminal resistor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mounting Accessories |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can V1S-TR-B24-120R be shipped?
V1S-TR-B24-120R is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up V1S-TR-B24-120R in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for V1S-TR-B24-120R and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for V1S-TR-B24-120R, subject to availability and destination.
• Suitable for DeviceNet and CANopen
• UL listed for USA and Canada

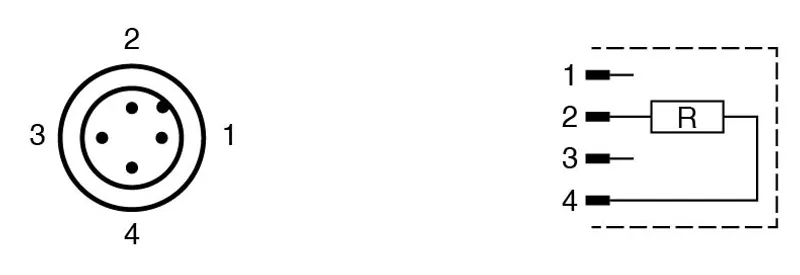

• Pins 2 and 4 bridged
• Resistor in bridge
• Specific design protects against loosening and inaccurate installation

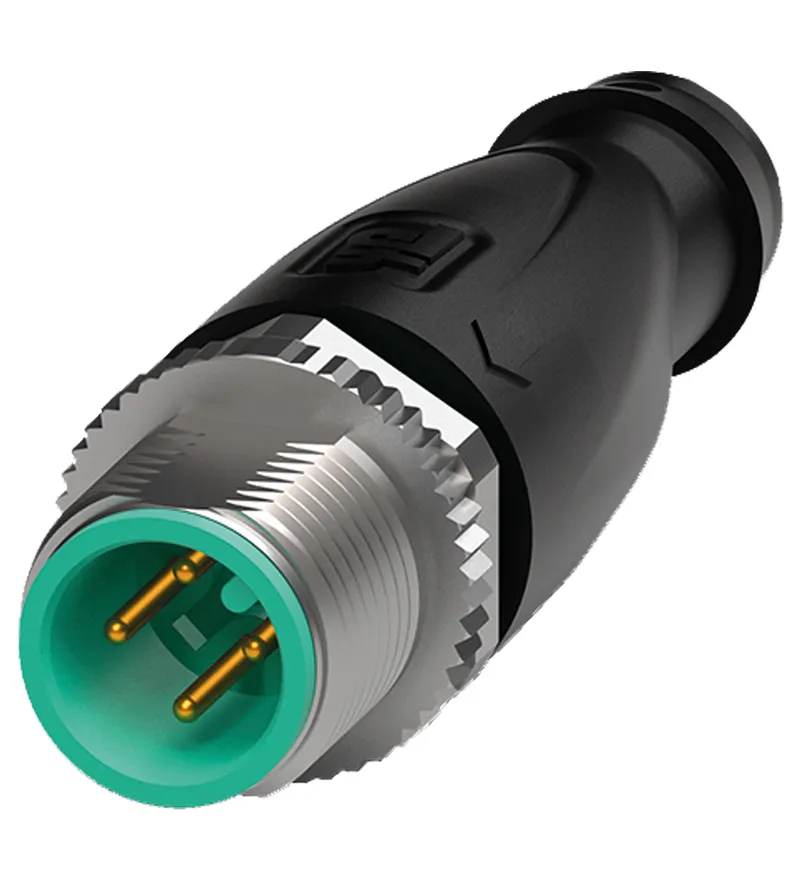

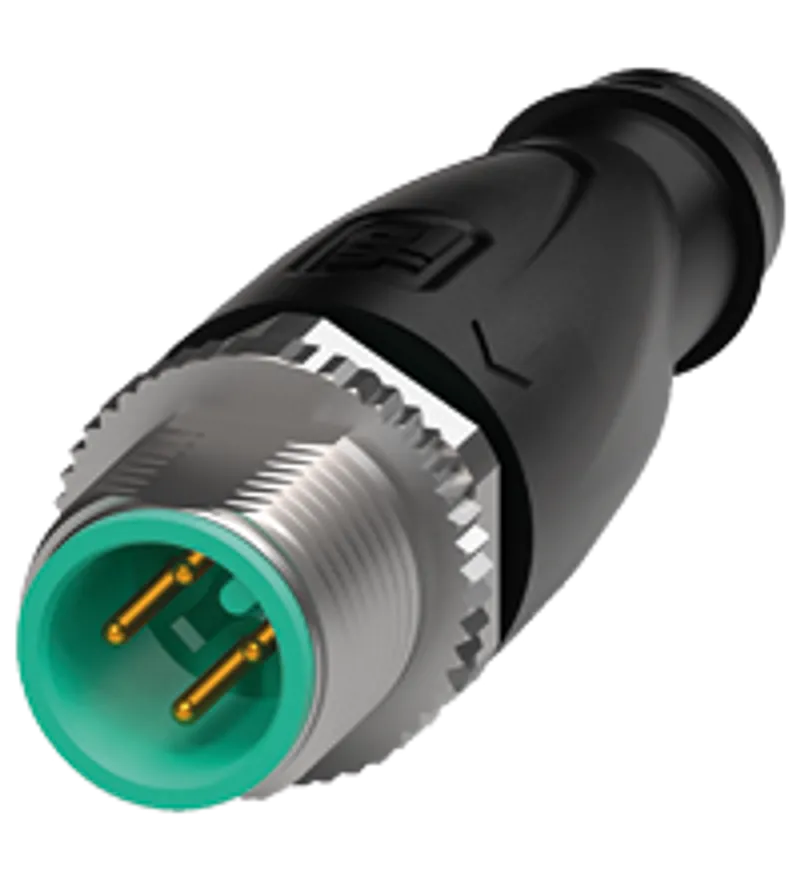

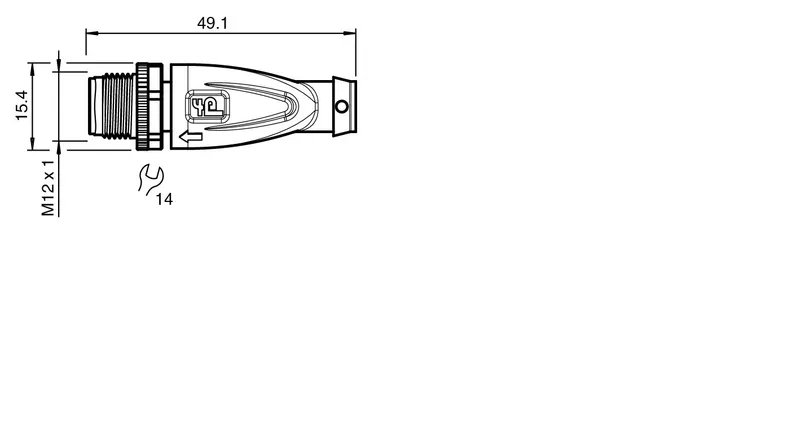

Terminal resistor M12 male straight A-coded 4-pin, for DeviceNet, CANopen
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70184197 |
| Connector 1: Connection | plug |
| Connector 1: Construction type | M12 |
| Connector 1: Style | straight |
| Connector 1: Locking | screw connection |
| Connector 1: Number of pins | 4 |
| Connector 1: Coding | A-coded |
| Connector 1: Customization | pin 2 and 4 bridged , resistance 120 Ohm |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Operating voltage | max. 30 V DC UB |
| Operating current | max. 4 A per contact IB |
Conformity
| Degree of protection | EN 60529 |
| Fieldbus standard | CANopen , DeviceNet |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 |
Approvals and certificates
| UL File Number | E231213 |
Ambient conditions
| Ambient temperature | -40 ... 90 °C (-40 ... 194 °F) |
| Pollution degree | 3 |
Mechanical specifications
| Plug connector: Tightening torque | 0.6 Nm |
| Plug connector: Loosening protection | available |
| Plug connector: Tool installation | straight knurling and hexagon nut SW = 14 mm |
| Plug connector: Mating cycles | min. 100 |
| Degree of protection | IP68 / IP69 |
| Mass | 8 g |
Material
| Plug connector: Screw connection | Zinc diecast, nickel-plated |
| Plug connector: Body | TPU, black |
| Plug connector: Contact surface | gold plated (Au) |
| Plug connector: Flammability | V-2 |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet V1S-TR-B24-120R |
More Pepperl Fuchs parts

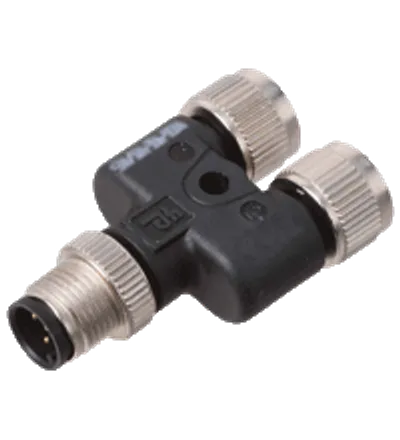

Available on requestY-Splitter V1S-T-V1-Y70163306
