Pepperl Fuchs V15S-Y-TQ-V15/V15
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Sensor-Actuator Splitters |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can V15S-Y-TQ-V15/V15 be shipped?
V15S-Y-TQ-V15/V15 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up V15S-Y-TQ-V15/V15 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for V15S-Y-TQ-V15/V15 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for V15S-Y-TQ-V15/V15, subject to availability and destination.

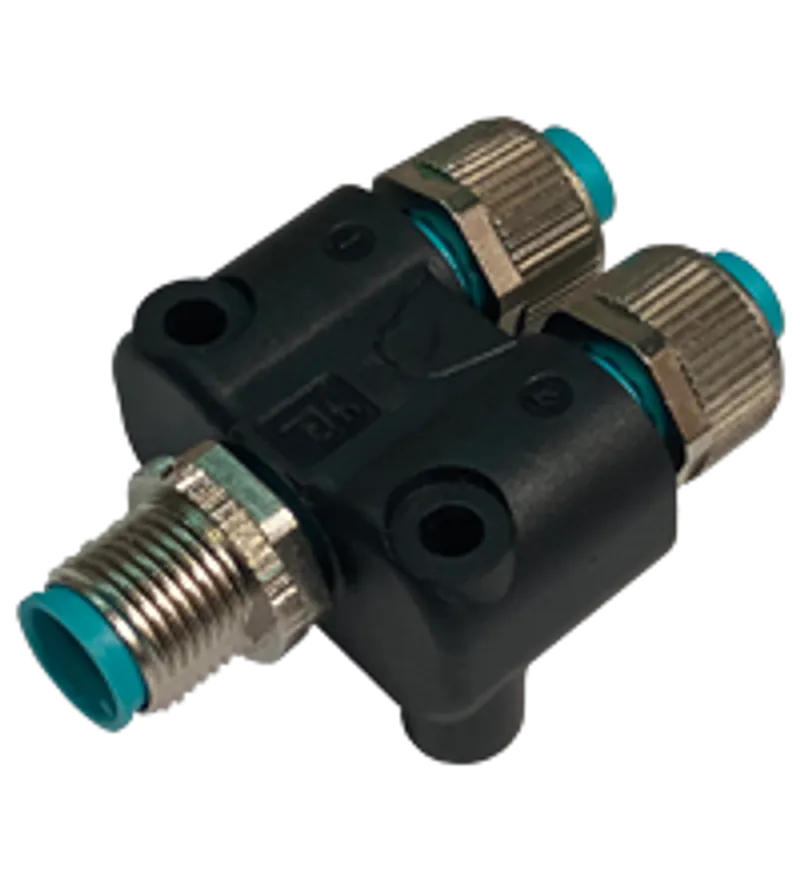

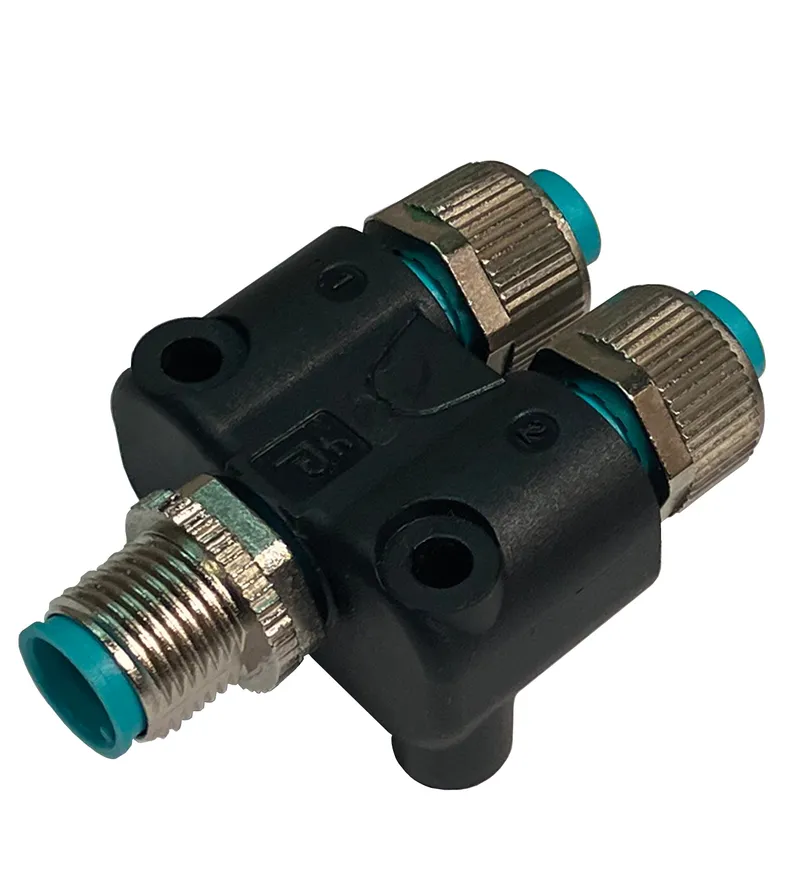

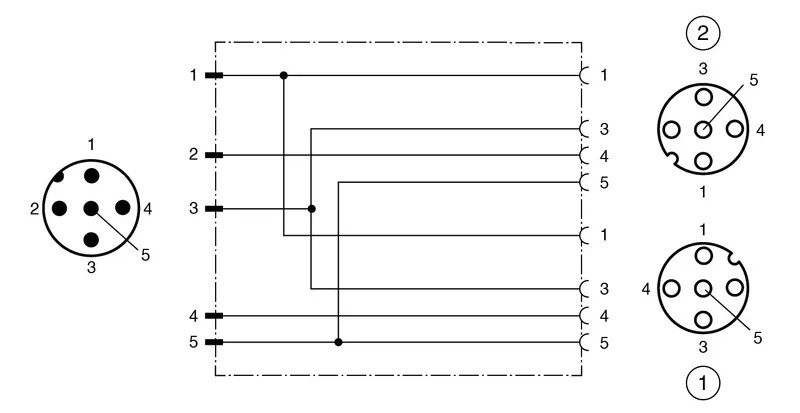

Y-Splitter. Y-Splitter M12 plug 5-pin to 2x M12 socket 4-pin A-coded, anti-twist protection. Connector 1: . ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins4CodingA-coded: . Connection: socket. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 4. Coding: A-coded. Connector 2: . ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins4CodingA-coded: . Connection: socket. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 4. Coding: A-coded. Connector 3: . ConnectionplugConstruction typeM12StylestraightLockingscrew connectionNumber of pins5CodingA-coded: . Connection: plug. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 5. Coding: A-coded. Operating voltage: max. 48 V AC / 60 V DC. Operating current: 4 A. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. Flammability: UL 94. UL approval: UL 2238, 3rd Edition, CSA C22.2 No. 182.3-16.; CYJV/7. UL File Number: E231213. Ambient temperature: -40 ... 90 °C (-40 ... 194 °F). Pollution degree: 3. Plug connector: . Tightening torque0.6 NmLoosening protectionintegratedTool installationstraight knurling and hexagon nut SW = 14 mmMating cyclesmin. 100: . Tightening torque: 0.6 Nm. Loosening protection: integrated. Tool installation: straight knurling and hexagon nut SW = 14 mm. Mating cycles: min. 100. Degree of protection: IP66 / IP68 / IP69. Installation: anti-twist protection by means of double mounting holes 2x M4. Mounting: Mounting hole for M4 screw. Plug connector: . Screw connectionZinc diecast, nickel-platedBodyTPUSealFKMContact surfacegold plated (Au)FlammabilityV-2: . Screw connection: Zinc diecast, nickel-plated. Body: TPU. Seal: FKM. Contact surface: gold plated (Au). Flammability: V-2
Specifications
General specifications
| Connector 1 | |
| ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins4CodingA-coded | Connection |
| Connection | socket |
| Construction type | M12 |
| Style | straight |
| Locking | screw connection |
| Number of pins | 4 |
| Coding | A-coded |
| Connector 2 | |
| ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins4CodingA-coded | Connection |
| Connection | socket |
| Construction type | M12 |
| Style | straight |
| Locking | screw connection |
| Number of pins | 4 |
| Coding | A-coded |
| Connector 3 | |
| ConnectionplugConstruction typeM12StylestraightLockingscrew connectionNumber of pins5CodingA-coded | Connection |
| Connection | plug |
| Construction type | M12 |
| Style | straight |
| Locking | screw connection |
| Number of pins | 5 |
| Coding | A-coded |
Electrical specifications
| Operating voltage | max. 48 V AC / 60 V DC UB |
| Operating current | 4 A IB |
Conformity
| Degree of protection | EN 60529 |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 |
| Flammability | UL 94 |
Approvals and certificates
| UL approval | UL 2238, 3rd Edition, CSA C22.2 No. 182.3-16.; CYJV/7 |
| UL File Number | E231213 |
Ambient conditions
| Ambient temperature | -40 ... 90 °C (-40 ... 194 °F) |
| Pollution degree | 3 |

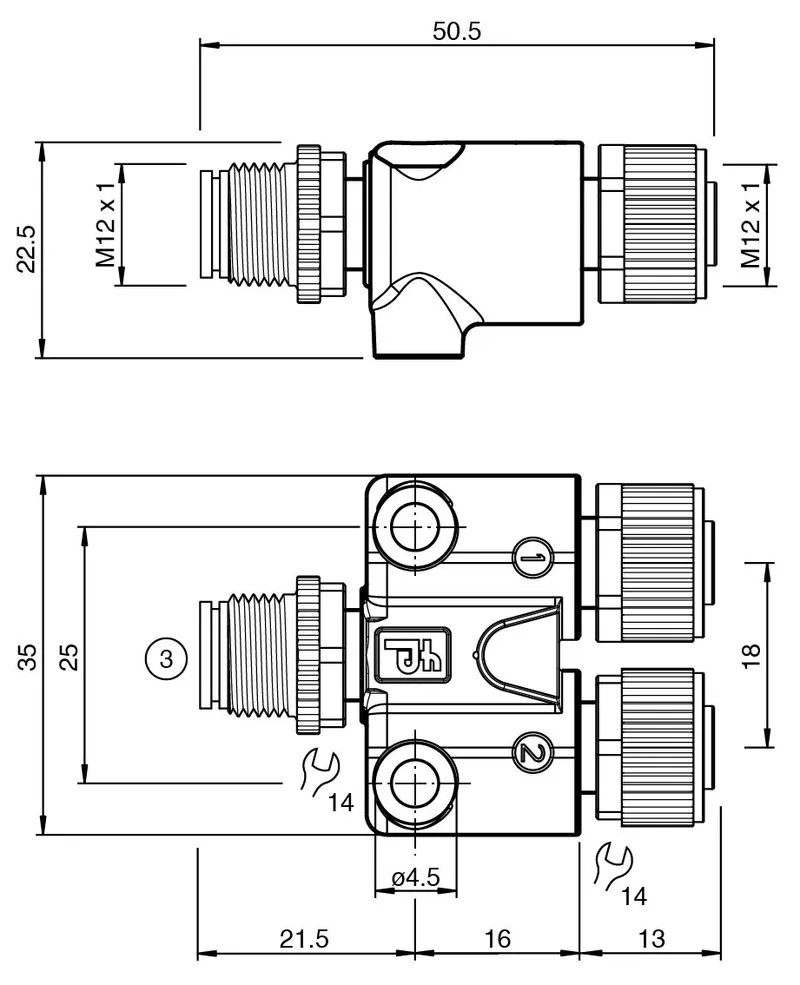

Mechanical specifications
| Plug connector | |
| Tightening torque0.6 NmLoosening protectionintegratedTool installationstraight knurling and hexagon nut SW = 14 mmMating cyclesmin. 100 | Tightening torque |
| Tightening torque | 0.6 Nm |
| Loosening protection | integrated |
| Tool installation | straight knurling and hexagon nut SW = 14 mm |
| Mating cycles | min. 100 |
| Degree of protection | IP66 / IP68 / IP69 |
| Installation | anti-twist protection by means of double mounting holes 2x M4 |
| Mounting | Mounting hole for M4 screw |
Material
| Plug connector | |
| Screw connectionZinc diecast, nickel-platedBodyTPUSealFKMContact surfacegold plated (Au)FlammabilityV-2 | Screw connection |
| Screw connection | Zinc diecast, nickel-plated |
| Body | TPU |
| Seal | FKM |
| Contact surface | gold plated (Au) |
| Flammability | V-2 |
More Pepperl Fuchs parts
Available on requestPepperl Fuchs V15S-W-BK2M-PUR-U
Available on requestPepperl Fuchs V15S-W-BK3M-PUR-U
Available on requestPepperl Fuchs V15S-W-BK5M-PUR-U
Available on requestPepperl Fuchs V15S-W-BK5M-PUR-U/0,75

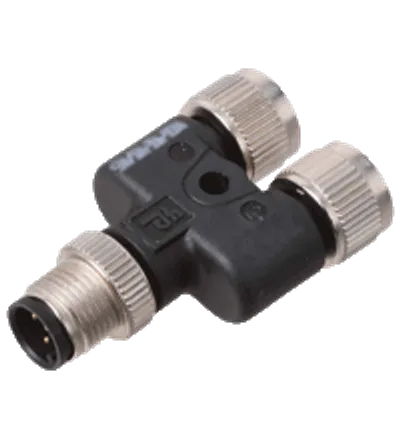

Available on requestPepperl Fuchs V15S-Y-V15/V15
Available on requestPepperl Fuchs V15S-Y24B-V15/V15
Available on requestPepperl Fuchs V15S-YAND-V15/V15

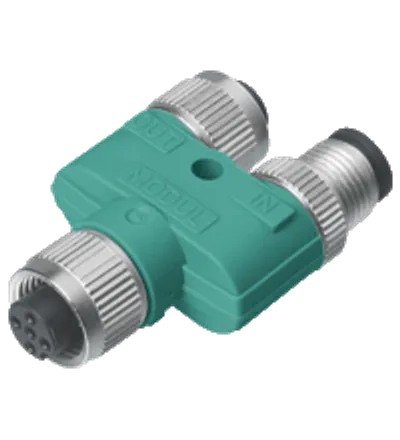

Available on requestPepperl Fuchs V15S-YEE-V15
