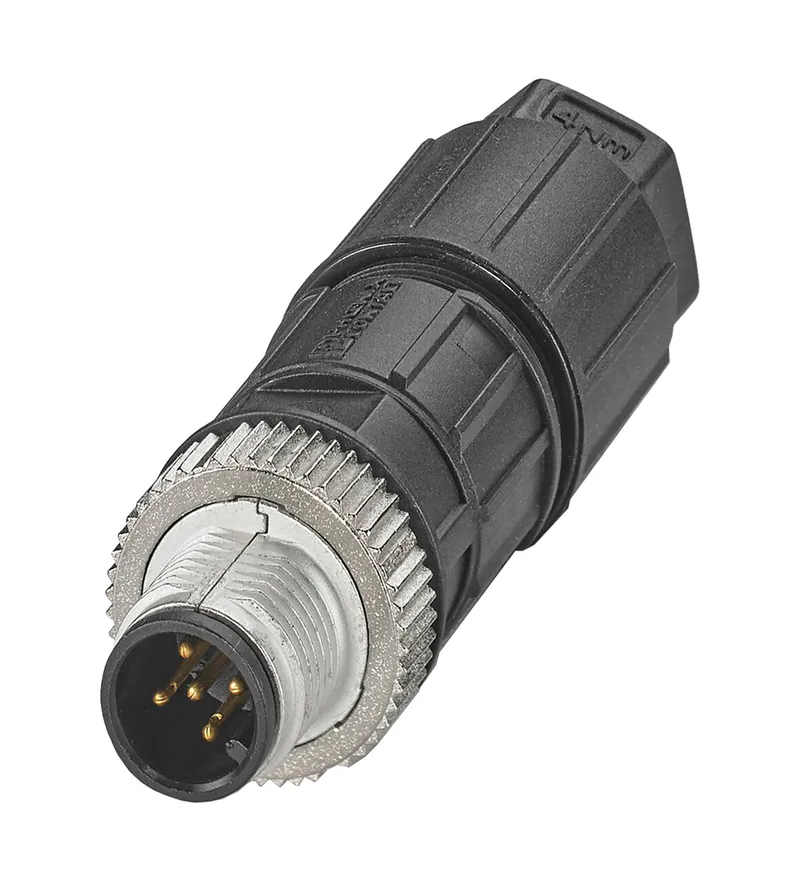

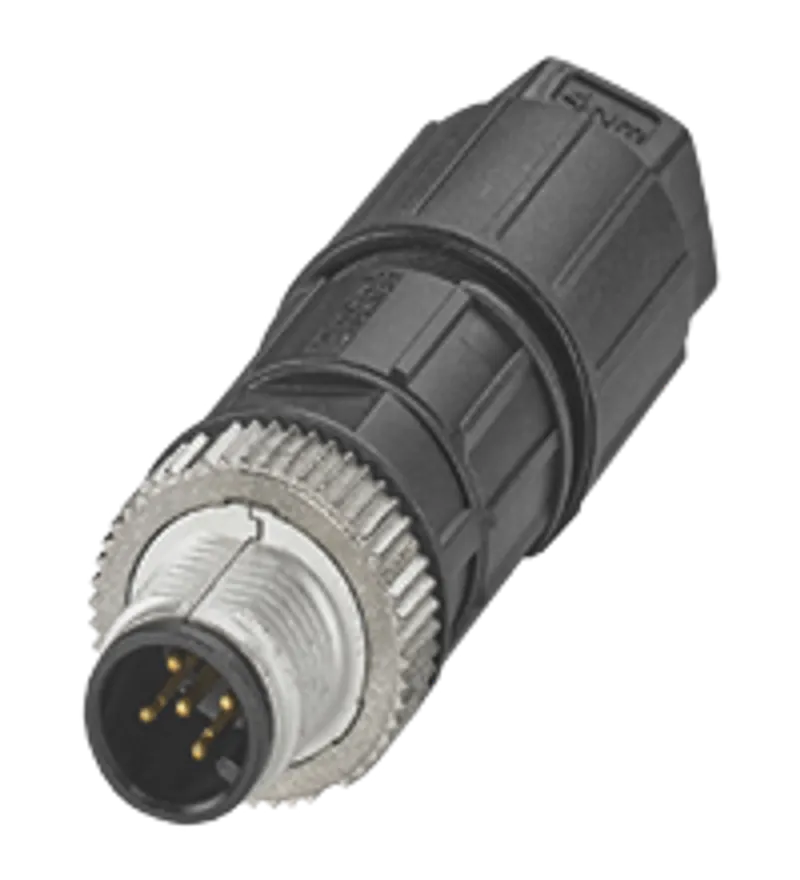

Pepperl Fuchs V15S-G-Q3 – Male connector, field-attachable
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Field-Attachable Connectors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can V15S-G-Q3 be shipped?
V15S-G-Q3 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up V15S-G-Q3 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for V15S-G-Q3 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for V15S-G-Q3, subject to availability and destination.
• Insulation displacement connection
• Metal locking
• Knurled nut suitable for tool assembly

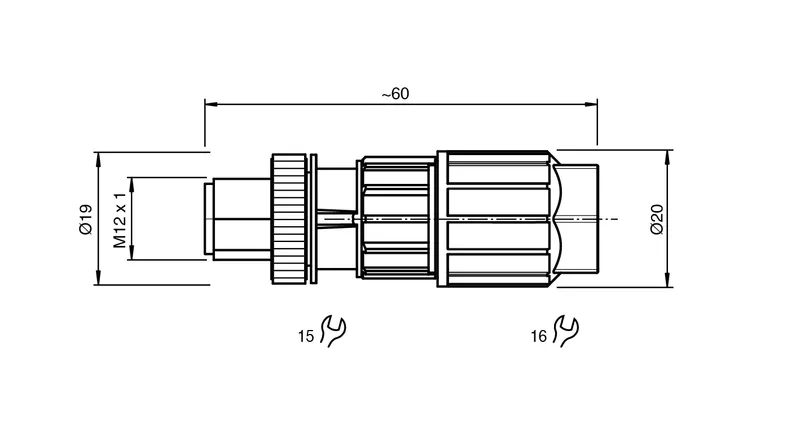

Male connector M12 straight A-coded 5-pin, for cable diameter 4 - 7 mm, field-attachable, insulation displacement connection
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70152942 |
| Connector 1: Connection | plug |
| Connector 1: Construction type | M12 |
| Connector 1: Style | straight |
| Connector 1: Locking | screw connection |
| Connector 1: Number of pins | 5 |
| Connector 1: Coding | A-coded |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Operating voltage | max. 48 V AC / 60 V DC UB |
| Operating current | max. 4 A IB |
| Insulation resistance | min. 100 MΩ |
Conformity
| Degree of protection | EN 60529 |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 |
Ambient conditions
| Ambient temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Pollution degree | 3 |
Mechanical specifications
| Plug connector: Tightening torque | 0.4 Nm |
| Plug connector: Tool installation | straight knurling |
| Plug connector: Mating cycles | min. 100 |
| Degree of protection | IP65 |
| Connection | Insulation displacement connection for 0.14 ... 0.5 mm2 / AWG 26 ... AWG 20 |
| Cable: Sheath diameter | 4 ... 7 mm |
| Cable: Core cross section | 0.5 mm2 / 20 AWG max. |
| Mass | 20.5 g |
Material
| Plug connector: Screw connection | Zinc diecast, nickel-plated |
| Plug connector: Body | PA, black |
| Plug connector: Seal | FKM |
| Plug connector: Contact surface | Ni/Au |
| Plug connector: Flammability | V-0 |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet V15S-G-Q3 |
CAD & dimension drawings
| 3-D model (STEP) V15S-G-Q3 | STP · 2.1 MB |
Certificates (2)
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 291 kB |
| UK Declaration of Conformity (Pepperl+Fuchs) | PDF · 215 kB |
