Pepperl Fuchs V15-W-PG7

Name: Pepperl Fuchs V15-W-PG7
Brand: Pepperl Fuchs
SKU: V15-W-PG7

MPN: V15-W-PG7 · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Field-Attachable Connectors
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can V15-W-PG7 be shipped?

V15-W-PG7 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up V15-W-PG7 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for V15-W-PG7 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for V15-W-PG7, subject to availability and destination.

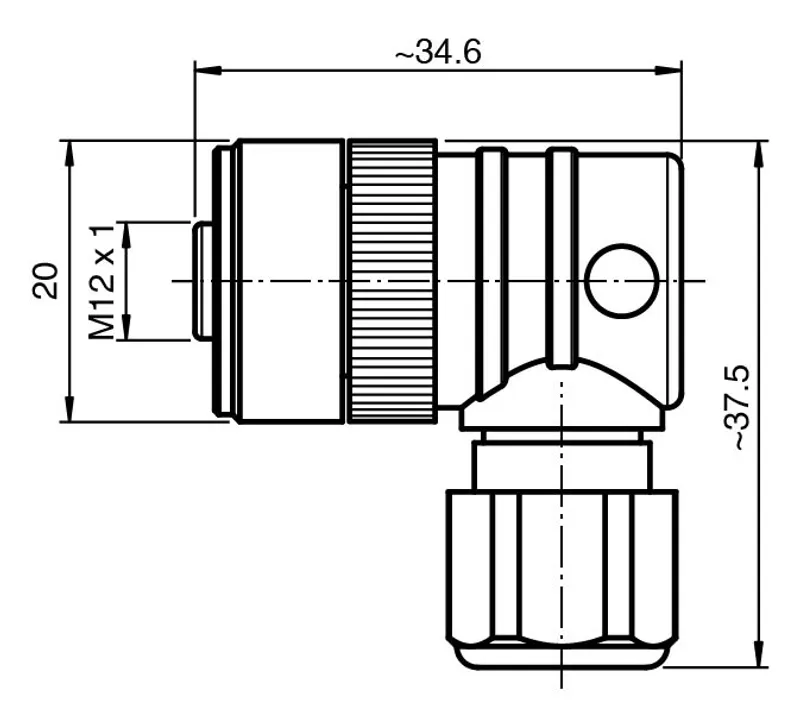

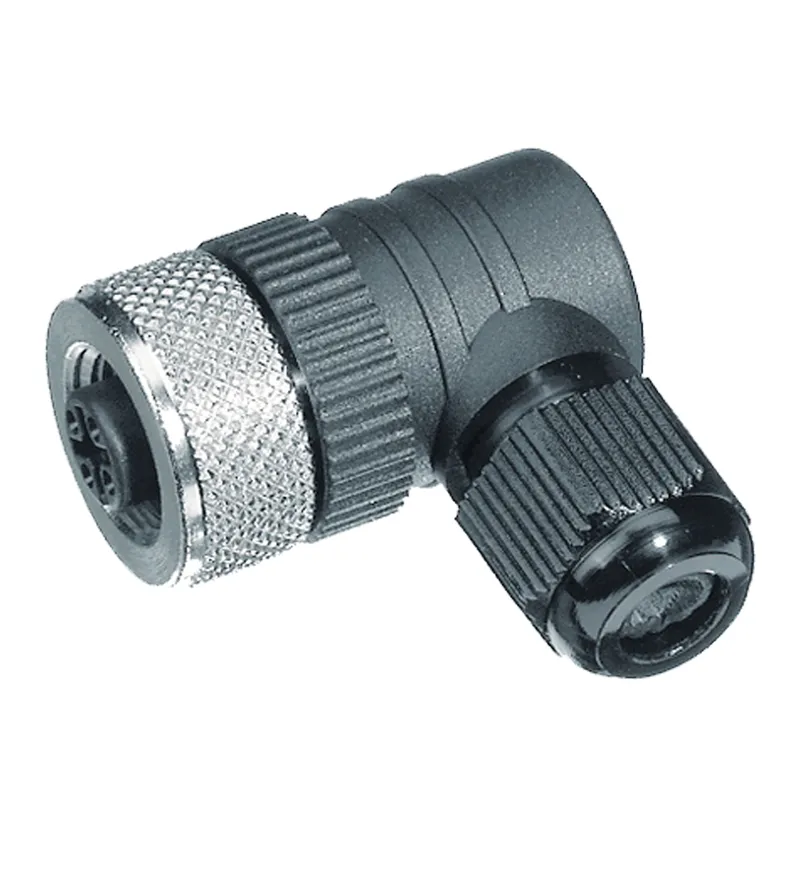

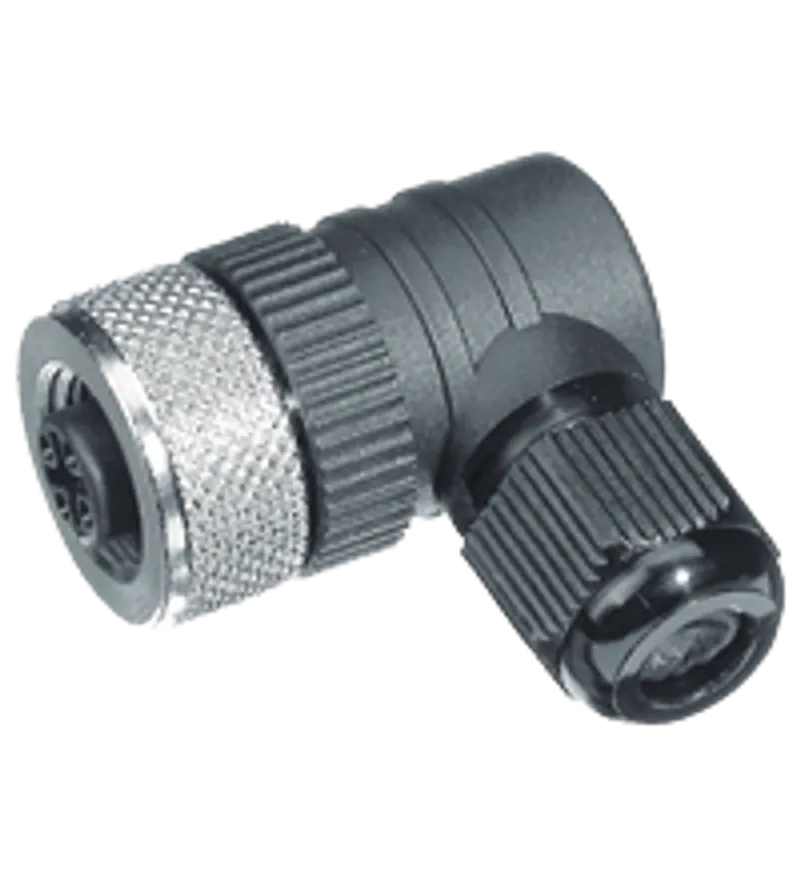

Female connector, field-attachable. Female connector M12 angled A-coded 5-pin, field-attachable. Connector 1: . ConnectionsocketConstruction typeM12StyleangledLockingscrew connectionNumber of pins5CodingA-codedCustomizationCoding rotateable in steps of 90°: . Connection: socket. Construction type: M12. Style: angled. Locking: screw connection. Number of pins: 5. Coding: A-coded. Customization: Coding rotateable in steps of 90°. Operating voltage: max. 48 V AC / 60 V DC. Operating current: max. 4 A. Volume resistance: < 10 mΩ. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. Ambient temperature: -28 ... 90 °C (-18.4 ... 194 °F) , note derating. Pollution degree: 3. Plug connector: . Tightening torque1.5 ... 1.6 NmTool installationstraight knurlingMating cyclesmin. 50: . Tightening torque: 1.5 ... 1.6 Nm. Tool installation: straight knurling. Mating cycles: min. 50. Degree of protection: IP65. Connection: screw terminals for max. 0.75 mm2 / AWG 18. Cable: . Sheath diameter4 ... 6 mmCore cross section0.75 mm2 / 18 AWG max.: . Sheath diameter: 4 ... 6 mm. Core cross section: 0.75 mm2 / 18 AWG max.. Mass: 28.9 g. Plug connector: . Screw connectionZinc diecast, nickel-platedBodyPBT, blackSealNBR , FKMContact surfaceCuSnZn: . Screw connection: Zinc diecast, nickel-plated. Body: PBT, black. Seal: NBR , FKM. Contact surface: CuSnZn

Specifications

General specifications

Connector 1
ConnectionsocketConstruction typeM12StyleangledLockingscrew connectionNumber of pins5CodingA-codedCustomizationCoding rotateable in steps of 90°	Connection
Connection	socket
Construction type	M12
Style	angled
Locking	screw connection
Number of pins	5
Coding	A-coded
Customization	Coding rotateable in steps of 90°

Electrical specifications

Operating voltage	max. 48 V AC / 60 V DC UB
Operating current	max. 4 A IB
Volume resistance	< 10 mΩ

Conformity

Degree of protection	EN 60529
Plug connection	connector M12 x 1 : IEC 61076-2-101

Ambient conditions

Ambient temperature	-28 ... 90 °C (-18.4 ... 194 °F) , note derating
Pollution degree	3

Mechanical specifications

Plug connector
Tightening torque1.5 ... 1.6 NmTool installationstraight knurlingMating cyclesmin. 50	Tightening torque
Tightening torque	1.5 ... 1.6 Nm
Tool installation	straight knurling
Mating cycles	min. 50
Degree of protection	IP65
Connection	screw terminals for max. 0.75 mm2 / AWG 18
Cable
Sheath diameter4 ... 6 mmCore cross section0.75 mm2 / 18 AWG max.	Sheath diameter
Sheath diameter	4 ... 6 mm
Core cross section	0.75 mm2 / 18 AWG max.
Mass	28.9 g

Material

Plug connector
Screw connectionZinc diecast, nickel-platedBodyPBT, blackSealNBR , FKMContact surfaceCuSnZn	Screw connection
Screw connection	Zinc diecast, nickel-plated
Body	PBT, black
Seal	NBR , FKM
Contact surface	CuSnZn
