Pepperl Fuchs V1-W-N-10M-PUR-N4S – Cable connector, NAMUR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can V1-W-N-10M-PUR-N4S be shipped?
V1-W-N-10M-PUR-N4S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up V1-W-N-10M-PUR-N4S in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for V1-W-N-10M-PUR-N4S and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for V1-W-N-10M-PUR-N4S, subject to availability and destination.
• Suitable for drag chains and abrasion resistant
• Suitable for NAMUR technology
• Suitable for routing intrinsically safe circuits in accordance with DIN EN 60079-14:2014
• Degree of protection IP66 / IP68 / IP69
• Free of paint wetting interfering substances
• Resistant to microbes and hydrolysis
• UV resistant
• Oil resistant
• UL listed for USA and Canada
• Halogen-free
• Specific design protects against loosening and inaccurate installation

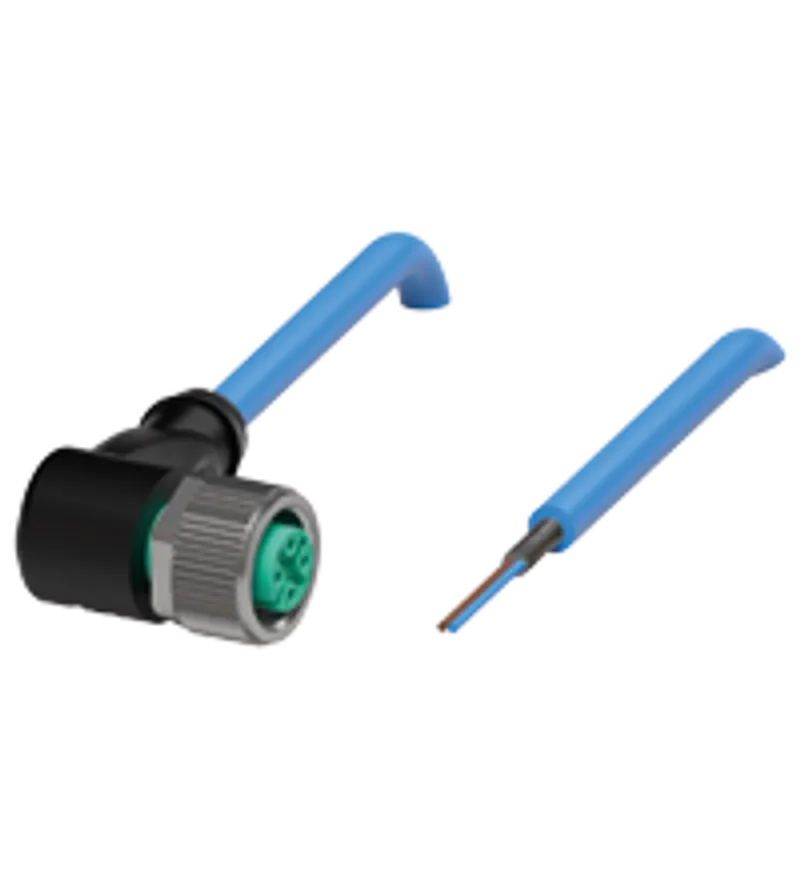

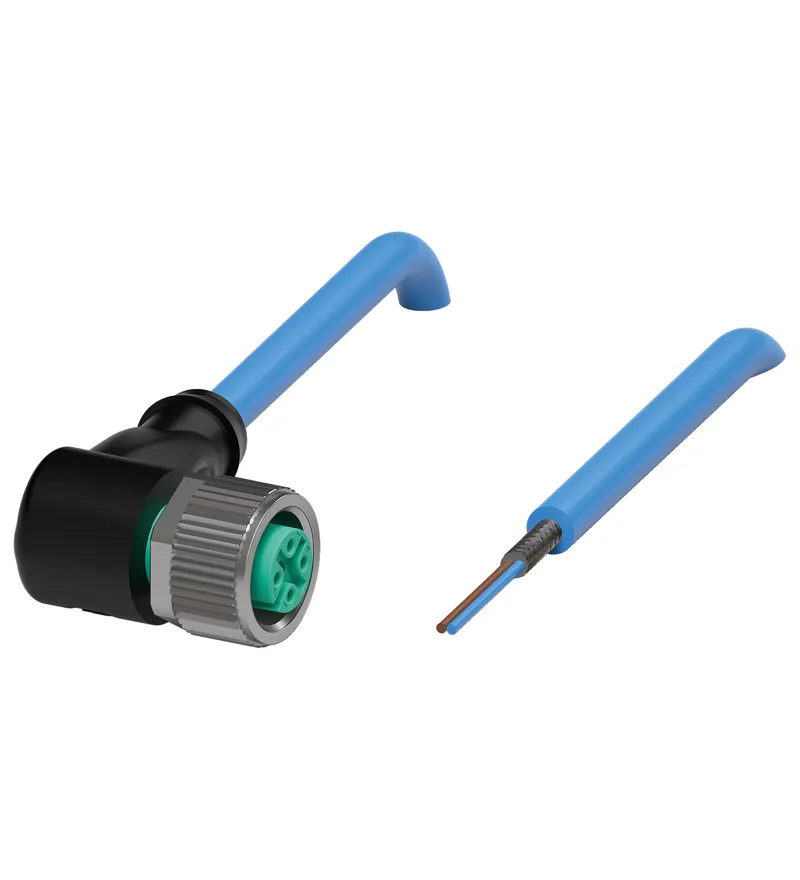

Female cordset single-ended M12 angled A-coded, 2-pin, PUR cable blue, NAMUR, shielded, UL approved, drag chain suitable, oil resistant
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70198020 |
| Connector 1: Connection | socket |
| Connector 1: Construction type | M12 |
| Connector 1: Style | angled |
| Connector 1: Locking | screw connection |
| Connector 1: Number of pins | 2 |
| Connector 1: Coding | A-coded |
| Connector 2: Connection | cable end |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Operating voltage | max. 48 V AC / 60 V DC UB |
| Operating current | max. 4 A IB |
| Resistance per unit length | max. 0.039 Ω/m R' |
| Capacitance per unit length | 78.85 nF/km C' |
| Inductance per unit length | 0.622 mH/km L' |
Conformity
| Degree of protection | EN 60529 |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 |
| Flammability | UL 758 / 1581 , DIN EN 60332-1-2 |
| Halogen-free | DIN VDE 0472-815 , IEC 60754-1 |
| Lead-free | RoHS directive 2011/65/EU |
| Microbial resistance | EN 50363 |
| Hydrolysis resistance | EN 50363 |
| Oil resistance | DIN EN 60811-404 |
Approvals and certificates
| UL approval | AWM STYLE 20549/10152 80°C 300V FT2 (cable) |
| UL File Number | E231213 |
Ambient conditions
| Ambient temperature: Plug connector | -40 ... 90 °C (-40 ... 194 °F) |
| Ambient temperature: Cable, fixed installation | -40 ... 80 °C (-40 ... 176 °F) |
| Ambient temperature: Cable, flexing | -25 ... 80 °C (-13 ... 176 °F) |
| Pollution degree | 3 |

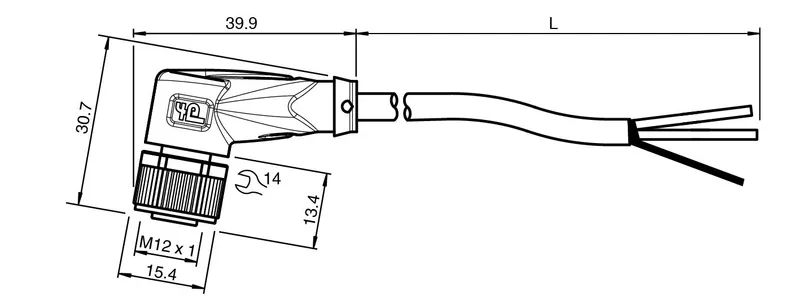

Mechanical specifications

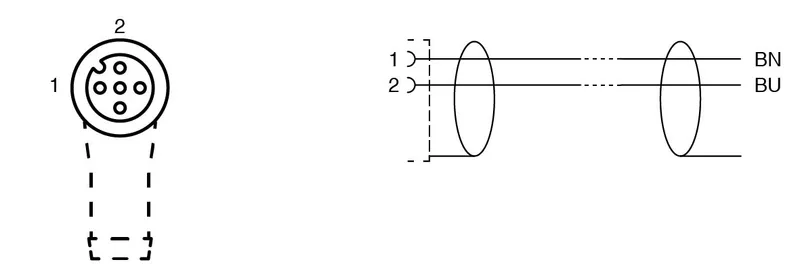

| Plug connector: Tightening torque | 0.6 Nm |
| Plug connector: Loosening protection | integrated |
| Plug connector: Tool installation | straight knurling and hexagon nut SW = 14 mm |
| Plug connector: Mating cycles | min. 100 |
| Plug connector: Shielding | shield connected to screw connection |
| Degree of protection | IP66 / IP68 / IP69 |
| Cable | according to IEC/EN 60228 (DIN VDE 0295) class 6 |
| Sheath diameter | 6 mm |
| Bending radius | > 10 x cable diameter, movable installation > 5 x cable diameter, fixed installation |
| Sheath stripping force | max. 80 N / 300 mm |
| Sheath color | blue (similar to RAL 5015) |
| Number of cores | 2 |
| Core cross section | 0.5 mm2 |
| Cores color | Core 1: brown Core 2: blue |
| Core construction | 28 x 0.15 mm ∅ |
| Shield | tinned copper braiding, 85 % coverage |
| Length | 10 m L |
| Cable code | Li 9Y C11Y 2 x 0,50 |
| Drag chain suitability: Drag chain cycles | min. 2000000 |
| Drag chain suitability: Motion velocity | max. 3 m/s |
| Drag chain suitability: Traverse distance | max. 10 m |
| Drag chain suitability: Acceleration | max. 10 m/s2 |
| Mass | 455 g |
Material
| PWIS free | yes |
| Halogen-free | yes |
| Lead-free | yes |
| Plug connector: Screw connection | Zinc diecast, nickel-plated |
| Plug connector: Body | TPU, black |
| Plug connector: Seal | FKM |
| Plug connector: Contact surface | gold plated (Au) |
| Plug connector: Flammability | V-2 |
| Cable: Sheathing | PUR based on polyether |
| Cable: Cores | bare copper (Cu) |
| Cable: Core insulation | PP |
| Cable: UV resistance | yes |
| Cable: Chemical resistance | good |
| Cable: Oil resistance | yes |
| Cable: Microbial resistance | yes |
| Cable: Hydrolysis resistance | yes |
| Cable: Flammability | FT2 |
General information
| Cable marking sleeve | 1x PUR transparent , fixed to cable |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet V1-W-N-10M-PUR-N4S |
CAD & dimension drawings
| 3-D model (STEP) V1-W-N-10M-PUR-N4S | STP · 3.9 MB |
Certificates (3)
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 290 kB |
| Canada, USA UL (CoC E231213) | PDF · 428 kB |
| UK Declaration of Conformity (Pepperl+Fuchs) | PDF · 221 kB |
