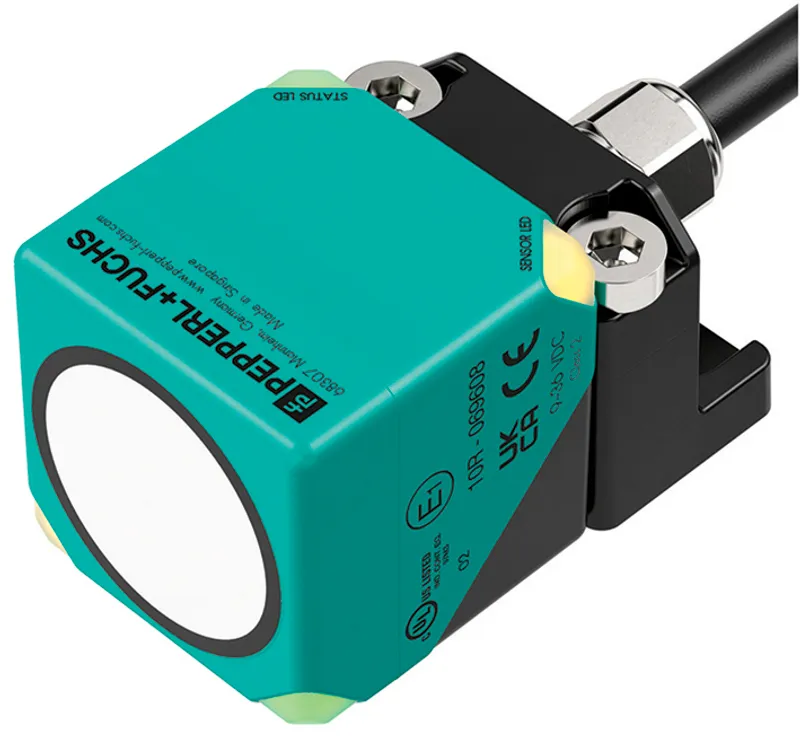

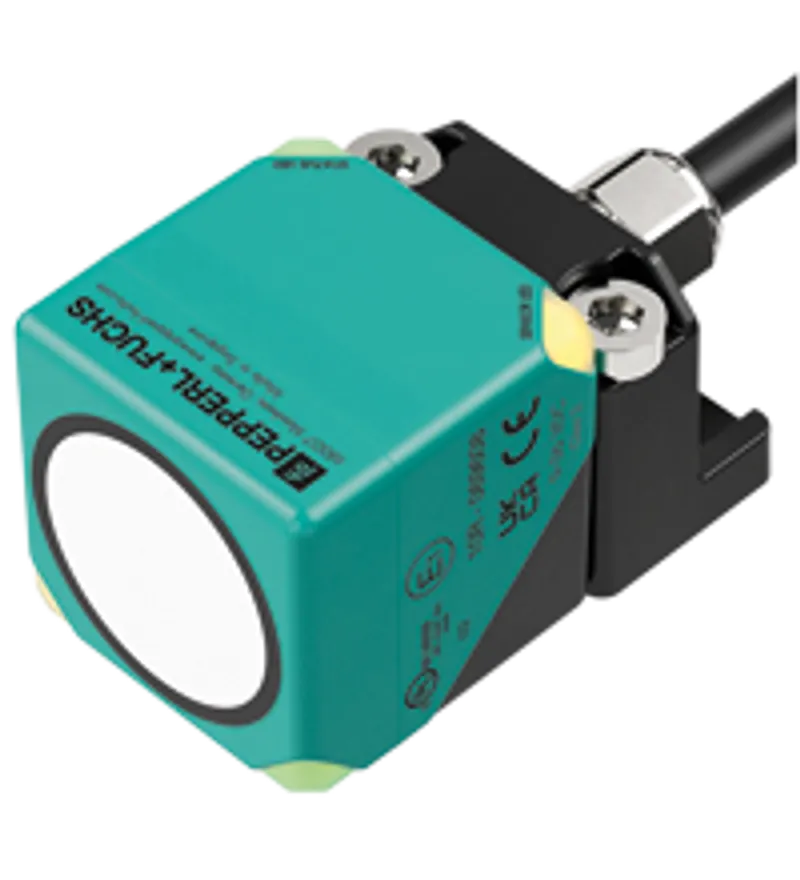

Pepperl Fuchs UC4000-L2M-B16-0,3M-DT6P-M-P03 – Ultrasonic sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Diffuse Mode and Retroreflective Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can UC4000-L2M-B16-0,3M-DT6P-M-P03 be shipped?
UC4000-L2M-B16-0,3M-DT6P-M-P03 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up UC4000-L2M-B16-0,3M-DT6P-M-P03 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for UC4000-L2M-B16-0,3M-DT6P-M-P03 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for UC4000-L2M-B16-0,3M-DT6P-M-P03, subject to availability and destination.
• CANopen interface
• E1-Type approval
• High EMC resistance
• Sensor head bidirectional and rotatable
• Rugged metal base
• Function indicators visible from all directions
• Degree of protection IP68
• Customer-specific configuration
Single head system, CANopen interface, E1-Type approval, High EMC resistance, Series: UC-L2, Interface type: CAN, Communication protocol: CANopen, UL approval: UL Recognized , General purpose , Class 2 power source, CCC approval: CCC approval / marking not required for products rated ≤36 V, UN/ECE Regulation No. 10 (E1): Type-approval number: 10R-069608, Connection type: fixed cable with plug, Housing: PA-GF35
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70134319-100022 |
| Sensing range | 200 ... 4000 mm |
| Adjustment range | 240 ... 4000 mm |
| Dead band | 0 ... 200 mm |
| Standard target plate | 100 mm x 100 mm |
| Transducer frequency | approx. 85 kHz |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Linearity error | < 40 mm |
| Temperature drift | < +/- 100 mm |
| Time delay before availability | ≤ 700 ms tv |
Functional safety related parameters
| MTTFd | 431 a |
| Mission Time (TM) | 10 a |
| Diagnostic Coverage (DC) | 0 % |
Indicators/operating means
| LED yellow | object in evaluation range |
| LED red/green | CANopen status display |
Electrical specifications
| Operating voltage | 9 ... 30 V UB |
| No-load supply current | ≤ 50 mA I0 |
| Power consumption | typ. 0.6 W P0 |
Interface
| Interface type | CAN |
| Communication protocol | CANopen |
| Process data | Input: 48 Bit - measured value (distance value) 16 Bit - signal quality 8 Bit - counter-1 16 Bit or counter-2 8 Bit - status register 8 Bit |
| Node ID | programmable |
| Vendor ID | 173 (0xAD) |
| Product code | 50331651 (0x03000003) |
| Transfer rate | 250 kBit/s , programmable 125 ... 1000 kBit/s |
| Termination | external |
| Cycle time | 53.5 ms preset , programmable |
| Min. cycle time | 53.5 ms |
Compliance with standards and directives
| Standard conformity: Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 |
| Standard conformity: Communication interface | CiA 310, Ver. 4.2.0 |
Approvals and certificates
| UL approval | UL Recognized , General purpose , Class 2 power source |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
| UN/ECE Regulation No. 10 (E1) | Type-approval number: 10R-069608 |
Ambient conditions
| Ambient temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
Mechanical specifications

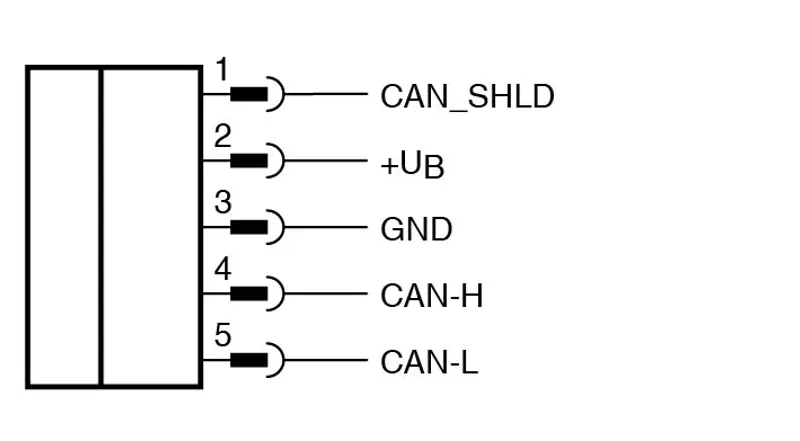

| Connection type | fixed cable with plug |
| Degree of protection | IP68 |
| Material: Housing | PA-GF35 |
| Connector: Number of pins | 6 |
| Connector: Connection assembly | Deutsch connector DT04-6P-CE02 Deutsch contact 1060-16-0622 Deutsch wedge W6P |
| Cable: Cable diameter | 7.25 mm ± 0.2 mm |
| Cable: Bending radius | > 10 x cable diameter |
| Cable: Material | PUR |
| Cable: Color | black |
| Cable: Number of cores | 5 |
| Cable: Core cross section | 0.8 mm2 |
| Cable: Length | 352 mm ± 5 mm L |
| Mass | 240 g |
| Dimensions: Height | 40 mm |
| Dimensions: Width | 40 mm |
| Dimensions: Length | 67 mm |
Factory settings
| Default setting | measured value "distance", signal quality, counter-2 (object 0x2000) |
| Beam width | wide (object 0x4000) |
| Synchronization | deactivated (object 0x2020) |
| Node ID | 85 |
| Transfer rate | 250 kBit/s |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet UC4000-L2M-B16-0,3M-DT6P-M-P03 | |
| Manual UC***-L2M series, Parameterization of Ultrasonic Sensors with CANopen-Schnittstelle | PDF · 3.4 MB |
| Instruction Manual | PDF · 153 kB |

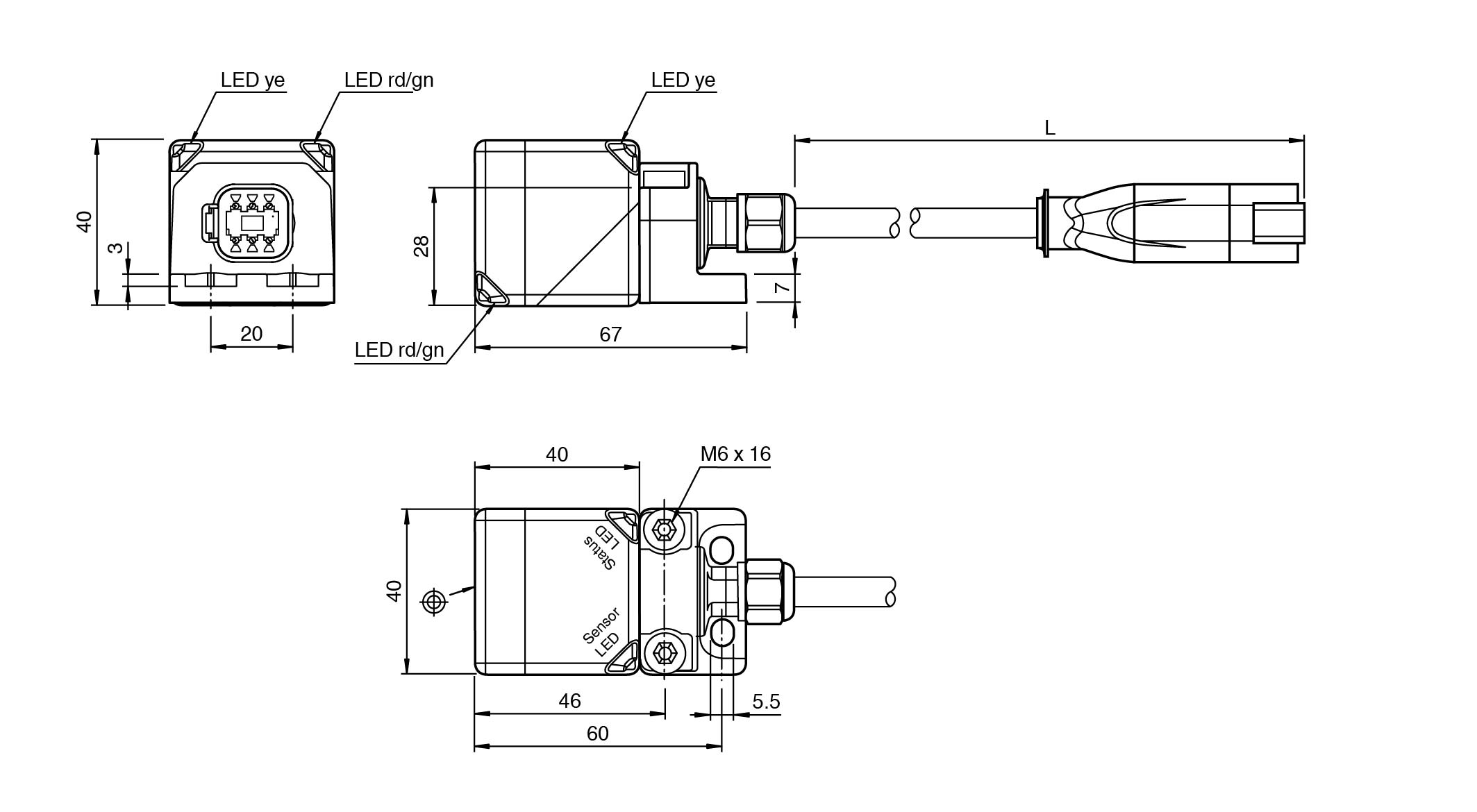

CAD & dimension drawings
| 3-D model (STEP) UC4000-L2M-B16-0,3M-DT6P-M-P03 | STP · 1.7 MB |
Certificates (2)
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 513 kB |
| UNECE KBA E1 (10R-069608) | PDF · 8.9 MB |
