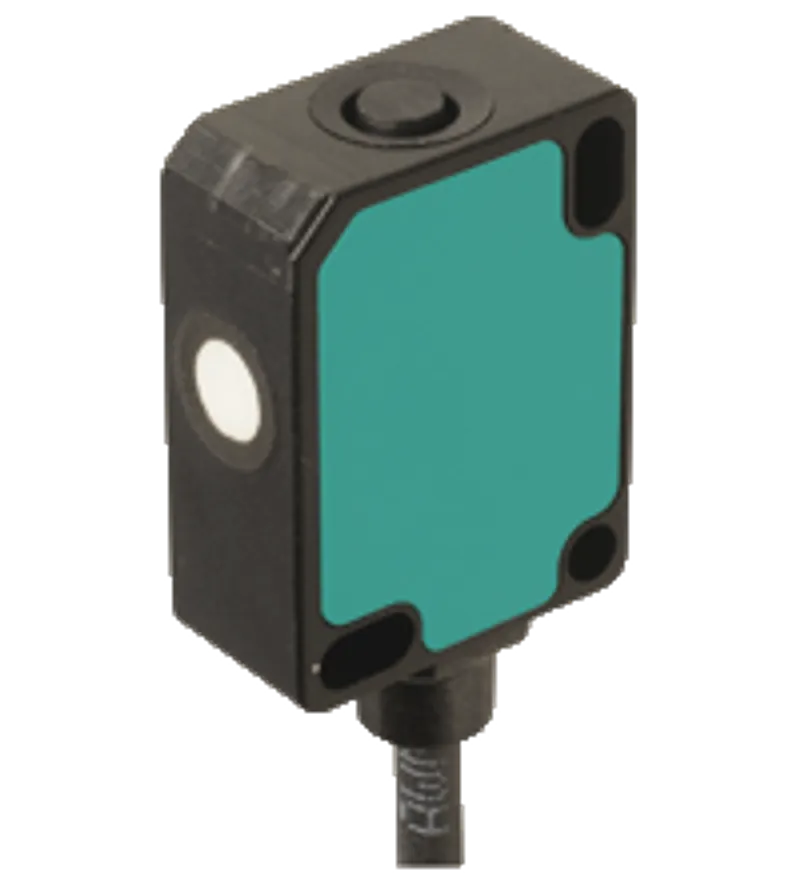

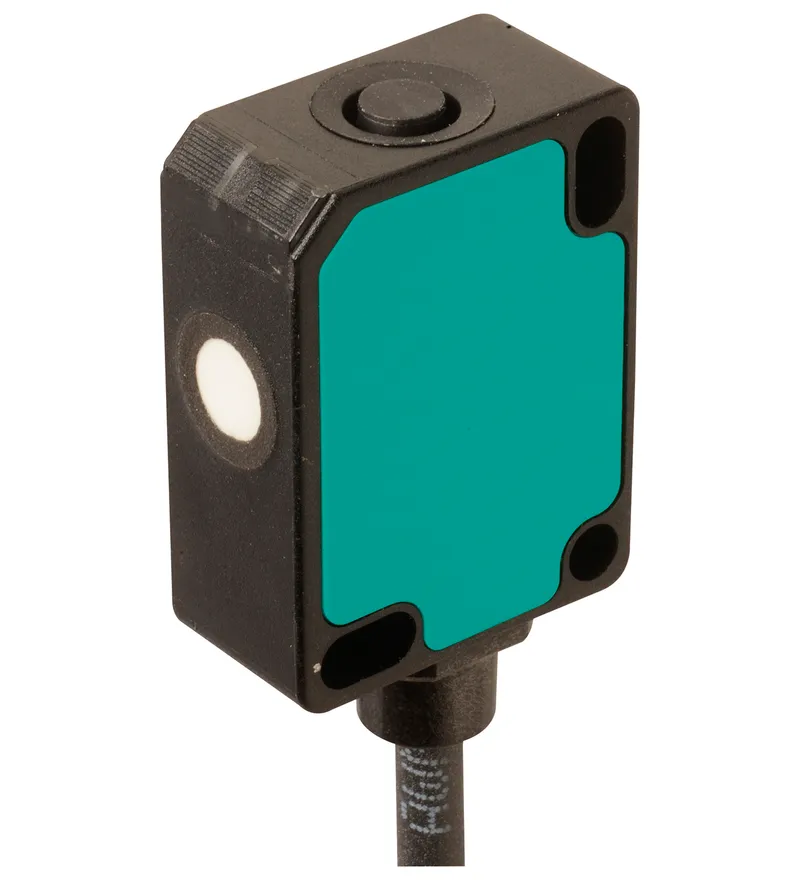

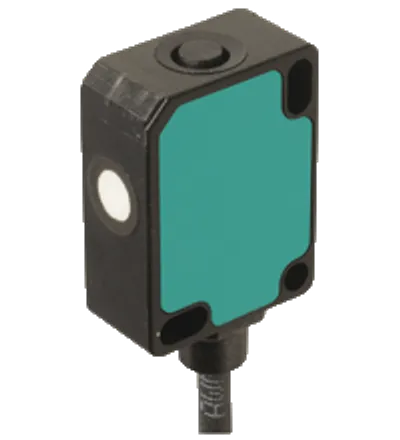

Pepperl Fuchs UC250-F77-EP-IO-0,2M-V31-P002 – Ultrasonic sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can UC250-F77-EP-IO-0,2M-V31-P002 be shipped?
UC250-F77-EP-IO-0,2M-V31-P002 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up UC250-F77-EP-IO-0,2M-V31-P002 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for UC250-F77-EP-IO-0,2M-V31-P002 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for UC250-F77-EP-IO-0,2M-V31-P002, subject to availability and destination.
• IO-Link interface for service and process data
• Programmable via DTM with PACTWARE
• Continuous distance value via IO-Link process data
• Selectable sound lobe width
• Synchronization options
• Temperature compensation
• Push-pull output
• Customer-specific configuration
Single head system, IO-Link interface for service and process data, Programmable via DTM with PACTWARE, Continuous distance value via IO-Link process data, Series: UC-F77, Operating voltage: 10 ... 30 V DC , ripple 10 %SS, Interface type: IO-Link (via C/Q = Pin 4), Output type: 1 push-pull (4 in 1) output, short-circuit protected, reverse polarity protected, UL approval: cULus Listed, Class 2 Power Source, CCC approval: CCC approval / marking not required for products rated ≤36 V
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 266632-100013 |
| Sensing range | 20 ... 250 mm |
| Adjustment range | 25 ... 250 mm |
| Dead band | 0 ... 20 mm |
| Standard target plate | 10 mm x 10 mm |
| Transducer frequency | approx. 400 kHz |
| Response delay | minimum : 8 ms factory setting: 29 ms |
| Sensor cycle time | ≥ 8 ms (factory setting) ; programmable to 60 s |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Memory
| Non-volatile memory | EEPROM |
| Write cycles | 300000 |
Indicators/operating means
| LED green | solid: power onflashing: standby mode or IO-Link communication |
| LED yellow | solid: object in evaluation rangeflashing: switch point programming, object detected |
| LED red | solid: errorflashing: switch point programming, object not detected |
Electrical specifications
| Operating voltage | 10 ... 30 V DC , ripple 10 %SS UB |
| No-load supply current | ≤ 40 mA I0 |
| Power consumption | ≤ 400 mW P0 |
| Time delay before availability | ≤ 300 ms tv |
Interface
| Interface type | IO-Link (via C/Q = Pin 4) |
| IO-Link revision | 1.1 |
| Device profile | Smart Sensor |
| Device ID | 0x3003A1 (3146657) |
| Transfer rate | COM2 (38.4 kBit/s) |
| Min. cycle time | 2.3 ms |
| Process data width | 16 bit |
| SIO mode support | yes |
| Compatible master port type | A |

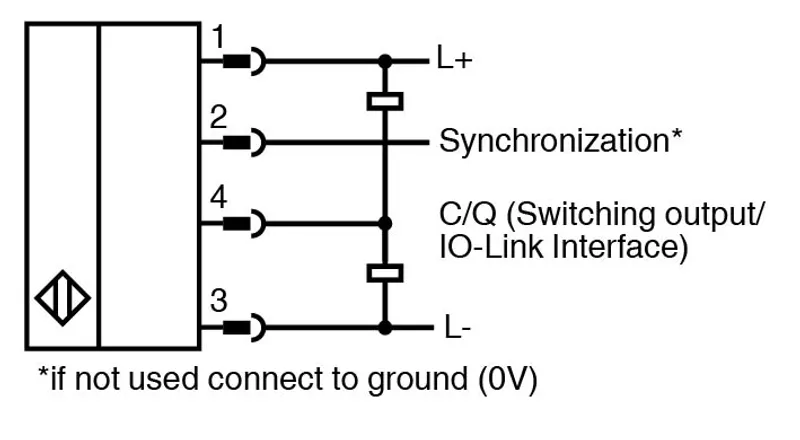

Input/Output
| Input/output type | 1 synchronization connection, bidirectional |
| 0 Level | 0 ... 1 V |
| 1 Level | 2.5 V ... UB |
| Input impedance | > 22 kΩ |
| Output current | current source < 2.5 mA |
| Pulse length | ≥ 1 ms with external control, low active |
| Synchronization frequency: Common mode operation | ≤ 141 Hz |
| Synchronization frequency: Multiplex operation | ≤ 141 Hz / n , n = number of sensors , n ≤ 10 |
Output
| Output type | 1 push-pull (4 in 1) output, short-circuit protected, reverse polarity protected |
| Rated operating current | 100 mA , short-circuit/overload protected Ie |
| Voltage drop | ≤ 2.5 V Ud |
| Repeat accuracy | ≤ ± 0.1 % of full-scale value |
| Switching frequency | factory setting: 20 Hz programmable max. 45 Hz f |
| Range hysteresis | 1 % of the adjusted operating range (default settings), programmable , min. 1 mm H |
| Temperature influence | ≤ ± 0.75 % of the end value (with temperature compensation) from 10 minutes after switching on the sensor ; 0.17 %/K (without temperature compensation) |
Compliance with standards and directives
| Standard conformity: Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 IEC 61131-9:2013 |
Approvals and certificates
| UL approval | cULus Listed, Class 2 Power Source |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
Mechanical specifications
| Connection type | fixed cable with plug |
| Degree of protection | IP67 |
| Material: Housing | Polycarbonate |
| Material: Transducer | epoxy resin/hollow glass sphere mixture; polyurethane foam |
| Connector: Threading | M8 |
| Connector: Number of pins | 4 |
| Cable: Material | PUR |
| Cable: Color | black |
| Cable: Number of cores | 4 |
| Cable: Core cross section | 0.19 mm2 |
| Cable: Length | 200 mm L |
| Installation position | any position |
| Mass | 20.5 g |
| Tightening torque, fastening screws | max. 0.2 Nm |
| Dimensions: Height | 31 mm |
| Dimensions: Width | 12 mm |
| Dimensions: Length | 23 mm |
Factory settings
| Output | Output mode: Switching point: 85 mm output behavior: Normally closed (NC) |
| Beam width | wide |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals

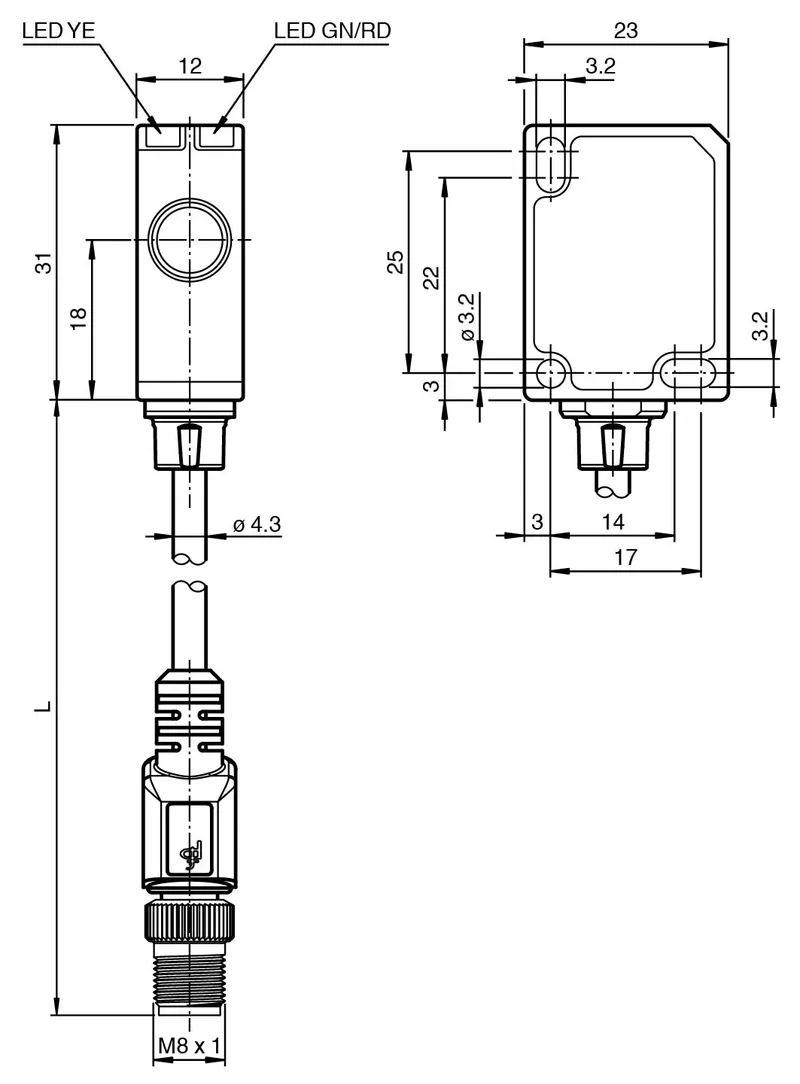

CAD & dimension drawings
| EPLAN macro UC250-F77-EP-IO-0,2M-V31-P002 | EDZ · 62 kB |
| 3-D model (STEP) UC250-F77-EP-IO-0,2M-V31-P002 | STP · 1.0 MB |
