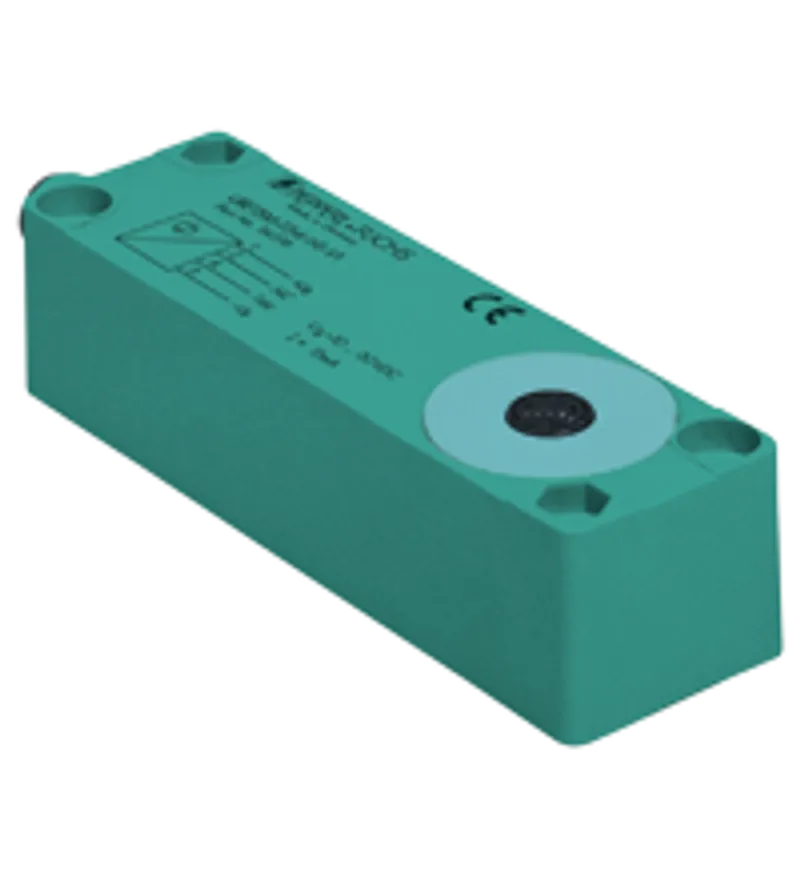

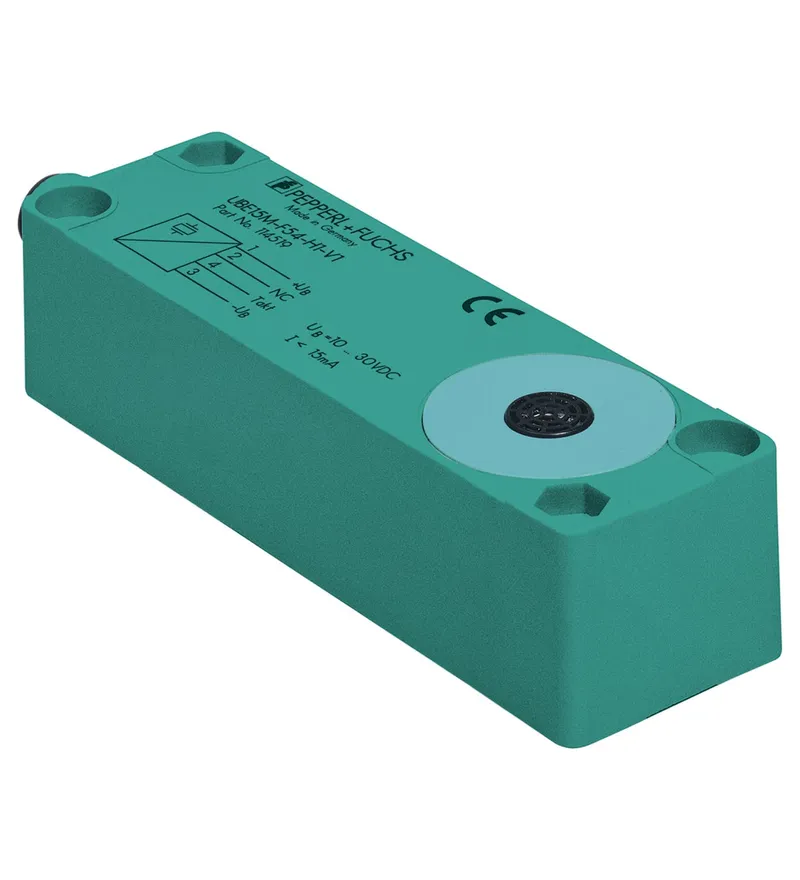

Pepperl Fuchs UBE15M-F54-H1-V1 – Ultrasonic sensor, transmitter
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Double Sheet Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can UBE15M-F54-H1-V1 be shipped?
UBE15M-F54-H1-V1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up UBE15M-F54-H1-V1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for UBE15M-F54-H1-V1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for UBE15M-F54-H1-V1, subject to availability and destination.
• Large sensing range
• Large possible lateral distance between emitter and receiver
• Separate evaluation
Multi-head system, Large sensing range, Large possible lateral distance between emitter and receiver, Separate evaluation, Sensing range: 0 ... 15000 mm , emitter - receiver synchronised, Series: UB-F54, Operating voltage: 16 ... 30 V DC , ripple 10 %SS , 8 V DC with reduced transmitting power, UL approval: cULus Listed, Class 2 Power Source, CCC approval: CCC approval / marking not required for products rated ≤36 V, Connection type: Connector plug M12 x 1 , 4-pin, Housing: PBT
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 114519 |
| Sensing range | 0 ... 15000 mm , emitter - receiver synchronised |
| Transducer frequency | approx. 40 kHz |
| Opening angle | ± 45 ° at -6 dB |
| Temperature drift of echo propagation delay | 0.2 %/K |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Operating voltage | 16 ... 30 V DC , ripple 10 %SS 8 V DC with reduced transmitting power UB |
| No-load supply current | ≤ 10 mA (typ. 6 mA at UB = 24 V DC) I0 |
Input
| Input type | 1 pulse input for transmitter pulse, activation through open collector npn 3.5 V: emitter inactive |
| Pulse length | 100 µs ... 10 ms |
| Pause length | ≥ 50 x pulse length |
Compliance with standards and directives
| Standard conformity: Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 |
Approvals and certificates
| UL approval | cULus Listed, Class 2 Power Source |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | 0 ... 50 °C (32 ... 122 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |

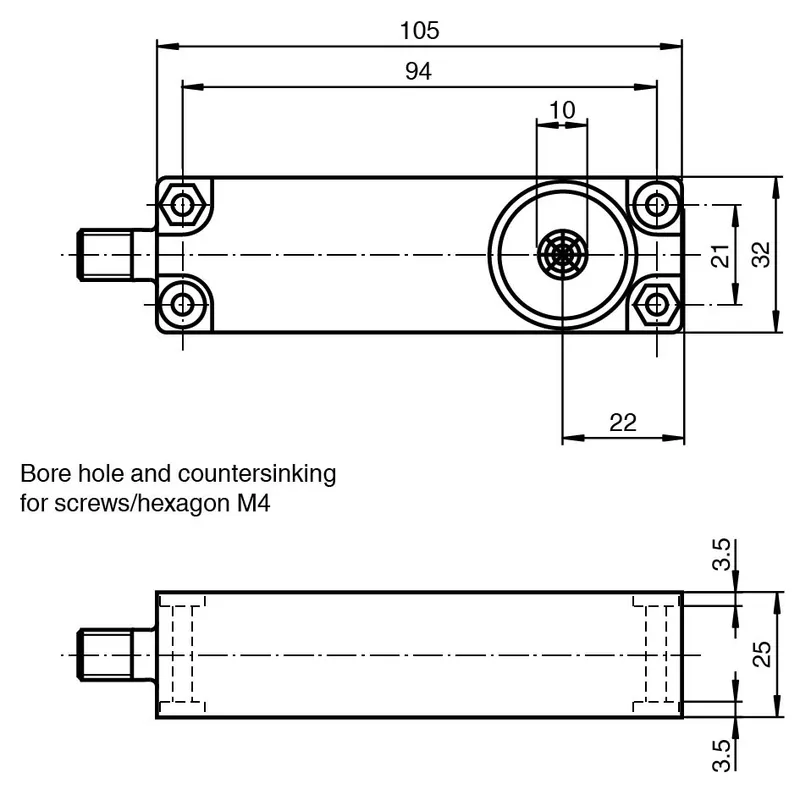

Mechanical specifications

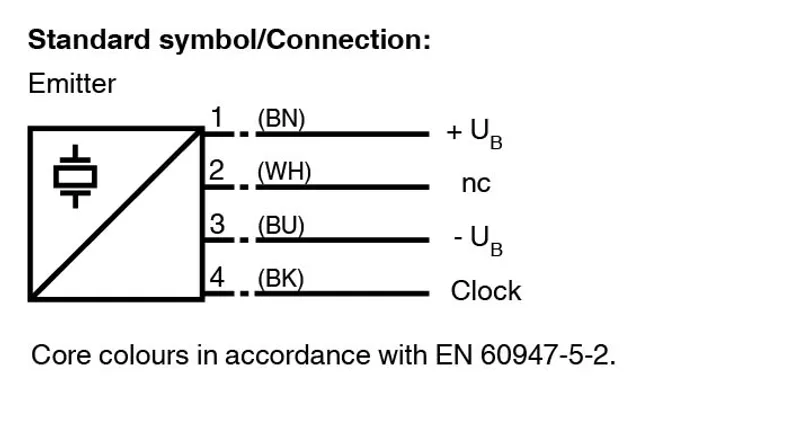

| Connection type | Connector plug M12 x 1 , 4-pin |
| Degree of protection | IP30 |
| Material: Housing | PBT |
| Mass | 110 g |
| Dimensions: Height | 31 mm |
| Dimensions: Width | 105 mm |
| Dimensions: Length | 25 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet UBE15M-F54-H1-V1 | |
| Instruction Manual | PDF · 153 kB |
| Commissioning Instructions | PDF · 81 kB |
CAD & dimension drawings
| 3-D model (STEP) UBE15M-F54-H2-V1 | STP · 143 kB |
Certificates (3)
More Pepperl Fuchs parts

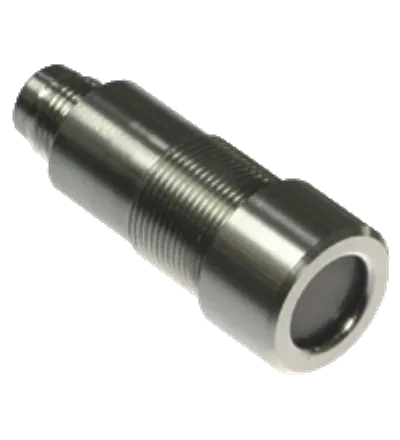

Available on requestUltrasonic sensor UBC400-18GH40-I-V1

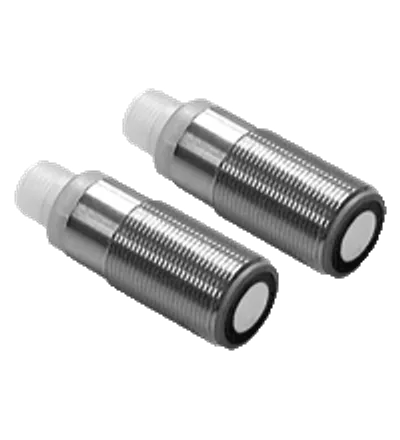

Available on requestThrough-beam ultrasonic barrier UBE1000-18GM40-SE2-V1

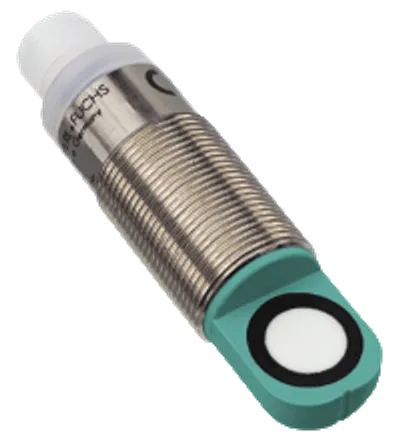

Available on requestThrough-beam ultrasonic barrier UBE1000-18GM40A-SE2-V1Available on requestThrough-beam ultrasonic barrier UBE1000-18GM40A-SE2-V1-Y205349

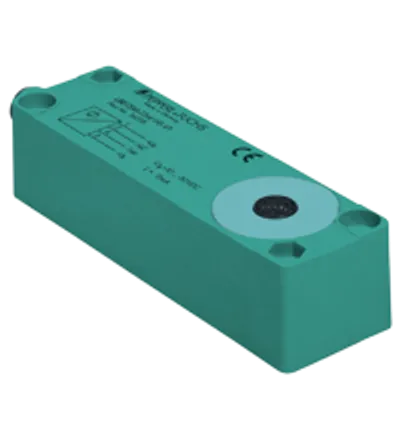

Available on requestUltrasonic sensor, receiver UBE15M-F54-H2-V1

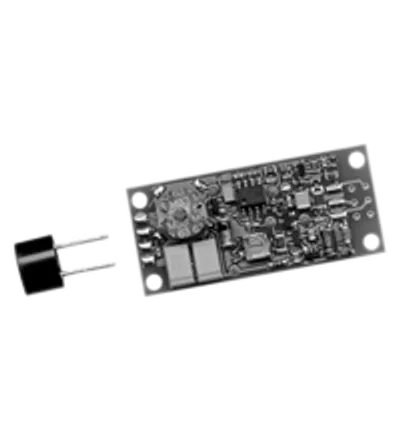

Available on requestUltrasonic sensor, transmitter UBE15M-H1

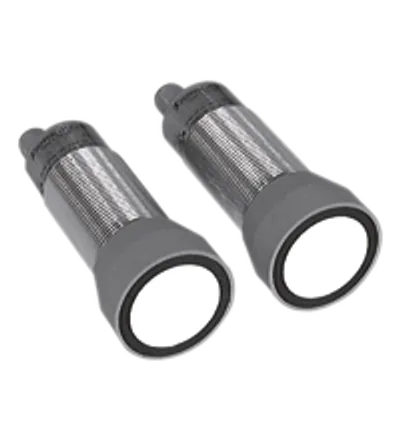

Available on requestThrough-beam ultrasonic barrier UBE4000-30GM-SA2-V15

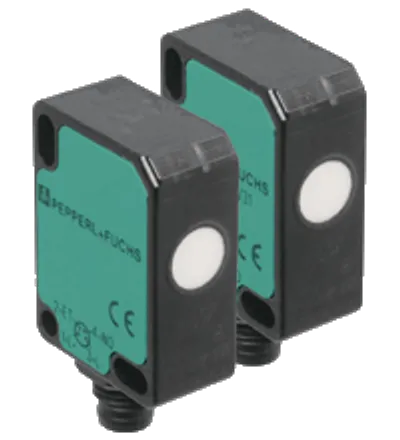

Available on requestThrough-beam ultrasonic barrier UBE800-F77-SE0-V31
