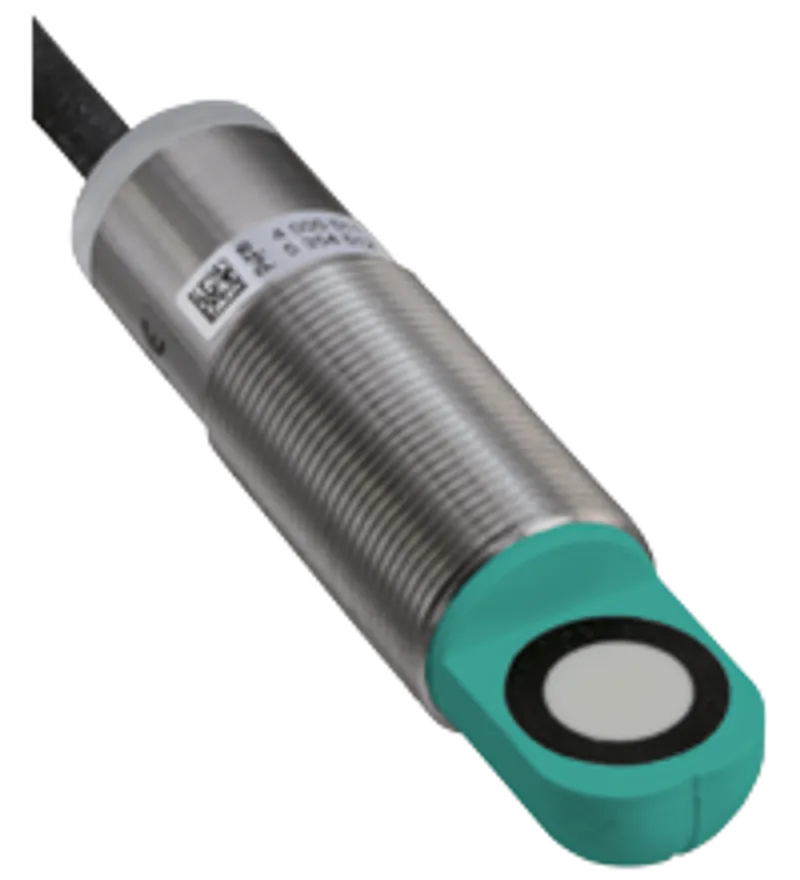

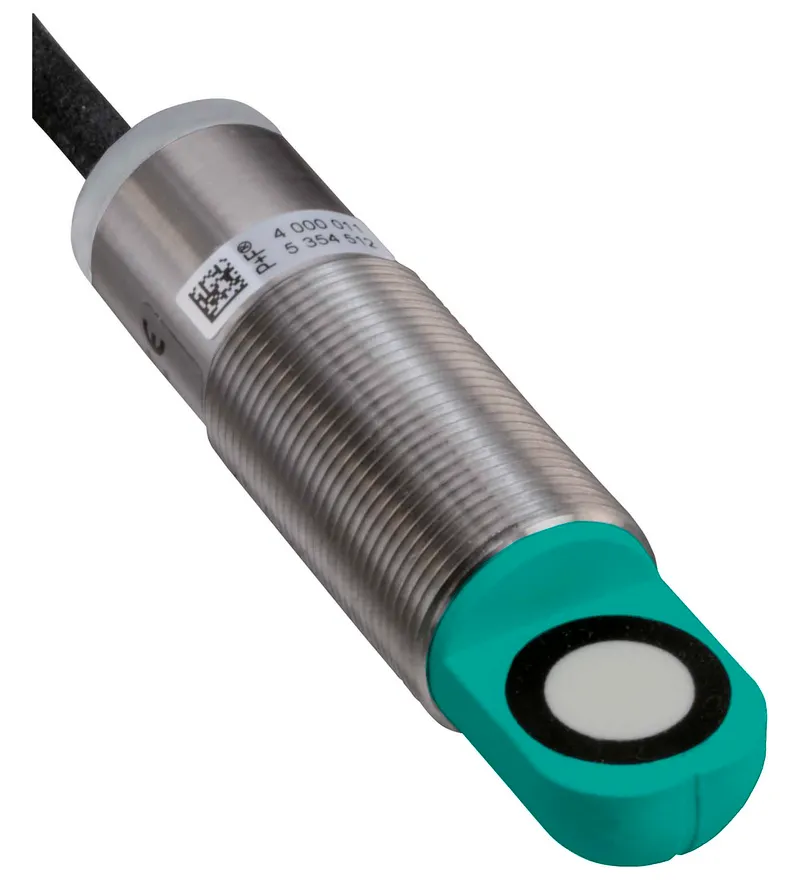

Pepperl Fuchs UB800-18GM40A-E5-610MM-Y – Ultrasonic sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Diffuse Mode and Retroreflective Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Recommended replacement | UB800-18GM40A-E5-V1 |
Shipping & availability
When can UB800-18GM40A-E5-610MM-Y be shipped?
UB800-18GM40A-E5-610MM-Y is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up UB800-18GM40A-E5-610MM-Y in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for UB800-18GM40A-E5-610MM-Y and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for UB800-18GM40A-E5-610MM-Y, subject to availability and destination.
• Short design, 40 mm
• Function indicators visible from all directions
• Switching output
• 5 different output functions can be set
• Program input
• Temperature compensation
• Customer-specific cable length
• Deutsch 4-pin, DT04 connector
Single head system, Short design, 40 mm, Function indicators visible from all directions, Switching output, Series: UB-18GM40, Operating voltage: 10 ... 30 V DC, Output type: 1 switching output E5, PNP NO/NC, programmable, UL approval: cULus Listed, Class 2 Power Source, CCC approval: CCC approval / marking not required for products rated ≤36 V, Connection type: cable, Housing: brass, nickel-plated
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70125619 |
| Sensing range | 50 ... 800 mm |
| Adjustment range | 70 ... 800 mm |
| Dead band | 0 ... 50 mm |
| Standard target plate | 100 mm x 100 mm |
| Transducer frequency | approx. 255 kHz |
| Response delay | approx. 100 ms |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Indicators/operating means
| LED green | Power on |
| LED yellow | indication of the switching state flashing: program function object detected |
| LED red | solid red: Error red, flashing: program function, object not detected |
Electrical specifications
| Operating voltage | 10 ... 30 V DC UB |
| No-load supply current | ≤ 20 mA I0 |
Input

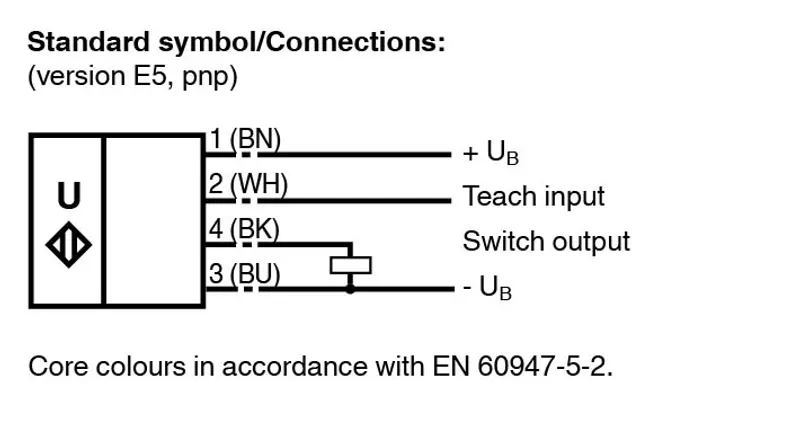

| Input type | 1 program input operating distance 1: -UB ... +1 V, operating distance 2: +6 V ... +UB input impedance: > 4,7 kΩ program pulse: ≥ 1 s |
Output
| Output type | 1 switching output E5, PNP NO/NC, programmable |
| Rated operating current | 200 mA , short-circuit/overload protected Ie |
| Default setting | Switch point A1: 70 mm Switch point A2: 800 mm |
| Voltage drop | ≤ 3 V Ud |
| Repeat accuracy | ≤ 1 % |
| Switching frequency | ≤ 4 Hz f |
| Range hysteresis | 1 % of the set operating distance H |
| Temperature influence | ± 1.5 % of full-scale value |
Compliance with standards and directives
| Standard conformity: Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 |
Approvals and certificates
| UL approval | cULus Listed, Class 2 Power Source |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
Mechanical specifications
| Connection type | cable |
| Degree of protection | IP67 |
| Material: Housing | brass, nickel-plated |
| Material: Transducer | epoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT |
| Cable: Sheath diameter | 4.8 mm |
| Cable: Bending radius | > 38.4 mm , fixed installation > 72 mm , movable installation |
| Cable: Material | PVC |
| Cable: Number of cores | 4 |
| Cable: Core cross section | 4 x 0.5 mm2 |
| Cable: Length | 610 mm L |
| Mass | 65 g |

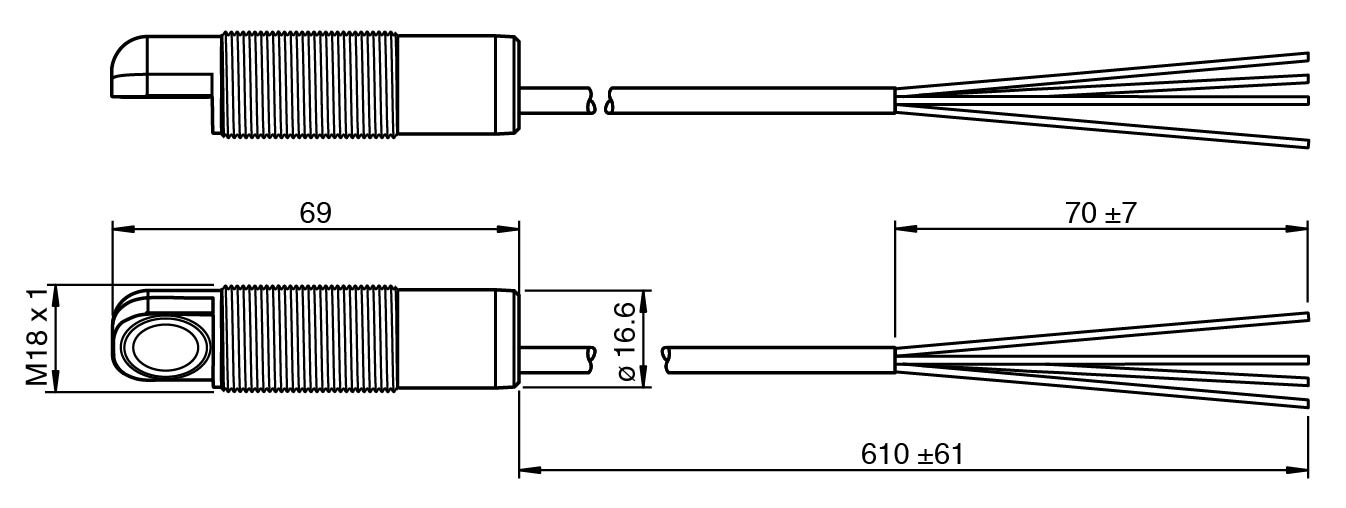

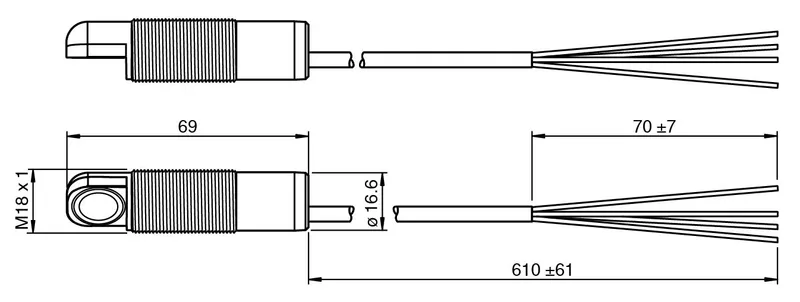

| Dimensions: Length | 69 mm |
| Dimensions: Diameter | 18 mm |
General information
| Scope of delivery | Deutsch connector DT04-4P-CE01 Deutsch wedge W4P German contact 0460-202-1631 |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet UB800-18GM40A-E5-610MM-Y | |
| Instruction Manual | PDF · 153 kB |
Certificates (3)
| UK Declaration of Conformity (Pepperl+Fuchs) | PDF · 66 kB |
| Canada USA UL Ordinary Location (UL-US-2140156-4 / UL-CA-2133660-4) | PDF · 290 kB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 73 kB |
More Pepperl Fuchs parts
Available on requestUltrasonic sensor UB800-18GM40-E5-V1-Y70134323Available on requestUltrasonic sensor UB800-18GM40-I-V1Available on requestUltrasonic sensor UB800-18GM40-U-V1

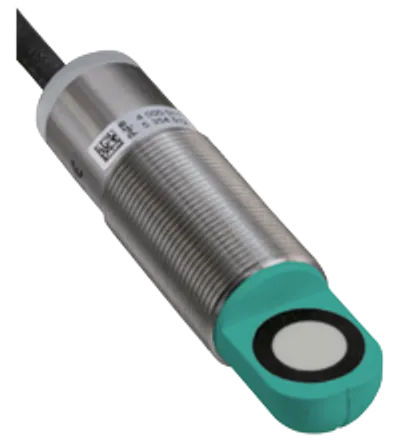

Available on requestUltrasonic sensor UB800-18GM40A-E4-610MM-Y

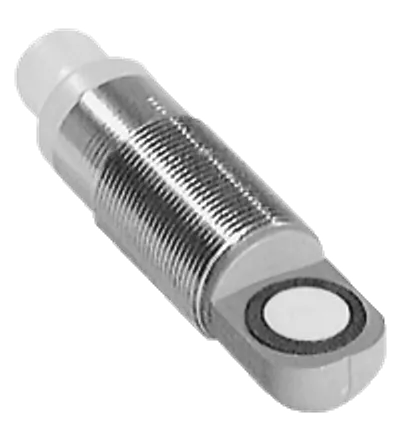

Available on requestUltrasonic sensor UB800-18GM40A-E5-V1Available on requestUltrasonic sensor UB800-18GM40A-E5-V1-Y70109108Available on requestUltrasonic sensor UB800-18GM40A-E5-V1-Y70109109Available on requestUltrasonic sensor UB800-18GM40A-I-0,3M-Y70110930
