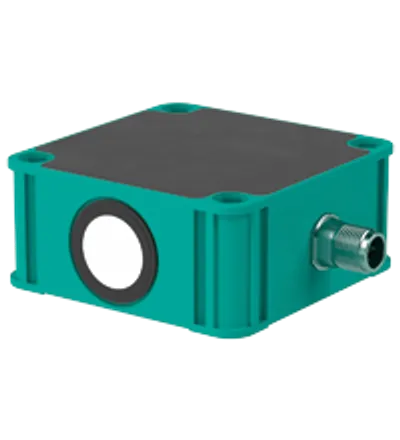

Pepperl Fuchs UB2000-F42-E7-V15 – Ultrasonic sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Diffuse Mode and Retroreflective Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can UB2000-F42-E7-V15 be shipped?
UB2000-F42-E7-V15 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up UB2000-F42-E7-V15 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for UB2000-F42-E7-V15 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for UB2000-F42-E7-V15, subject to availability and destination.
• 2 independent switch outputs
• Extremely small unusable area
• TEACH-IN
• Interference suppression (adjustable divergence of sound cone in close range)
• Temperature compensation
• Synchronization options
• NO/NC selectable
Single head system, 2 independent switch outputs, Extremely small unusable area, TEACH-IN, Series: UB-F42, Operating voltage: 10 ... 30 V DC , ripple 10 %SS, Output type: 2 switch outputs NPN, normally open/close selectable, UL approval: cULus Listed, Class 2 Power Source, CCC approval: CCC approval / marking not required for products rated ≤36 V, Connection type: Connector plug M12 x 1 , 5-pin, Housing: ABS
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 133989 |
| Sensing range | 60 ... 2000 mm |
| Adjustment range | 90 ... 2000 mm |
| Dead band | 0 ... 60 mm |
| Standard target plate | 100 mm x 100 mm |
| Transducer frequency | approx. 175 kHz |
| Response delay | approx. 150 ms |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Indicators/operating means
| LED green | solid green: Power on |
| LED yellow 1 | solid: switching state switch output 1flashing: program function |
| LED yellow 2 | solid: switching state switch output 2flashing: program function |
| LED red | normal operation: "fault"program function: no object detected |
Electrical specifications
| Operating voltage | 10 ... 30 V DC , ripple 10 %SS UB |
| No-load supply current | ≤ 50 mA I0 |

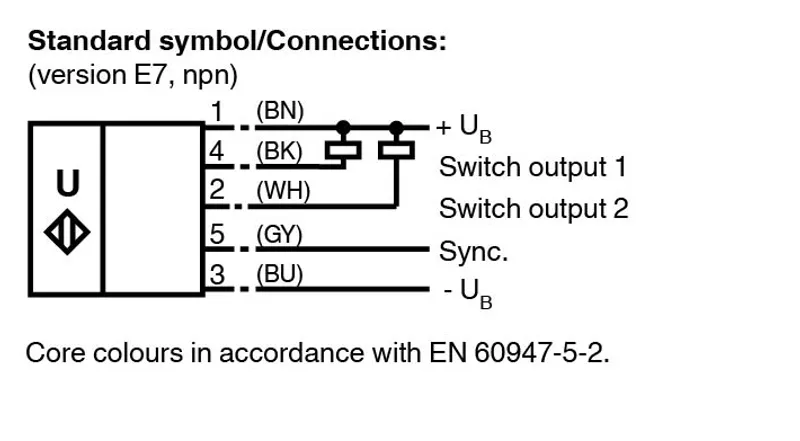

Input/Output
| Synchronization | bi-directional 0 level -UB...+1 V1 level: +4 V...+UB input impedance: > 12 KOhm synchronization pulse: ≥ 100 µs, synchronization interpulse period: ≥ 2 ms |
| Synchronization frequency: Common mode operation | max. 30 Hz |
| Synchronization frequency: Multiplex operation | ≤ 30/n Hz, n = number of sensors |
Output
| Output type | 2 switch outputs NPN, normally open/close selectable |
| Rated operating current | 200 mA , short-circuit/overload protected Ie |
| Default setting | Switch point A1: 90 mm , Switch point A2: 2000 mm , wide sound lobe |
| Voltage drop | ≤ 2.5 V Ud |
| Repeat accuracy | ≤ 0.5 % of switching point |
| Switching frequency | ≤ 2.7 Hz f |
| Range hysteresis | 1 % of the set operating distance H |
| Temperature influence | ± 1 % of full-scale value |
Compliance with standards and directives
| Standard conformity: Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 |
Approvals and certificates
| UL approval | cULus Listed, Class 2 Power Source |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
Mechanical specifications
| Connection type | Connector plug M12 x 1 , 5-pin |
| Degree of protection | IP54 |
| Material: Housing | ABS |
| Material: Transducer | epoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT |
| Mass | 140 g |
| Dimensions: Height | 80 mm |
| Dimensions: Width | 80 mm |
| Dimensions: Length | 34 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet UB2000-F42-E7-V15 | |
| Instruction Manual | PDF · 153 kB |
| Commissioning Instructions | PDF · 167 kB |
CAD & dimension drawings
| 3-D model (STEP) UB2000-F42-E7-V15 | STP · 2.0 MB |
| EPLAN macro UB2000-F42-E7-V15 | EDZ · 66 kB |
