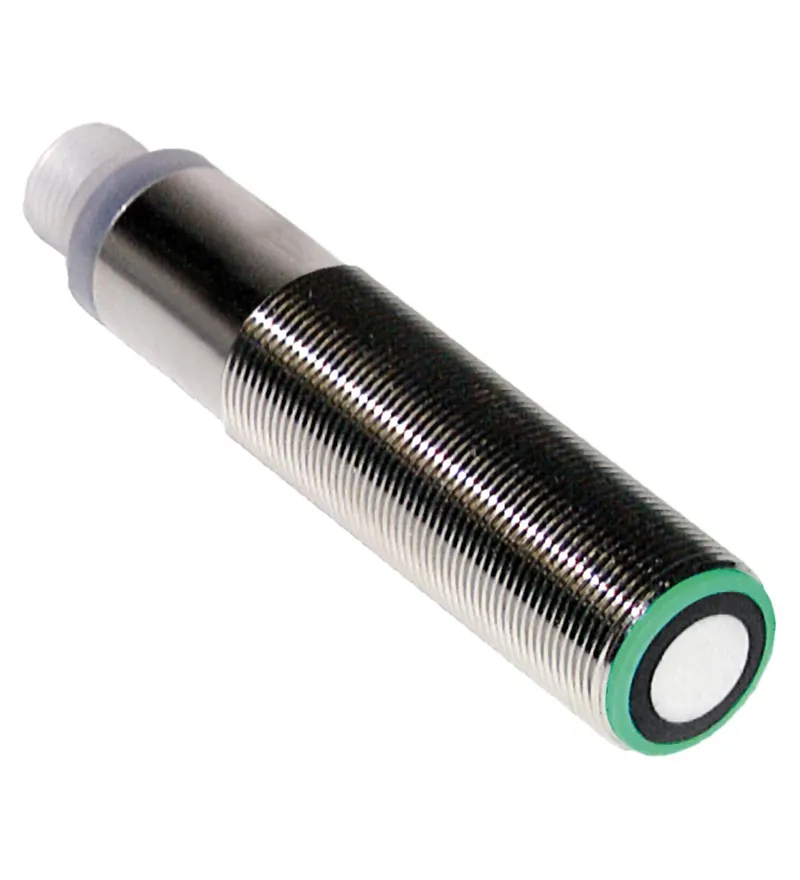

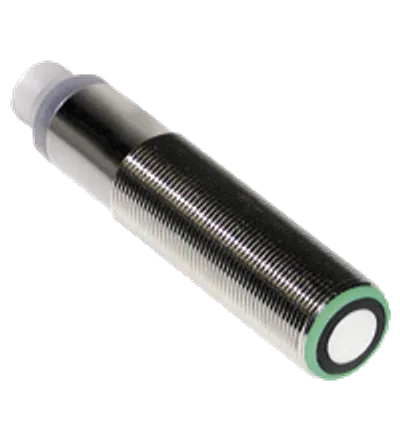

Pepperl Fuchs UB1000-18GM75-E4-V15 – Ultrasonic sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Diffuse Mode and Retroreflective Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can UB1000-18GM75-E4-V15 be shipped?
UB1000-18GM75-E4-V15 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up UB1000-18GM75-E4-V15 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for UB1000-18GM75-E4-V15 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for UB1000-18GM75-E4-V15, subject to availability and destination.
• Switching output
• 5 different output functions can be set
• Selectable sound lobe width
• Program input
• Synchronization options
• Deactivation option
• Temperature compensation
• Very small unusable area
Single head system, Switching output, 5 different output functions can be set, Selectable sound lobe width, Series: UB-18GM75, Operating voltage: 10 ... 30 V DC , ripple 10 %SS, Output type: 1 switch output NPN Normally open/closed , programmable, UL approval: cULus Listed, Class 2 Power Source, CCC approval: CCC approval / marking not required for products rated ≤36 V, Connection type: Connector plug M12 x 1 , 5-pin, Housing: brass, nickel-plated
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 204529 |
| Sensing range | 70 ... 1000 mm |
| Adjustment range | 90 ... 1000 mm |
| Dead band | 0 ... 70 mm |
| Standard target plate | 100 mm x 100 mm |
| Transducer frequency | approx. 255 kHz |
| Response delay | approx. 125 ms |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Indicators/operating means
| LED yellow | indication of the switching state flashing: program function object detected |
| LED red | solid red: Error red, flashing: program function, object not detected |
Electrical specifications
| Operating voltage | 10 ... 30 V DC , ripple 10 %SS UB |
| No-load supply current | ≤ 50 mA I0 |
Input/Output
| Synchronization | 1 synchronous connection, bi-directional 0-level: -UB...+1 V 1-level: +4 V...+UB input impedance: > 12 kΩ synchronization pulse: ≥ 100 µs, synchronization interpulse period: ≥ 2 ms |
| Synchronization frequency: Common mode operation | max. 40 Hz |
| Synchronization frequency: Multiplex operation | ≤ 40 Hz / n, n = number of sensors, n ≤ 5 |
Input
| Input type | 1 program input, operating range 1: -UB ... +1 V, operating range 2: +4 V ... +UB input impedance: > 4.7 kΩ; program pulse: ≥ 1 s |
Output
| Output type | 1 switch output NPN Normally open/closed , programmable |
| Rated operating current | 200 mA , short-circuit/overload protected Ie |
| Voltage drop | ≤ 3 V Ud |
| Repeat accuracy | ≤ 1 % |
| Switching frequency | max. 3 Hz f |
| Range hysteresis | 1 % of the set operating distance H |
| Temperature influence | ± 1.5 % of full-scale value |
Compliance with standards and directives
| Standard conformity: Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 |
Approvals and certificates
| UL approval | cULus Listed, Class 2 Power Source |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |

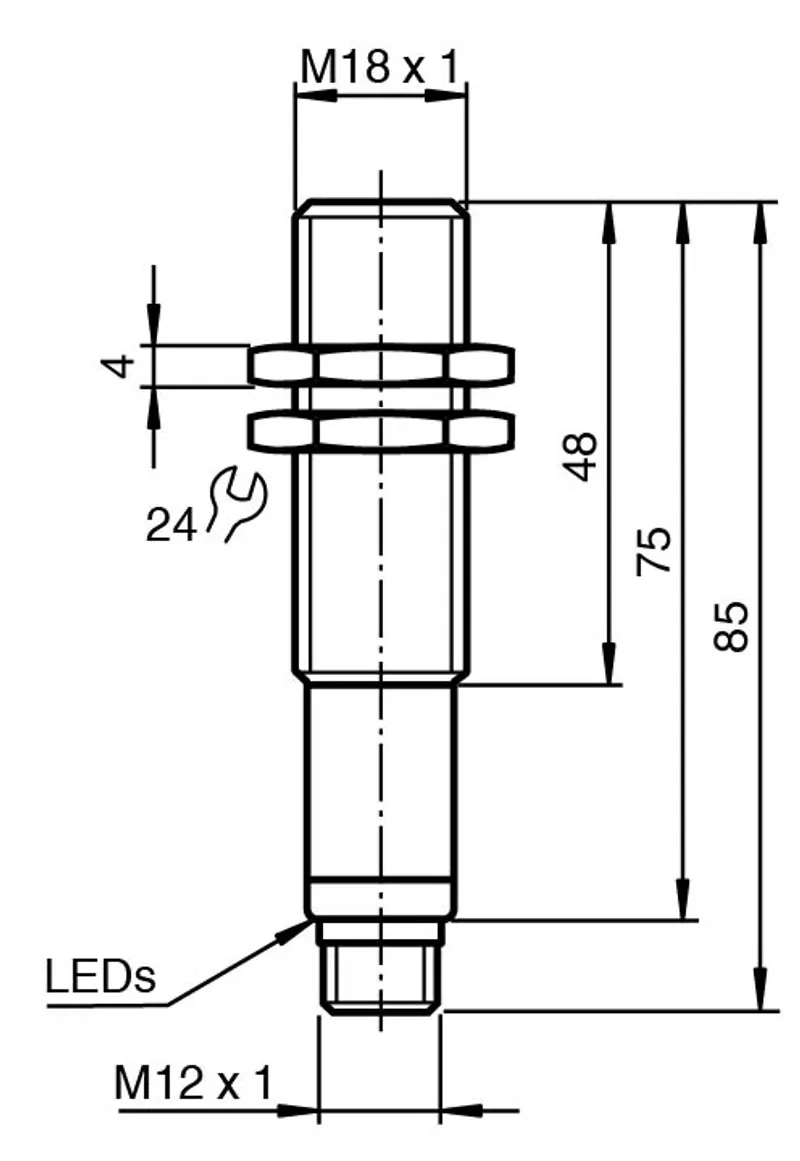

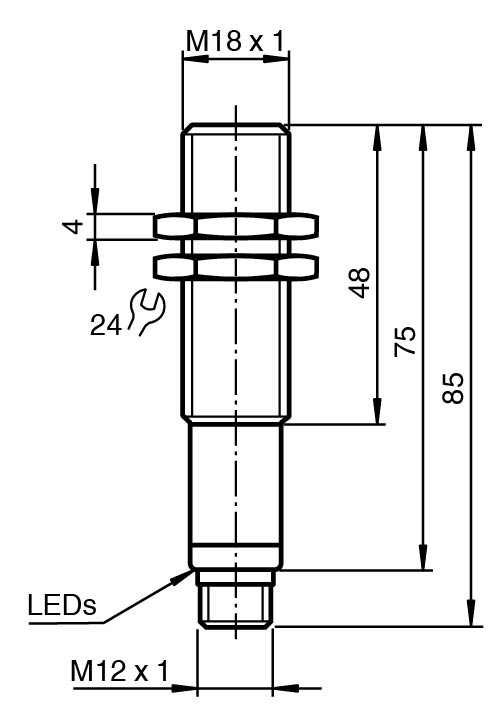

Mechanical specifications
| Connection type | Connector plug M12 x 1 , 5-pin |
| Degree of protection | IP67 |
| Material: Housing | brass, nickel-plated |
| Material: Transducer | epoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT |
| Mass | 60 g |
| Dimensions: Length | 75 mm |
| Dimensions: Diameter | 18 mm |
Factory settings
| Output | Switch point A1: 90 mm Switch point A2: 1000 mm output function: Window mode output behavior: NO contact |
| Beam width | wide |
Pin/wire assignment
| Connector pinout: Pin 1 | L+ |
| Connector pinout: Pin 2 | Program input |
| Connector pinout: Pin 3 | L- |
| Connector pinout: Pin 4 | Q |
| Connector pinout: Pin 5 | Sync |
| Function description: Pin 1 / brown (BN) | Supply voltage L+ |
| Function description: Pin 2 / white (WH) | Program input |
| Function description: Pin 3 / blue (BU) | Supply voltage L- |
| Function description: Pin 4 / black (BK) | Output, object present -> Output Q to L+ |
| Function description: Pin 5 / gray (GY) | Synchronization input |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet UB1000-18GM75-E4-V15 | |
| Instruction Manual | PDF · 153 kB |
| Commissioning Instructions | PDF · 552 kB |
CAD & dimension drawings
| 3-D model (STEP) UB1000-18GM75-E5-V15-Y70182388 | STP · 34 kB |
| EPLAN macro UB1000-18GM75-E4-V15 | EDZ · 68 kB |
Certificates (3)
| Canada USA UL Ordinary Location (UL-US-2140156-4 / UL-CA-2133660-4) | PDF · 290 kB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 49 kB |
| UK Declaration of Conformity (Pepperl+Fuchs) | PDF · 41 kB |
More Pepperl Fuchs parts

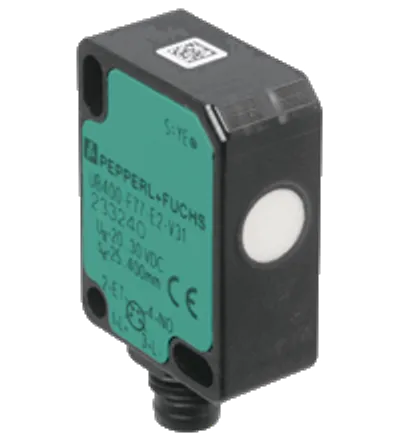

Available on requestUltrasonic direct detection sensor UB100-F77-E1-V31

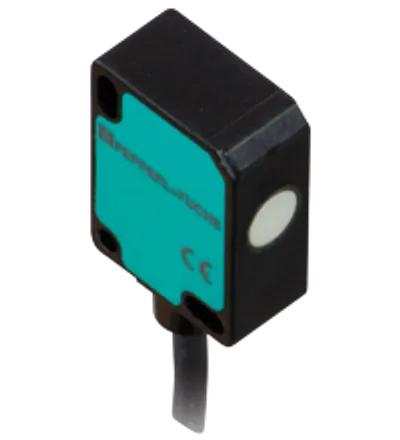

Available on requestUltrasonic direct detection sensor UB100-F77-E2-2MAvailable on requestUltrasonic direct detection sensor UB100-F77-E2-V31Available on requestUltrasonic direct detection sensor UB100-F77-E3-V31
