Pepperl Fuchs TAB-IND10WIUAC1F2XXJW.1 – Tablet computer
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Division 2 / Zone 2 |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can TAB-IND10WIUAC1F2XXJW.1 be shipped?
TAB-IND10WIUAC1F2XXJW.1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TAB-IND10WIUAC1F2XXJW.1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TAB-IND10WIUAC1F2XXJW.1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TAB-IND10WIUAC1F2XXJW.1, subject to availability and destination.
• Rugged, industrial-grade tablet computer
• Mobility and flexibility with multiple accessories
• Enterprise durability and longevity meets sleek design
• Front facing NFC antenna
• Developed in-house
• IP 65 protection class
Industrial grade, 10.1 inches, Windows® 11, Wi-Fi, 16 GB RAM, 256 GB storage
Specifications
Hardware
| Order code (Pepperl+Fuchs part number) | 480993-100016 |
| Processor | Intel® N100, Quad Core Processor 2.9 GHz |
| RAM | 16 GByte |
| Camera: Front camera | 13 MP |
| Camera: Main camera | 13 MP |
| Internal data memory | 256 GByte UFS |
| Optional data memory | microSDXC Card Slot, accessible by end user |
| Sensors | E-compass, accelerometer, gyro, ambient light sensor, proximity sensor |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Indicators/operating means
| Display: Touch screen technology | Multi-touch |
| Display: Screen size | 10.1" |
| Display: Aspect ratio | 16:10 |
| Display: Screen resolution | 1920 x 1200 (WUXGA) |
| Display: Brightness | 660 cd/m2 |
| Display: Special Features | Passive stylus support (4 mm tip) Glove support (support of cotton gloves) Improved usage in wet environments (rain & outdoor) |
Electrical specifications
| Battery type | Li-ion (replaceable) 37.19 Wh 7.7 V 4830 mAh |
| Power supply | Note: For USB-C PD Charging use only PS2 (LPS) compliant wall charger that has at least 27 W and follows USB-C standard. |
Interface
| I/O ports | USB-C, USB 3.1 Gen 1, PD (12V/3A) and DP 1.2 (for fast charging & debugging) Docking connector: USB 3.1 Gen 1, HDMI 1.4b SmartBack Connector for easy USB accessory integration |
Communication
| WLAN | WLAN IEEE 802.11 ax+r/k/v, Wi-Fi 6E, WiDi |
| Bluetooth | Bluetooth® 5.3 Bluetooth® Low Energy |
| GPS sensor | GPS, GNSS, Galileo |
| NFC | Front-facing NFC Secure element |
Software
| Operating system | Windows® 11 LTSC 64 Bit |
Cybersecurity
| IT security: Biometrics | Fingerprint sensor |
Ambient conditions
| Operating temperature | -10 ... 50 °C (14 ... 122 °F) |
| Storage temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Relative humidity | 10 % ... 90 % |
Mechanical specifications
| Degree of protection | IP65 Drop resistance from 1 m on concrete and 1.22 m on plywood With optional scanner frame: up to 1.5 m on plywood With optional rugged frame: up to 1.8 m on concrete |
| Mass | approx. 826 g |
| Dimensions: Height | 180.7 mm |
| Dimensions: Width | 269 mm |
| Dimensions: Depth | 12.7 mm |
International approvals
| Approved for | EU (UK), US, CA, AU, JP, MX |
General information
| Scope of delivery | Tab-IND® |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet TAB-IND10WIUAC1F2XXJW.1 |
More Pepperl Fuchs parts
Available on requestTablet computer TAB-EX05-DZ2-****NAM/CAN*
Available on requestPepperl Fuchs TAB-IND10* (WIN & SCANNER FRAME) – Tablet computer. Tab-IND (industrial grade)
Available on requestTablet computer TAB-IND10WINAB1N0XXJW.1Available on requestTablet computer TAB-IND10WINAB1NBXXJW.1
Available on requestpedestal TABLE STAND
Available on requestTravel charger TC S03K KOREA
Available on requestPTFE protection cap TC-12-U

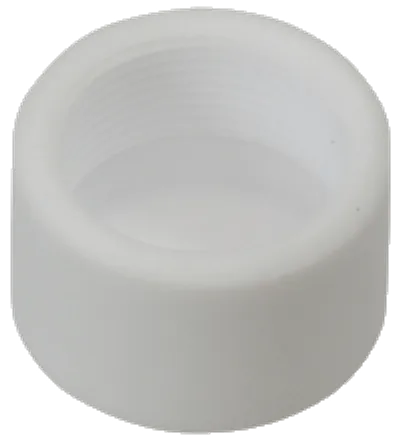

Available on requestPTFE protection cap TC-18-U
