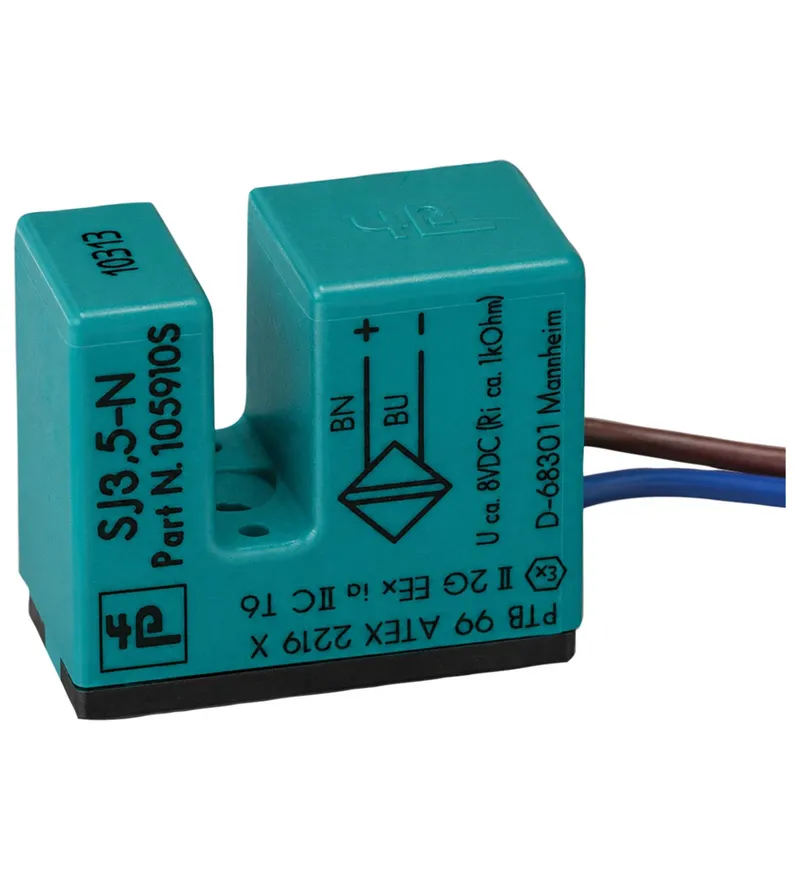

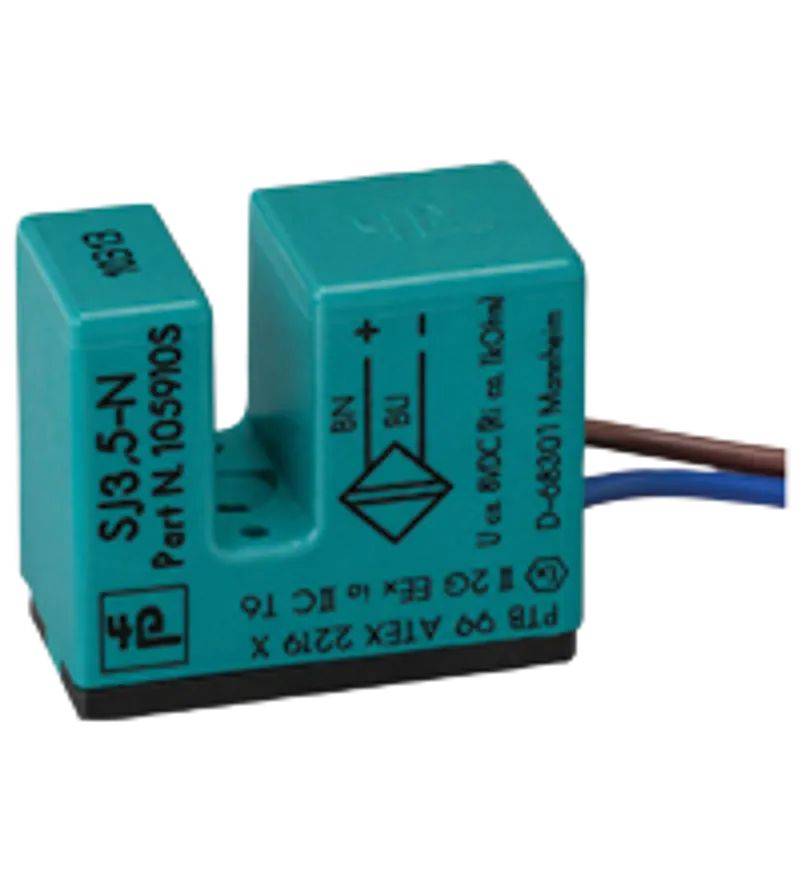

Pepperl Fuchs SJ3,5-N-Y046116 – Inductive slot sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can SJ3,5-N-Y046116 be shipped?
SJ3,5-N-Y046116 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up SJ3,5-N-Y046116 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for SJ3,5-N-Y046116 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SJ3,5-N-Y046116, subject to availability and destination.
• 3.5 mm slot width
• Spacer rubber NRB60 in black
Extended temperature range, Suitable for 2:1 technology, Switching function: Normally closed (NC), Output type: NAMUR, Output type: 2-wire, Construction type: Slot, Series: Slot type, Suitable for 2:1 technology, Type of voltage: DC, Equipment protection level Ga: IECEx PTB 11.0091X, Equipment protection level Gb: IECEx PTB 11.0091X, Equipment protection level Da: IECEx PTB 11.0091X, Equipment protection level Mb: IECEx PTB 11.0091X, Equipment protection level Ga: PTB 99 ATEX 2219 X
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70203989 |
| Switching function | Normally closed (NC) |
| Output type | NAMUR |
| Slot width | 3.5 mm |
| Depth of immersion (lateral) | 5 ... 7 mm , typ. 6 mm |
| Output type | 2-wire |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Nominal voltage | 8.2 V (Ri approx. 1 kΩ) Uo |
| Operating voltage | 5 ... 25 V UB |
| Switching frequency | 0 ... 3000 Hz f |
| Hysteresis | 0.41 ... 0.6 mm H |
| Suitable for 2:1 technology | yes , Reverse polarity protection diode not required |
| Current consumption: Measuring plate not detected | ≥ 3 mA at nominal voltage |
| Current consumption: Measuring plate detected | ≤ 1 mA at nominal voltage |
Safety-relevant product characteristics
| MTTFd | 8415 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Compliance with standards and directives
| Standard conformity: NAMUR | EN 60947-5-6:2000 IEC 60947-5-6:1999 |
| Standard conformity: Standards | EN IEC 60947-5-2 |
Approvals and certificates
| IECEx approval: Equipment protection level Ga | IECEx PTB 11.0091X |
| IECEx approval: Equipment protection level Gb | IECEx PTB 11.0091X |
| IECEx approval: Equipment protection level Da | IECEx PTB 11.0091X |
| IECEx approval: Equipment protection level Mb | IECEx PTB 11.0091X |
| ATEX approval: Equipment protection level Ga | PTB 99 ATEX 2219 X |
| ATEX approval: Equipment protection level Gb | PTB 99 ATEX 2219 X |
| ATEX approval: Equipment protection level Da | PTB 99 ATEX 2219 X |
| UL approval | cURus Recognized Load Type: General Purpose Circuitry: Class 2 Power Source Supply/Switching Voltage: 8.2 V DC Further UL information see section "Additional Information" |
Ambient conditions
| Ambient temperature | -25 ... 100 °C (-13 ... 212 °F) |
Mechanical specifications
| Connection type | flexible leads LiY |
| Housing material | PBT |
| Degree of protection | IP67 |
| Cable: Cable diameter | 1.1 mm ± 0.1 mm |
| Cable: Bending radius | > 10 x cable diameter |
| Cable: Material | PVC |
| Cable: Core cross section | 0.14 mm2 |
| Cable: Length | 500 mm L |

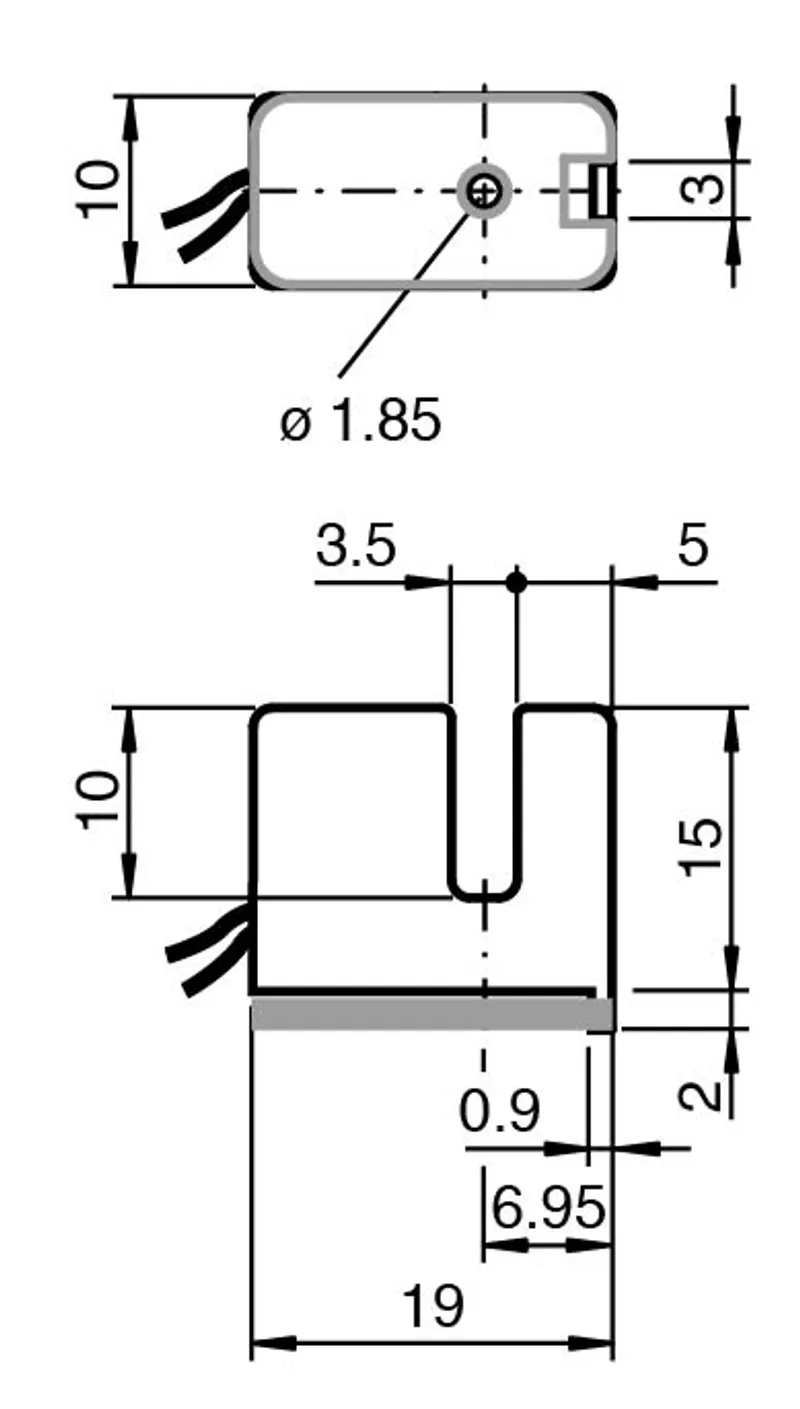

| Dimensions: Height | 15 mm |
| Dimensions: Width | 10 mm |
| Dimensions: Length | 19.5 mm |
General information
| Use in the hazardous area | see instruction manuals |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet SJ3,5-N-Y046116 | |
| Instruction Manual | PDF · 188 kB |
CAD & dimension drawings
| 3-D model (STEP) SJ3,5-H-Y17012 | STP · 66 kB |
Certificates (4)
More Pepperl Fuchs parts

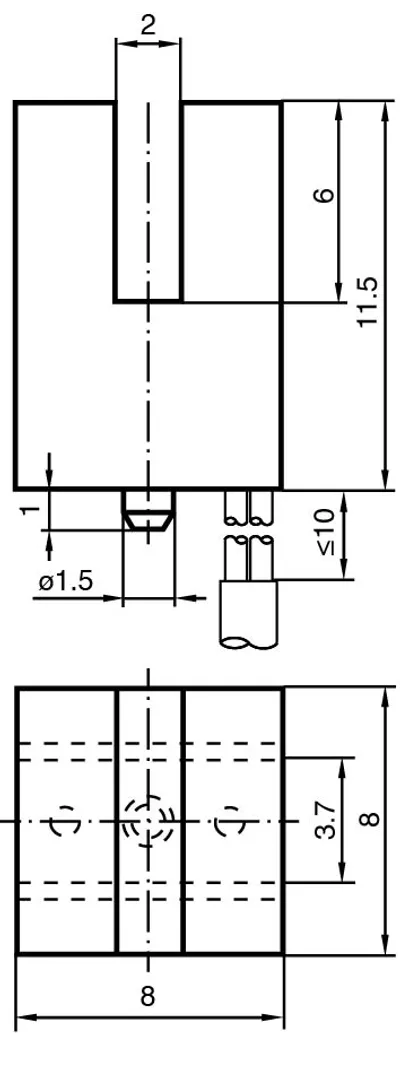

Available on requestInductive slot sensor SJ2-N-Y34361

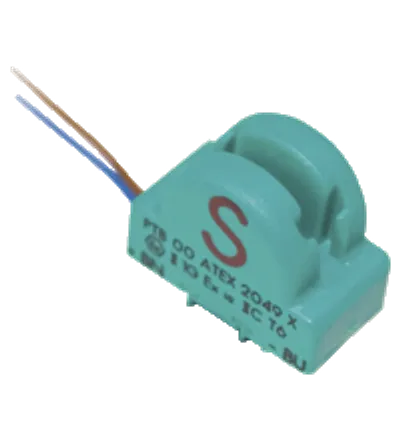

Available on requestInductive slot sensor SJ2-SNAvailable on requestInductive slot sensor SJ2-SN-Y70122212Available on requestInductive slot sensor SJ2-SN-Y89620

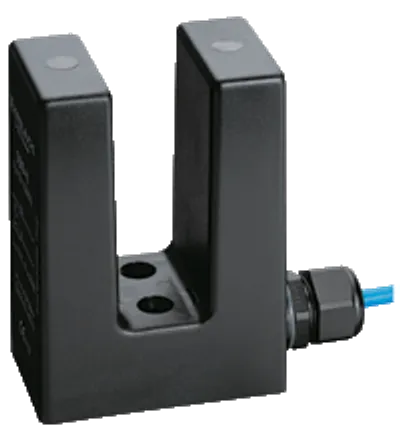

Available on requestInductive slot sensor SJ30-AAvailable on requestInductive slot sensor SJ30-A2Available on requestInductive slot sensor SJ30-N

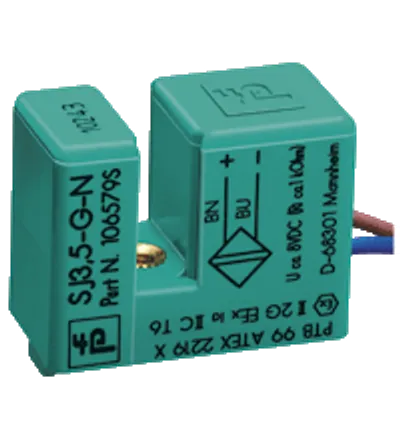

Available on requestInductive slot sensor SJ3,5-G-N
