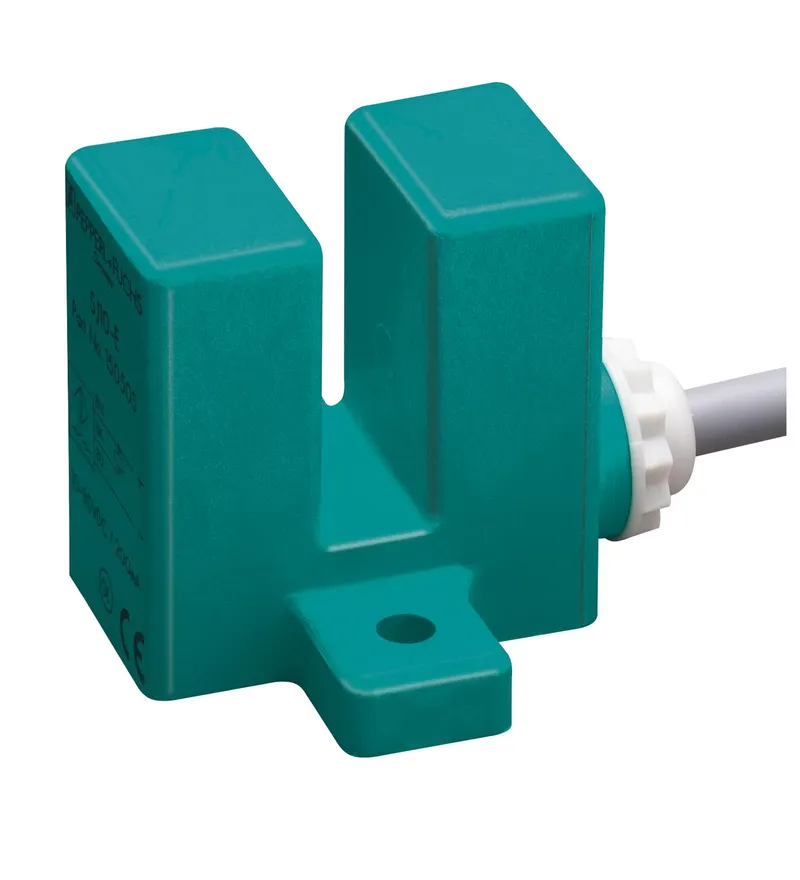

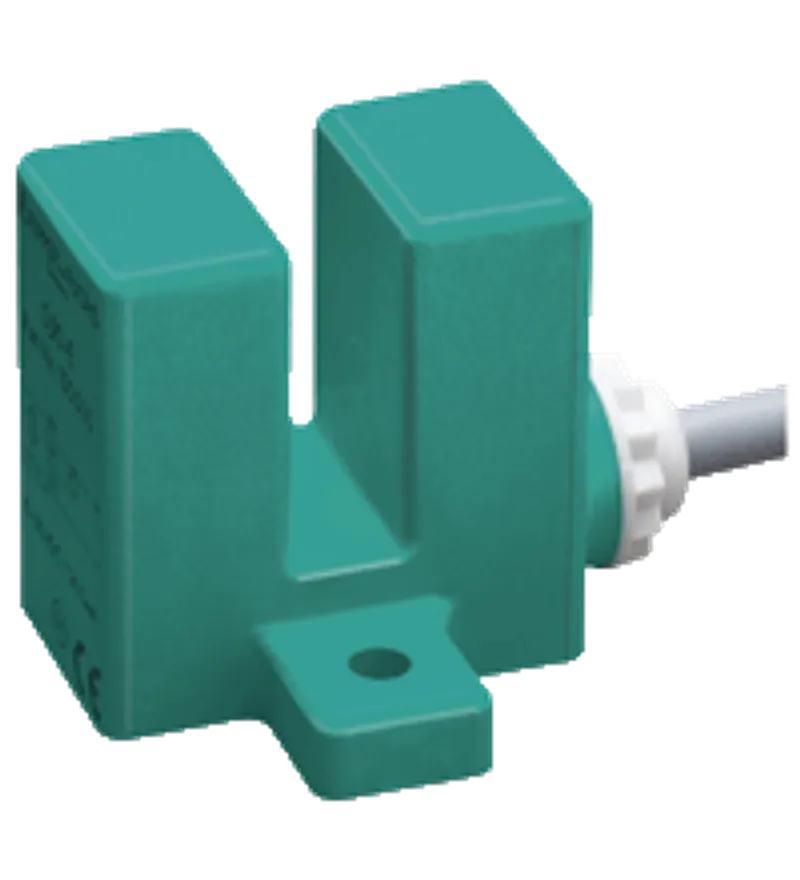

Pepperl Fuchs SJ10-E – Inductive slot sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can SJ10-E be shipped?
SJ10-E is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up SJ10-E in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for SJ10-E and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SJ10-E, subject to availability and destination.
• 10 mm slot width
• 3-wire DC
Switching function: Normally open (NO), Output type: NPN, Output polarity: DC, Output type: 3-wire, Construction type: Slot, Series: Slot type, Operating voltage: 10 ... 30 V DC, Type of voltage: DC, Connection type: cable, Housing material: PBT, Degree of protection: IP67, Material: PVC
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 015050 |
| Switching function | Normally open (NO) |
| Output type | NPN |
| Slot width | 10 mm |
| Depth of immersion (lateral) | 13.5 ... 16.5 mm |
| Output polarity | DC |
| Output type | 3-wire |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Operating voltage | 10 ... 30 V DC UB |
| Switching frequency | 0 ... 1000 Hz f |
| Hysteresis | typ. 5% H |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Voltage drop | ≤ 3 V Ud |
| Operating current | 0 ... 200 mA IL |
| No-load supply current | ≤ 15 mA I0 |
Compliance with standards and directives
| Standard conformity: Standards | EN IEC 60947-5-2 |
Approvals and certificates
| UL approval | cULus Listed Load Type: Resistive Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 200 mA |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
Mechanical specifications
| Connection type | cable |
| Housing material | PBT |
| Degree of protection | IP67 |
| Cable: Wire end ferrules | yes |
| Cable: Cable diameter | 6.4 mm ± 0.2 mm |
| Cable: Bending radius | > 10 x cable diameter |
| Cable: Material | PVC |
| Cable: Color | Gray |
| Cable: Number of cores | 3 |
| Cable: Core cross section | 0.75 mm2 |
| Cable: Length | 2 m L |
| Mass | 221 g |
| Tightening torque, fastening screws | 3 Nm |

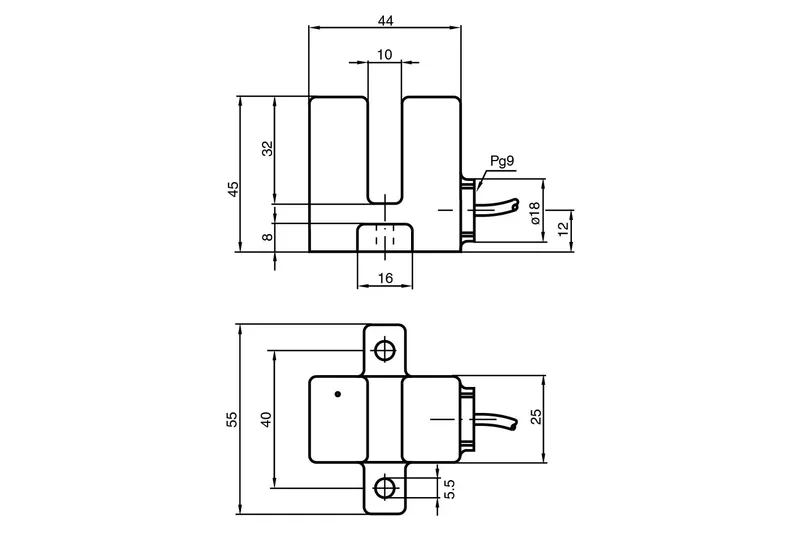

| Dimensions: Height | 45 mm |
| Dimensions: Width | 55 mm |
| Dimensions: Length | 44 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet SJ10-E |
CAD & dimension drawings
| 3-D model (STEP) SJ10-N-5M | STP · 131 kB |
| EPLAN macro SJ10-E | EDZ · 63 kB |
Certificates (3)
More Pepperl Fuchs parts
Available on requestSISTEMA Library SISTEMA Library Inductive Safety SensorsAvailable on requestSISTEMA Library SISTEMA Library Industrial Vision ComponentsAvailable on requestSISTEMA Library SISTEMA Library Photoelectric Safety SensorsAvailable on requestSISTEMA Library SISTEMA Library Safety Encoder

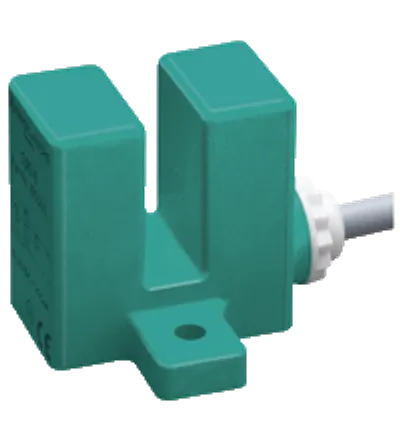

Available on requestInductive slot sensor SJ10-E2Available on requestInductive slot sensor SJ10-NAvailable on requestInductive slot sensor SJ10-N-5M

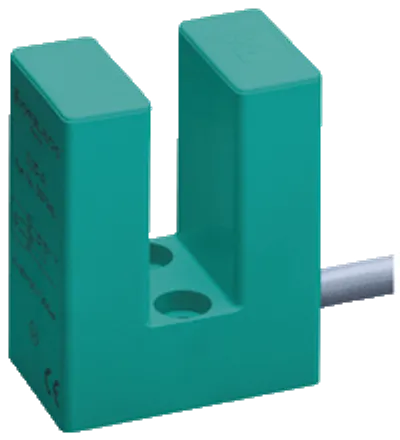

Available on requestInductive slot sensor SJ15-A2
