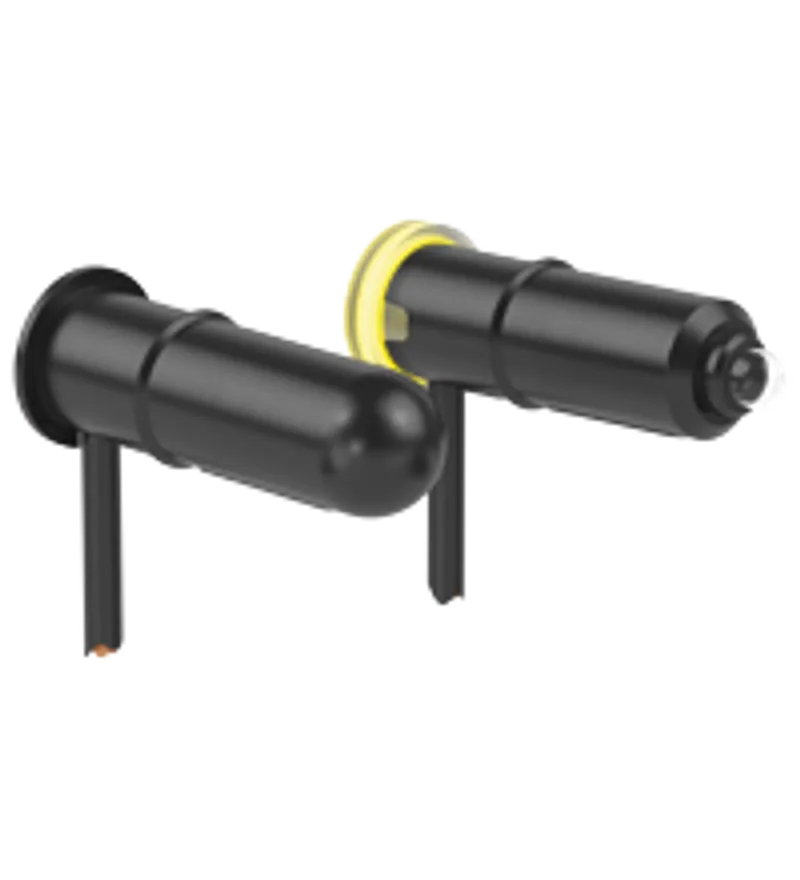

Safety edge SIGNAL12LP-P-12M-OS-1/10.5M — photo 1 of 3

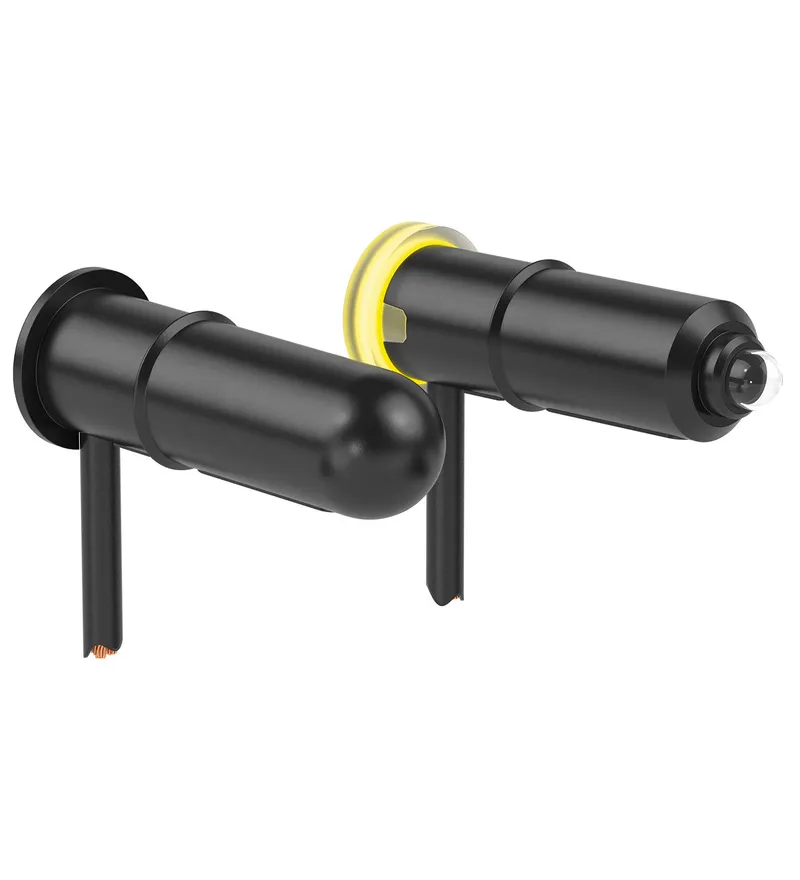

Safety edge SIGNAL12LP-P-12M-OS-1/10.5M — photo 2 of 3

Safety edge SIGNAL12LP-P-12M-OS-1/10.5M — photo 3 of 3

Available on request

Pepperl Fuchs SIGNAL12LP-P-12M-OS-1/10.5M – Safety edge

MPN: SIGNAL12LP-P-12M-OS-1/10.5M · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Safety Edges
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can SIGNAL12LP-P-12M-OS-1/10.5M be shipped?

SIGNAL12LP-P-12M-OS-1/10.5M is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up SIGNAL12LP-P-12M-OS-1/10.5M in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for SIGNAL12LP-P-12M-OS-1/10.5M and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SIGNAL12LP-P-12M-OS-1/10.5M, subject to availability and destination.

• closing edge monitoring for industrial doors up to 12 m width

• for use in GP series rubber profiles

• Safety thru-beam sensor with OSE output

• Comprehensive accessories

closing edge monitoring for industrial doors up to 12 m width, for use in GP series rubber profiles, Safety thru-beam sensor with OSE output, Comprehensive accessories, Function: Secure, Sensor principle: Thru-beam sensor, Operating voltage: battery operated 3 ... 6 V DC , Coiled Cable: 9 ... 27 V DC, Output type: OSE, Signal output: 900 Hz , Transistor output loadable with max. 20 mA , short-circuit protected

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	70181957
Effective detection range	1 ... 12 m
Threshold detection range	12 m
Number of protective field beams	1
Light source	IRED
Light type	950 nm IR light pulsed
Marking	CE
Optical face	frontal
Lifecycle	Active (current Pepperl+Fuchs product)

Indicators/operating means

Operation indicator	LED yellow
Function indicator	LED yellow: constantly on - object detected constantly off - object not detected

Electrical specifications

Operating voltage	battery operated 3 ... 6 V DC Coiled Cable: 9 ... 27 V DC UB
Operating current	battery operated 1.6 mA coiled 3.8 mA IB

Output

Output type	OSE
Switching type	light-on
Signal output	900 Hz , Transistor output loadable with max. 20 mA , short-circuit protected
Energized/De-energized delay	typ. 100 ms

Conformity

Functional safety	ISO 13849-1 , Cat. 2 PL d , certified by TÜV Nord
Product standard	EN 61000-6-2, EN 61000-6-3 , EN 12978

Ambient conditions

Ambient temperature	-25 ... 75 °C (-13 ... 167 °F)
Storage temperature	-25 ... 75 °C (-13 ... 167 °F)

Mechanical specifications

Degree of protection	IP67 according to EN 60529 molded
Material: Housing	Emitter: black ABS / Receiver: Lexan (PC) , black
Cable: Cable diameter	3.4 mm
Cable: Material	PUR , halogen-free
Cable: Number of cores	3
Cable: Core cross section	0.14 mm2
Cable: Length	Emitter: 1 m Receiver: 10.5 m L
Mass	at 1 m Cable: 21 g at 10,5 m Cable: 155 g

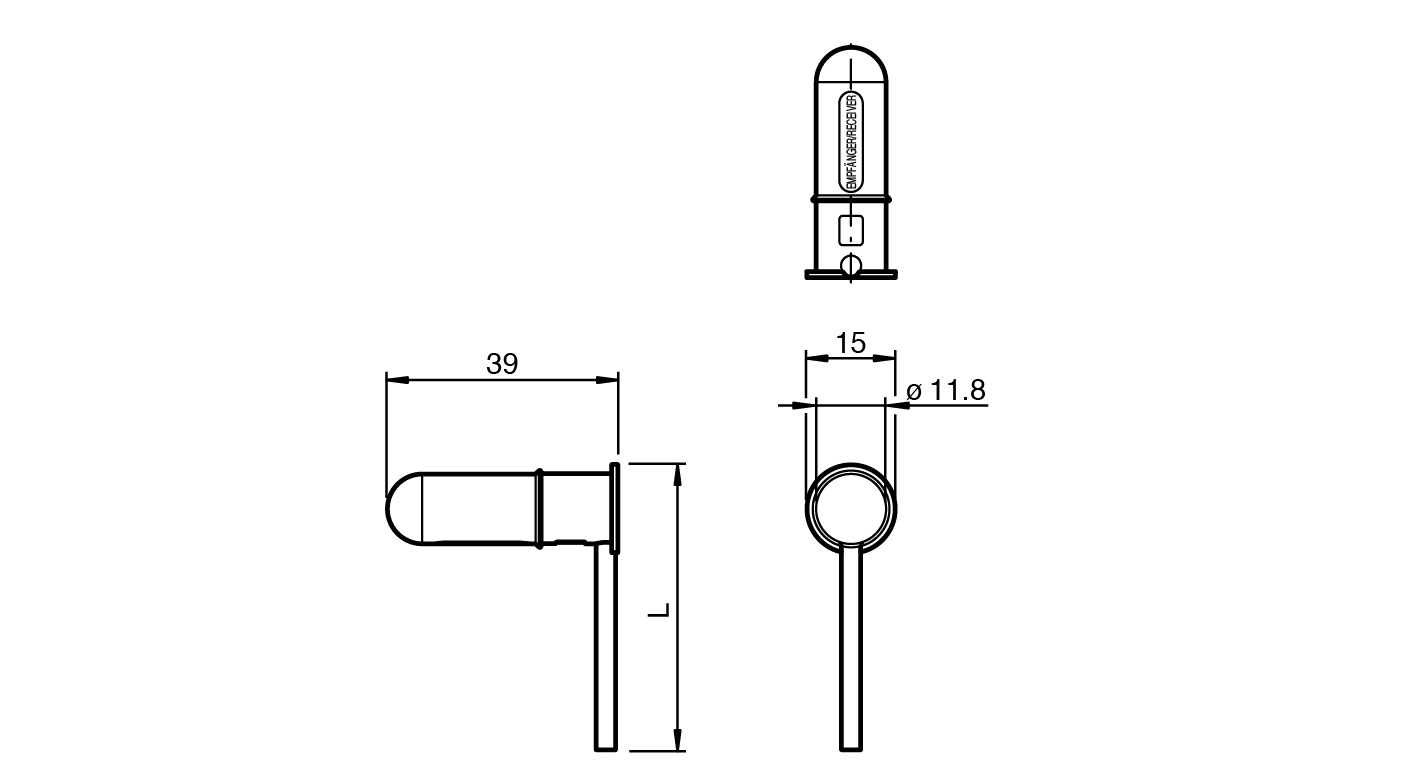

Dimensions: Length	39 mm
Dimensions: Diameter	12 mm
