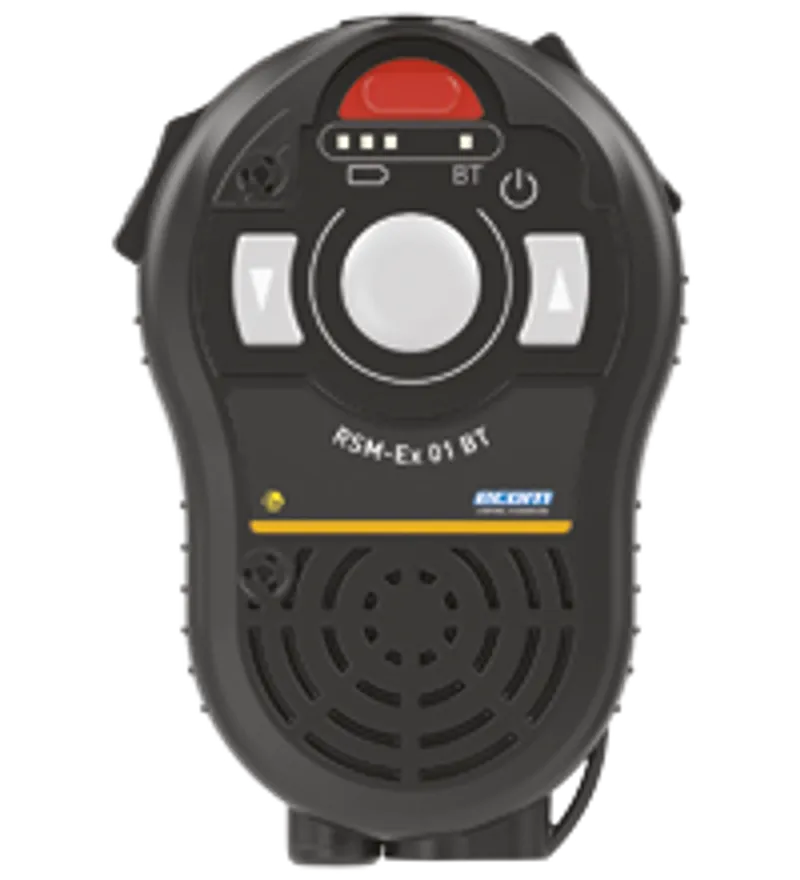

Remote Speaker Microphone RSM-EX01B..-D2NAM-1BBL...ST — photo 1 of 2

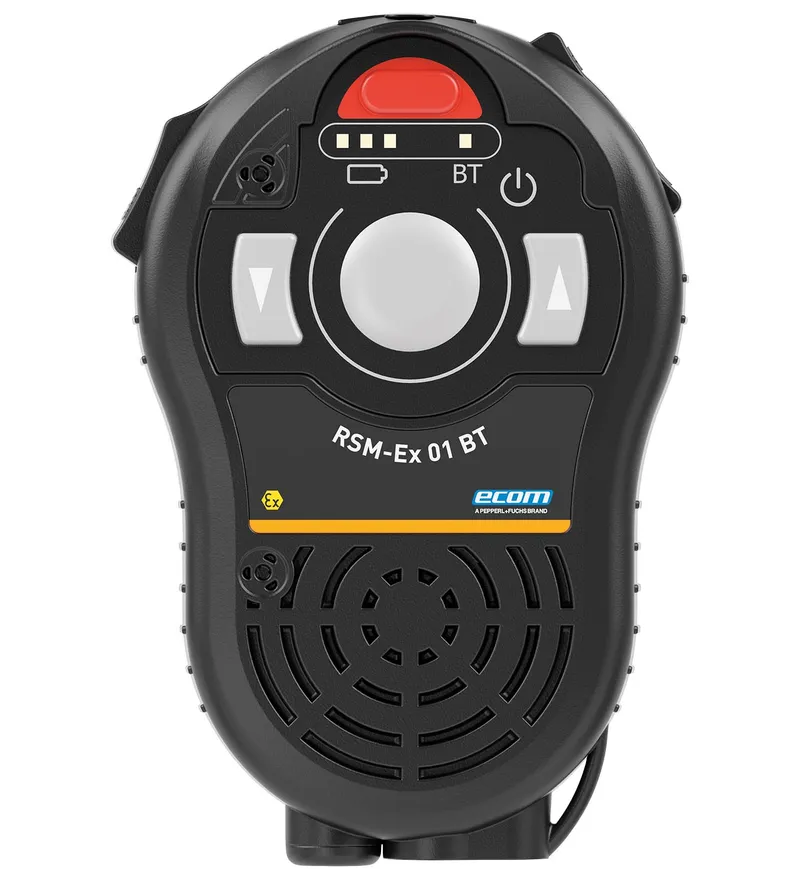

Remote Speaker Microphone RSM-EX01B..-D2NAM-1BBL...ST — photo 2 of 2

Available on request

Pepperl Fuchs RSM-EX01B..-D2NAM-1BBL...ST – Remote Speaker Microphone

MPN: RSM-EX01B..-D2NAM-1BBL...ST · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Remote Speaker Microphones
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can RSM-EX01B..-D2NAM-1BBL...ST be shipped?

RSM-EX01B..-D2NAM-1BBL...ST is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up RSM-EX01B..-D2NAM-1BBL...ST in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for RSM-EX01B..-D2NAM-1BBL...ST and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RSM-EX01B..-D2NAM-1BBL...ST, subject to availability and destination.

• Extremely long operating times with high voice volume – Up to 78 hours

• Outstanding volume and sound performance – Up to 103 dB

• Good operability, even with gloves

• Lone worker ready (optional SOS button)

• Additional multi-functional buttons and a dedicated SOS button

• 2200 mAh Li-ion battery pack for a long operating time

• Linguistic feedback when changing individual modes

• Magnetic charging cable and optional charging cradle

• IoT Ready: "Custom Service Load" allows individual button settings for sending custom commands to servers and other IoT switches - e.g. to open a gate (only for Ex-Handy 10 Series)

RSM-Ex 01, Bluetooth, Division 1, version for Northern America

Specifications

Indicators/operating means

Order code (Pepperl+Fuchs part number)	480984-100021
Key	Push-to-talk button operable with thick gloves Front-facing multi-function button Volume up / down Channel up / down On/Off switch Red Button
Lifecycle	Active (current Pepperl+Fuchs product)

Audio data

Sound level

up to 103 dB

Electrical specifications

Battery type	Li-Ion battery 3.7 V 2200 mAh
Operating duration	Stand-by time: approx. 74 h Actual use/operating time depending on use and set sound level (See table "Run times")

Interface

I/O ports

3.5 mm jack connection

Communication

Bluetooth	yes
NFC	yes

Software

Applications

ECOM Standard

Ambient conditions

Ambient temperature

-20 ... 60 °C (-4 ... 140 °F)

Mechanical specifications

Degree of protection	IP64 according to EN/IEC 60079-0 (ATEX/IECEx) IP 67 following EN/IEC 60529 (industrial standard)
Mass	249 g
Dimensions: W x H x D	8 cm x 12 cm x 2.5 cm Including mounting clip: 8 cm x 12 cm x 3.2 cm
Dimensions: Height	12 cm
Dimensions: Width	8 cm
Dimensions: Depth	2.5 cm

International approvals

SGS approval: SGS certificate	SGSNA/20/SUW/00138X
SGS approval: SGS marking	Cl I, II, II, Division 2, Groups A-G, T4 Cl I Zn 2, AEx ic IIC T4 Gc Cl II Zn 22, AEx ic IIIC T135°C Dc Ex ic IIC T4 Gc Ex ic IIIC T135°C Db Ta = -20 °C to +60 °C, IP 64
IECEx approval: IECEx certificate	IECEx IBE 20.0004X
IECEx approval: IECEx marking	Ex ia IIC T4 Ga Ex ia IIIC T135°C Db IP 64 Ex ia I Ma
Approved for	Northern America
