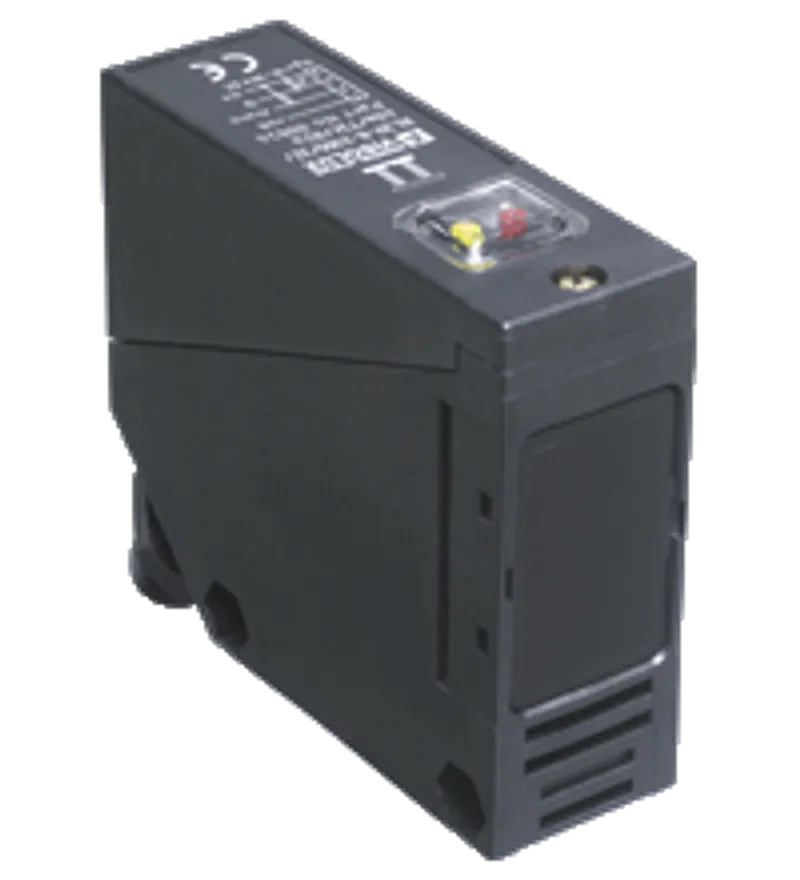

Diffuse mode sensor RL39-8-800/30/40a/116/126a — photo 1 of 3

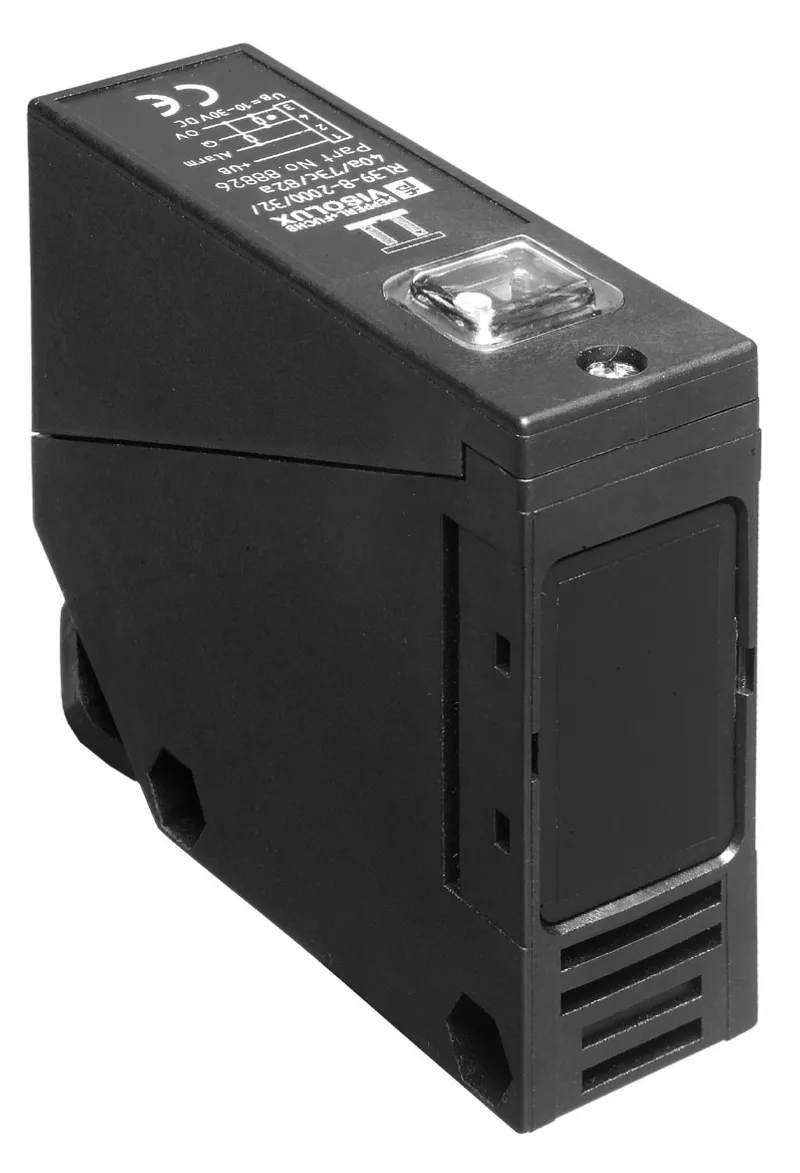

Diffuse mode sensor RL39-8-800/30/40a/116/126a — photo 2 of 3

Diffuse mode sensor RL39-8-800/30/40a/116/126a — photo 3 of 3

Available on request

Pepperl Fuchs RL39-8-800/30/40a/116/126a – Diffuse mode sensor

MPN: RL39-8-800/30/40a/116/126a · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Diffuse Mode Sensors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can RL39-8-800/30/40a/116/126a be shipped?

RL39-8-800/30/40a/116/126a is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up RL39-8-800/30/40a/116/126a in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for RL39-8-800/30/40a/116/126a and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RL39-8-800/30/40a/116/126a, subject to availability and destination.

• Infrared light

• Light-on/dark-on, switchable

• Degree of protection IP54

Infrared light, Light-on/dark-on, switchable, Degree of protection IP54

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	088830
Detection range	0 ... 800 mm
Adjustment range	150 ... 800 mm
Reference target	standard white 200 mm x 200 mm
Light source	IRED
Light type	modulated infrared light
Ambient light limit	IEC / EN 60947-5-2 , 10000 Lux
Lifecycle	Active (current Pepperl+Fuchs product)

Functional safety related parameters

MTTFd	916 a
Mission Time (TM)	20 a
Diagnostic Coverage (DC)	0 %

Indicators/operating means

Function indicator	LED yellow: switching stateLED red: pre-fault indication
Control elements	Sensing range adjuster, light-on/dark-on changeover switch

Electrical specifications

Operating voltage	10 ... 30 V DC UB
Ripple	10 %
No-load supply current	≤ 20 mA I0
Time delay before availability	≤ 300 ms tv

Output

Stability alarm output	1 NPN, active when falling short of operating reserve
Switching type	light/dark on
Signal output	1 NPN output, short-circuit protected, reverse polarity protected, open collector
Switching voltage	max. 30 V DC
Switching current	max. 200 mA , resistive load
Voltage drop	≤ 3 V Ud
Switching frequency	≤ 300 Hz f
Response time	≤ 1.5 ms

Conformity

Product standard

EN 60947-5-2

Approvals and certificates

Approvals

Ambient conditions

Ambient temperature	-25 ... 55 °C (-13 ... 131 °F)
Storage temperature	-40 ... 70 °C (-40 ... 158 °F)

Mechanical specifications

Degree of protection	IP54
Connection	terminal compartment PG9 , ≤ 0.75 mm2
Material: Housing	PBT
Material: Optical face	PMMA
Mass	approx. 100 g
Dimensions: Height	64 mm
Dimensions: Width	25 mm
Dimensions: Depth	75 mm
