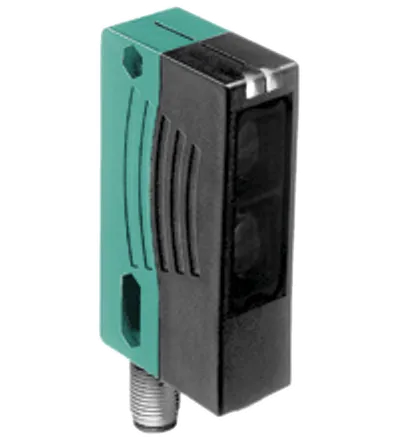

Background suppression sensor RL28-8-H-700-RT/105/110 — photo 1 of 4

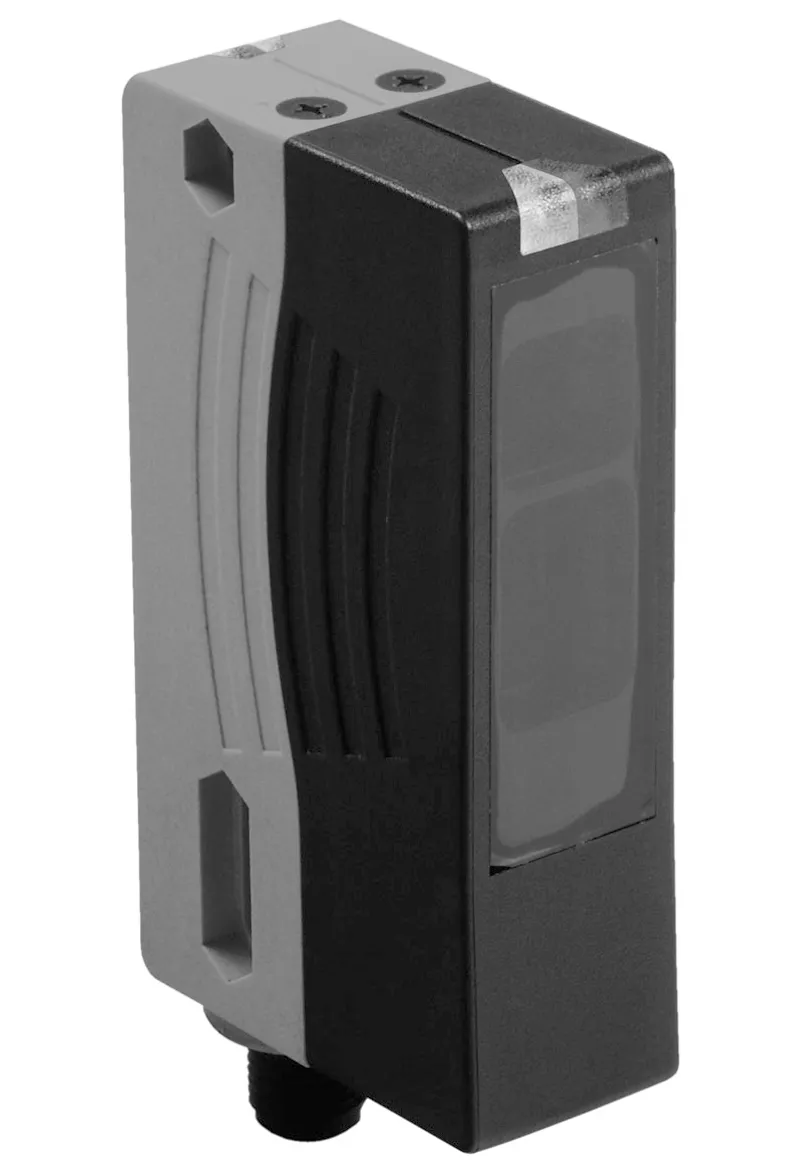

Background suppression sensor RL28-8-H-700-RT/105/110 — photo 2 of 4

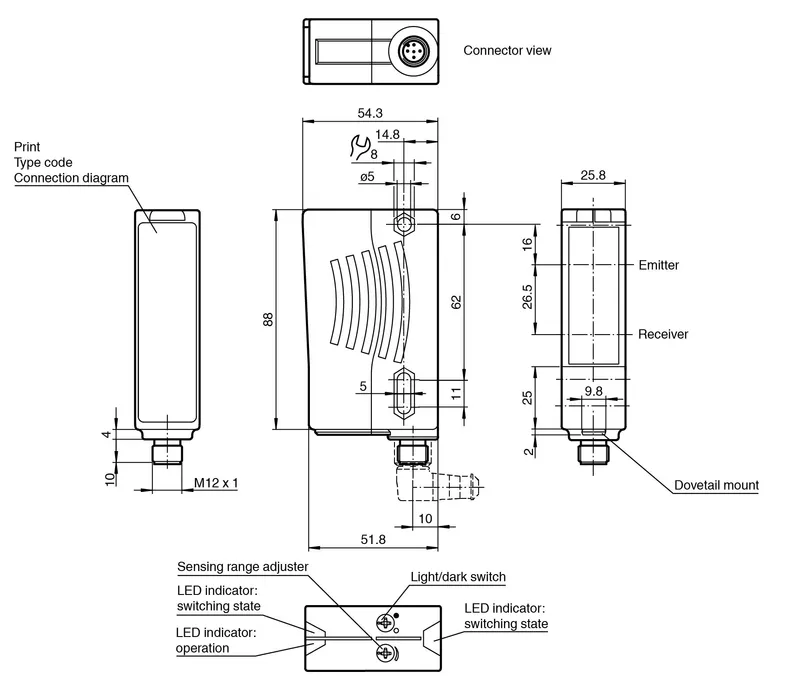

Background suppression sensor RL28-8-H-700-RT/105/110 — photo 3 of 4

Background suppression sensor RL28-8-H-700-RT/105/110 — photo 4 of 4

Available on request

Pepperl Fuchs RL28-8-H-700-RT/105/110 – Background suppression sensor

MPN: RL28-8-H-700-RT/105/110 · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Diffuse Mode Sensors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can RL28-8-H-700-RT/105/110 be shipped?

RL28-8-H-700-RT/105/110 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up RL28-8-H-700-RT/105/110 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for RL28-8-H-700-RT/105/110 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RL28-8-H-700-RT/105/110, subject to availability and destination.

• Ultra bright LEDs for power on and switching state

• Good alignability due to red transmission LED

• Powerful push-pull output

• Not sensitive to ambient light, even with switched energy saving lamps

• Waterproof, degree of protection IP67

• Protection class II

Background suppression sensor, Ultra bright LEDs for power on and switching state, Good alignability due to red transmission LED, Powerful push-pull output, Not sensitive to ambient light, even with switched energy saving lamps, Waterproof, degree of protection IP67

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	419621
Detection range	20 ... 700 mm
Detection range min.	20 ... 200 mm
Detection range max.	20 ... 700 mm
Background suppression	max. + 10 % of the upper limit of the detection range
Light source	LED
Light type	modulated visible red light , 660 nm
Black-white difference (6 %/90 %)	< 20 %
Diameter of the light spot	approx. 15 mm at a distance of 700 mm
Opening angle	Emitter 1.2°, Receiver 2°
Ambient light limit	50000 Lux
Lifecycle	Active (current Pepperl+Fuchs product)

Functional safety related parameters

MTTFd	720 a
Mission Time (TM)	20 a
Diagnostic Coverage (DC)	0 %

Indicators/operating means

Operation indicator	LED green
Function indicator	2 LEDs yellow ON: object inside the scanning range OFF: object outside the scanning range
Control elements	Sensing range adjuster , Light-on/dark-on changeover switch

Electrical specifications

Operating voltage	10 ... 30 V DC UB
Ripple	10 %
No-load supply current	≤ 40 mA I0

Output

Switching type	light/dark on switchable
Signal output	1 push-pull (4 in 1) output, short-circuit protected, reverse polarity protected
Switching voltage	max. 30 V DC
Switching current	max. 100 mA
Switching frequency	250 Hz f
Response time	2 ms

Conformity

Product standard

EN 60947-5-2

Approvals and certificates

UL approval

E87056 , cULus Listed , class 2 power supply , type rating 1

Ambient conditions

Ambient temperature	-40 ... 60 °C (-40 ... 140 °F)
Storage temperature	-40 ... 60 °C (-40 ... 140 °F)

Mechanical specifications

Degree of protection	IP67
Connection	5-pin, M12 x 1 connector
Material: Housing	plastic
Material: Optical face	plastic
Material: Connector	plastic
Mass	70 g
Dimensions: Height	88 mm
Dimensions: Width	25.8 mm
Dimensions: Depth	54.3 mm
