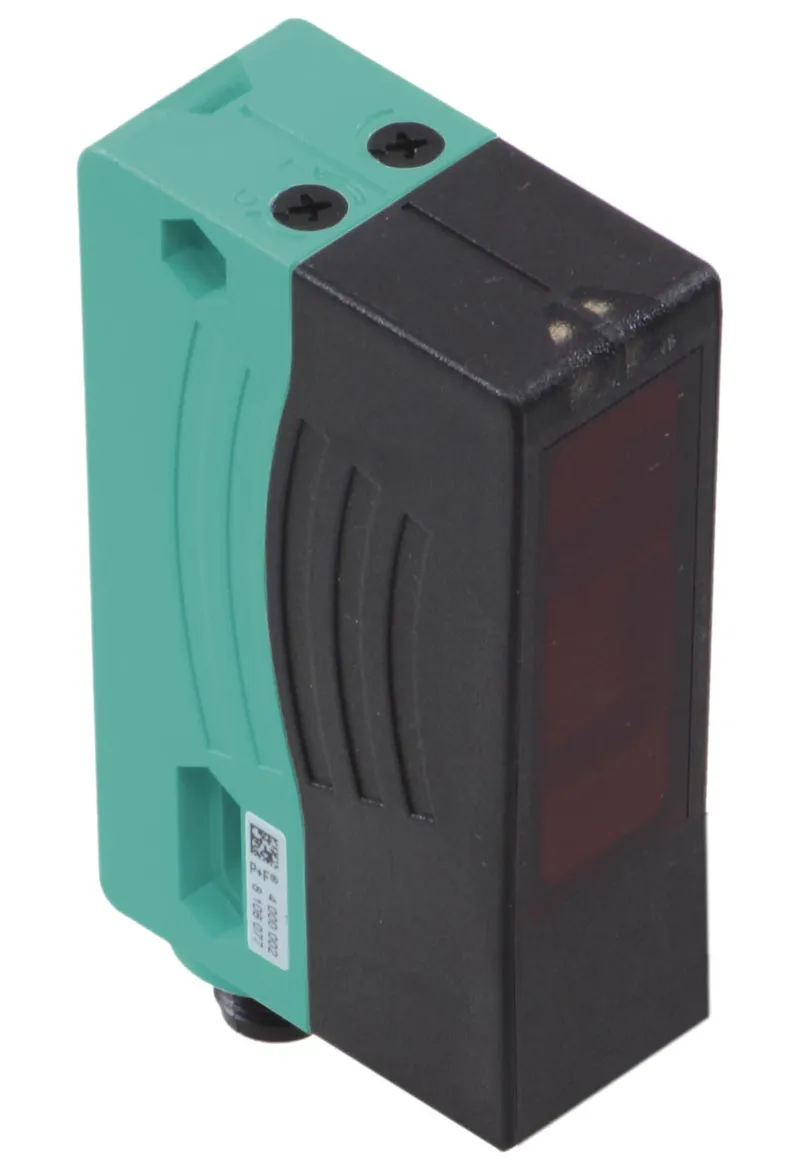

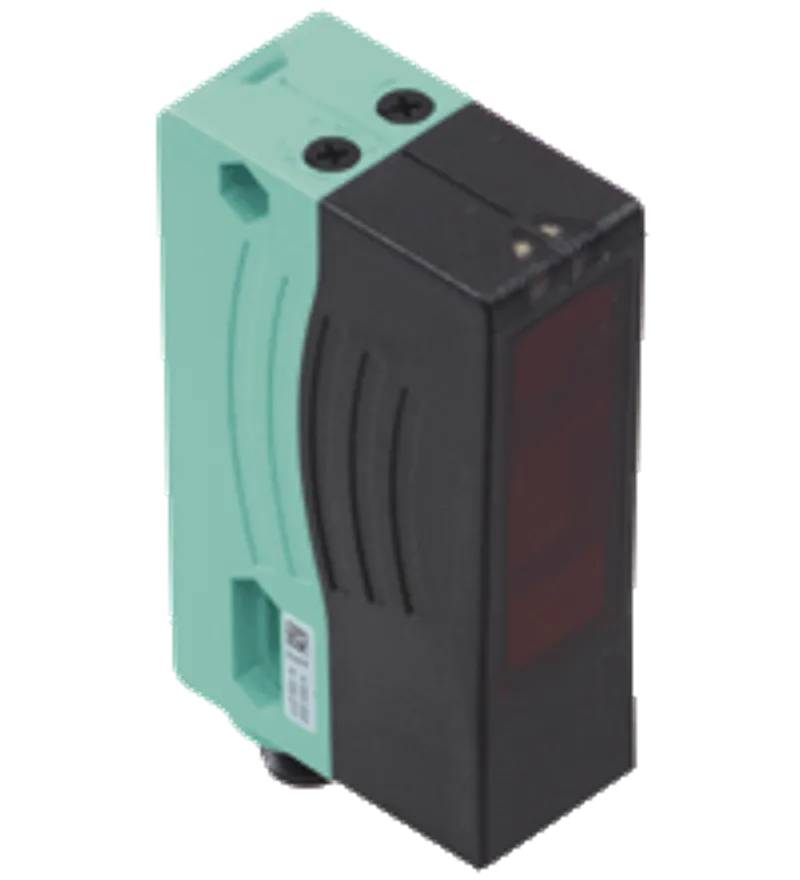

Pepperl Fuchs RL28-8-H-1500-LAS/47/105 – Background suppression sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Diffuse Mode Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can RL28-8-H-1500-LAS/47/105 be shipped?
RL28-8-H-1500-LAS/47/105 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up RL28-8-H-1500-LAS/47/105 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for RL28-8-H-1500-LAS/47/105 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RL28-8-H-1500-LAS/47/105, subject to availability and destination.
• Universal series with highly versatile fields of use
• Resistant against noise: reliable operation under all conditions
• Laser version for long ranges
• Small light beam diameter for detection of small parts
Background suppression sensor, Universal series with highly versatile fields of use, Resistant against noise: reliable operation under all conditions, Laser version for long ranges, Small light beam diameter for detection of small parts
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 180708 |
| Detection range | 100 ... 1500 mm |
| Detection range min. | 50 ... 200 mm |
| Detection range max. | 100 ... 1500 mm |
| Background suppression | max. + 10 % of the upper limit of the detection range |
| Light source | laser diode |
| Light type | modulated visible red light |
| Laser nominal ratings: Note | LASER LIGHT , DO NOT STARE INTO BEAM |
| Laser nominal ratings: Laser class | 1 |
| Laser nominal ratings: Wave length | 650 nm |
| Laser nominal ratings: Beam divergence | < 1.5 mrad |
| Laser nominal ratings: Pulse length | 4.5 µs |
| Laser nominal ratings: Repetition rate | approx. 1.5 kHz |
| Laser nominal ratings: max. pulse energy | 17 nJ |
| Light spot representation | max. 1.5 mm x 4 mm , light spot perpendicular to housing |
| Black-white difference (6 %/90 %) | ≤ 40 % |
| Ambient light limit | 50000 Lux |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| MTTFd | 590 a |
| Mission Time (TM) | 10 a |
| Diagnostic Coverage (DC) | 0 % |
Indicators/operating means
| Operation indicator | LED green |
| Function indicator | 2 LEDs yellow ON: object inside the scanning range OFF: object outside the scanning range |
| Control elements | Sensing range adjuster , Light-on/dark-on changeover switch |
Electrical specifications
| Operating voltage | 10 ... 30 V DC UB |
| Ripple | 10 % |
| No-load supply current | ≤ 40 mA I0 |
| Protection class | II, rated insulation voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1 |
| Time delay before availability | ≤ 2 s tv |
Output
| Switching type | light/dark on, switchable |
| Signal output | 2 PNP outputs, complementary, short-circuit protected, reverse polarity protected, open collector |
| Switching voltage | max. 30 V DC |
| Switching current | max. 200 mA |
| Switching frequency | 140 Hz f |
| Response time | 3.5 ms |
Conformity
| Product standard | EN 60947-5-2 |
| Laser safety | IEC 60825-1:2014 |
Approvals and certificates
| UL approval | E87056 , cULus Listed , class 2 power supply , type rating 1 |
| FDA approval | IEC 60825-1:2014 Complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed. 3 as described in Laser Notice 56, dated May 8, 2019. |
Ambient conditions
| Ambient temperature | -10 ... 50 °C (14 ... 122 °F) |
| Storage temperature | -40 ... 60 °C (-40 ... 140 °F) |
Mechanical specifications
| Degree of protection | IP67 |
| Connection | 5-pin, M12 x 1 plastic connector |
| Material: Housing | plastic |
| Material: Optical face | Plastic pane |
| Mass | approx. 70 g |
| Dimensions: Height | 88 mm |
| Dimensions: Width | 25.8 mm |
| Dimensions: Depth | 54.3 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet RL28-8-H-1500-LAS/47/105 | |
| Instruction Manual | PDF · 150 kB |

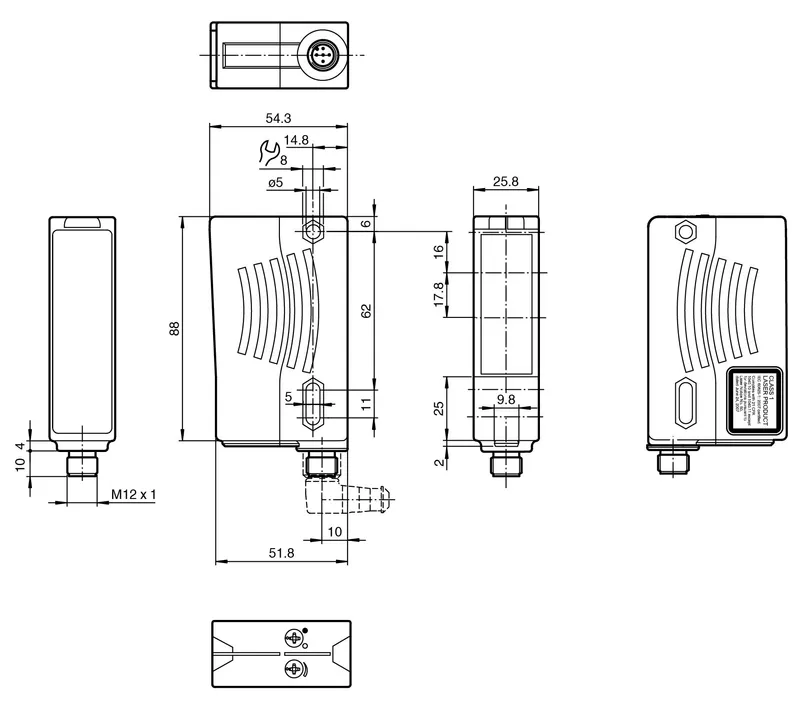

CAD & dimension drawings
| 3-D model (STEP) RL28-8-H-700-IR/47/105/106 | STP · 149 kB |
| EPLAN macro RL28-8-H-1500-LAS/47/105 | EDZ · 69 kB |
